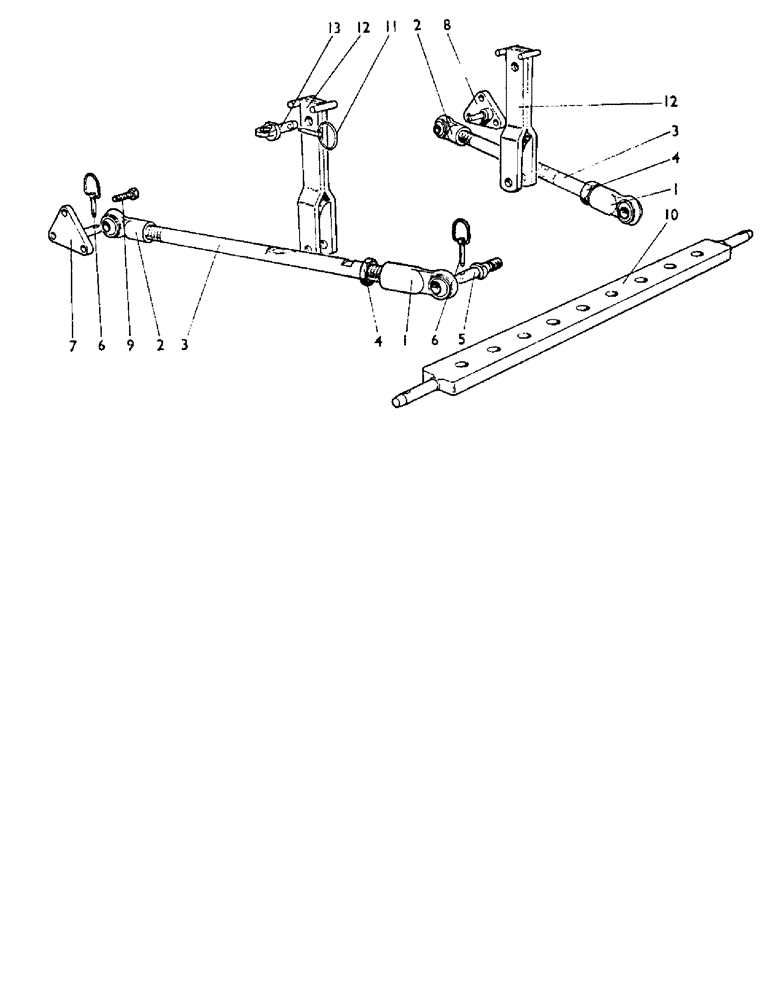

Запчасти Case IH 880A (065) - U1181, TWO-BAR SET, STABILISER BARS, U743, RIGHT-HAND, OPTIONAL EQUIPMENT, U742, LEFT-HAND (07) - HYDRAULIC SYSTEM

K912766

STABILIZER

- assembly

1шт.

1

K901821

BALL

- housing--rear 912766

1шт.

2

K901818

PIVOT

- ball housing--front 912766

1шт.

3

K901815

SCREW,21-1/4mm

SCRWE - bar 912766

1шт.

4

K11569

NUT

LOCKNUT - 1 in. BSF 912766

1шт.

5

K907008

PIN

- large, lower link

2шт.

280954

NUT,3/4"-10, G5

- 3/4 UNC

2шт.

K19486

WASHER, LOCK

WASHER - lock, spring, 3/4 in.

2шт.

6

K920359

PIN

- linch and ring (replaces 900139)

2шт.

K915133

SPARE PART

BRACKET - high clearance

2шт.

7

K915143

PLATE

- bracket, left-hand part of U742

1шт.

8

K915142

PLATE

- bracket, right-hand part of U743

1шт.

9

K603107

BOLT,1/2" x 1 3/8"

- set 1/2 UNC x 1 3/8 in. brackets to final drive

3шт.

K19484

LOCK WASHER

WASHER - lock, spring, 1/2 in. brackets to final drive

3шт.

10

K902280

LINKAGE

- drawbar (U765) (optional equip.)

1шт.

11

K915678

PIN

- linch and ring, linkage drawbar (U765) optional equip.

2шт.

12

K916441

ROD

- lift extension, linkage drawbar (U765) optional eqip.

2шт.

13

K915680

LARGE PIN

PIN - large, link, 3/4 x 3 7/16 in., drawbar (U765) optional equip.

2шт.
