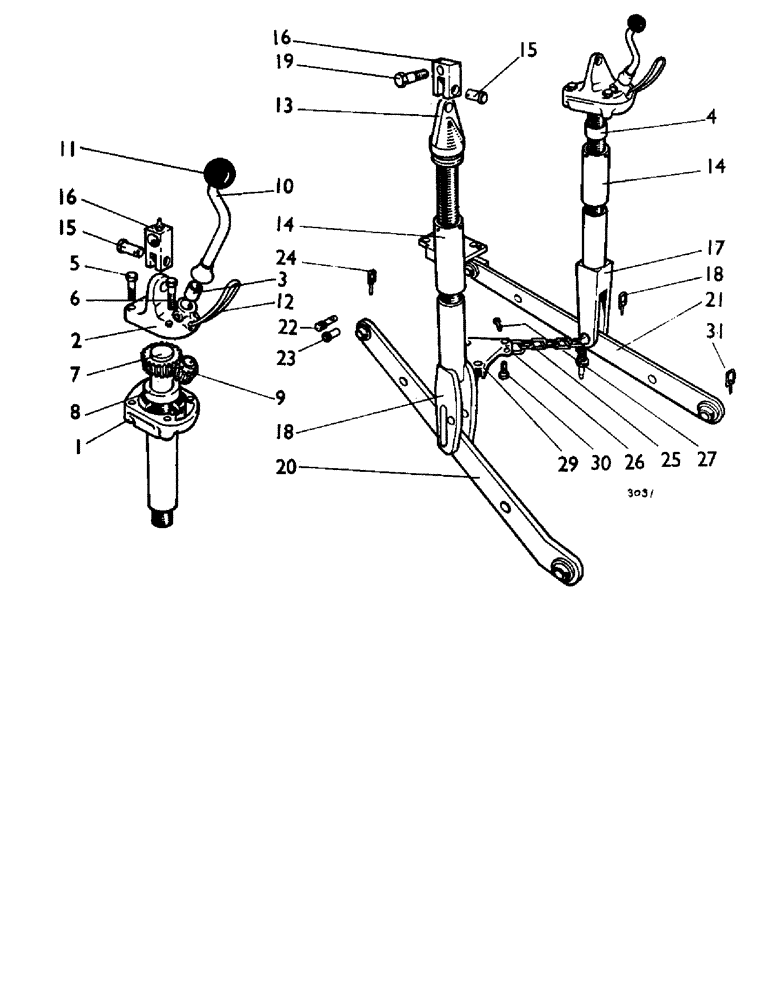

Запчасти Case IH 880A (062) - LIFT RODS AND LOWER LINKS (07) - HYDRAULIC SYSTEM

K929332

NO LONGER SERVICED

LEVER - levelling assembly 560388 onward

1шт.

K919760

NO LONGER SERVICED

LEVER - levelling assembly, Serial Range: 551553-560387

1шт.

1

K962690

GEAR - housing (with bush) 929332, 560388 onward

1шт.

1

K962446

GEAR

- housing (with bush and tube) 919760, Serial Range: 551553-560387

1шт.

2

K962691

COVER

- cap--gear housing (with bush) 929332, 560388 onward

1шт.

2

K962445

CAP

- gear housing (with bush and dowels) 919760, Serial Range: 551553-560387

1шт.

3

K621340

BUSHING

- cap 929332 919760, 551553 onward

1шт.

4

K621339

BUSHING

- housing 929332 919760, 551553 onward

1шт.

5

K600405

BOLT

3/8 UNC x 1 5/8 in. cap to gear housing 929332 919760, 551553 onward

2шт.

6

K600407

BOLT

3/8 UNC x 1 7/8 in. cap to gear housing 929332 919760, 551553 onward

2шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in. cap to gear housing 929332 919760, 551553 onward

4шт.

K32063

PIN

- dowel, 3/16 x 1/2 in. cap to gear housing 929332 919760, 551553 onward

2шт.

7

K919770

SHAFT

- levelling screw 929332 919760 551553 onward

1шт.

8

K19187

THRUST BEARING

BEARING - thrust 929332 919760 551553 onward

1шт.

9

K919769

GEAR

- bevel pinion 929332 919760 551553 onward

1шт.

K623741

SPRING

- pin, 5/32 x 3/4 in. 929332, 551553 onward 919760

1шт.

10

K919761

LEVER

- hand and knob 929332 919760 551553 onward

1шт.

11

K919763

BUTTON

- knob 929332 919760 551553 onward

1шт.

K621790

RING, SNAP

SNAP RING - circlip, 1/2 in. ext. 929332 919760 551553 onward

1шт.

12

K924723

SPRING

- latch 929332 919760 551553 onward

1шт.

K924752

NO LONGER SERVICED

ROD - lift assembly 551553 onward

1шт.

13

K962444

ROD

- adjusting screw 924752 551553 onward

1шт.

14

K915853

TUBE

- outer 924752 551553 onward

1шт.

15

K928907

NO LONGER SERVICED

PIN - pivot 924752 551553 onward

1шт.

K623740

SPLIT PIN/SAFETY PIN

SPLIT PIN - safety and spring, 3/16 x 7/8 in. 924752 551553 onward

1шт.

16

K921914

FORK

- end 924752 551553 onward

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 924752 551553 onward 1/4"-28 NPT x .54" lg

1шт.

17

K915767

SPINDLE

- adjusting nut 924752 551553 onward

1шт.

K919619

NO LONGER SERVICED

LEVER - levelling assembly, 530001 to 551552 (supersedes 915775)

1шт.

K962172

HOUSING

- gear (with bushes and tubes) 919619 (s.s. 961952), Serial Range: 530001-551552

1шт.

K621340

BUSHING

- 962172 919619, Serial Range: 530001-551552

1шт.

K621339

BUSHING

- 962172 919619, Serial Range: 530001-551552

1шт.

K962171

NO LONGER SERVICED

CAP - gear housing (with bushes), 530001 to 551552 919619 (s.s. 902185)

1шт.

K691363

BUSHING

- tension 962171 919619, Serial Range: 530001-551552

1шт.

K621340

BUSHING

- 962171 919619, Serial Range: 530001-551552

1шт.

K603005

SCREW

SETSCREW - 7/16 UNC x 1 1/4 in., 530001 to 551552 919619 (replaces 602904)

3шт.

K19483

SPRING WASHER

- spring, 7/16 in. 919619, 530001 to 551552 (replaces 19482)

3шт.

K915853

TUBE

- outer 919619, Serial Range: 530001-551552

1шт.

K915772

NO LONGER SERVICED

SCREW - levelling 919619, Serial Range: 530001-551552

1шт.

K11483

BALL

- steel, 3/16 in. 919619, Serial Range: 530001-551552

1шт.

K625128

VALVE SPRING

SPRING - valve, 919619, Serial Range: 530001-551552

1шт.

K19187

THRUST BEARING

BEARING - thrust 919619, Serial Range: 530001-551552

1шт.

K901951

GEAR

- spur pinion 919619, Serial Range: 530001-551552

1шт.

K921232

LEVER

- hand, shield 919619 (s.s., 530001 to 551552 907046)

1шт.

K623741

SPRING

- dowel pin 919619, Serial Range: 530001-551552

1шт.

K901962

PIN

- pivot 919619, Serial Range: 530001-551552

1шт.

K901960

FORK

- end 919619, Serial Range: 530001-551552

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 919619 530001 to 551552 1/4"-28 NPT x .54" lg

3шт.

K915767

SPINDLE

- adjusting nut 919619, Serial Range: 530001-551552

1шт.

K915774

NO LONGER SERVICED

ROD - lift assembly, Serial Range: 530001-551552

1шт.

K961953

NO LONGER SERVICED

SCREW - adjusting 915774, Serial Range: 530001-551552

1шт.

K691363

BUSHING

- tension 915774, Serial Range: 530001-551552

1шт.

K915853

TUBE

- outer 915774 (supersedes, 530001 to 551552 915852)

1шт.

K901962

PIN

- pivot 915774, Serial Range: 530001-551552

1шт.

K901960

FORK

- end 915774, Serial Range: 530001-551552

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 915774 530001 to 551552 1/4"-28 NPT x .54" lg

2шт.

K915767

SPINDLE

- adjusting nut 915774, Serial Range: 530001-551552

1шт.

18

K922087

ROD

- adjusting nut, slotted, left-hand U1077 (918389)

1шт.

K921210

ROD

- adjusting nut, slotted, right-hand U1077 (918389)

1шт.

K19476

WASHER

- 3/4 in. U1077 (918389)

2шт.

19

K601413

BOLT

- 3/4 UNC x 3 3/4 in. lift arm

2шт.

K901963

BUSHING

- lift arm

2шт.

K19476

WASHER

- 3/4 in. lift arm

2шт.

K607446

NUT

- Cleveloc lift arm

2шт.

20

K916627

LINK

- lower, left-hand

1шт.

21

K916627

LINK

- lower, right-hand

1шт.

22

K900054

LINK

- pin

2шт.

23

K900055

BUSHING

2шт.

24

K920359

PIN

- linch, ring (replaces 900139)

2шт.

25

K916633

CHAIN (AG)

CHAIN - agriculture, check

2шт.

26

K907647

STIRRUP

- shackle

2шт.

27

K600409

BOLT

- 3/8 UNC x 2 1/8 in. (replaces 600406)

2шт.

K908097

TUBE

- spacing

2шт.

87016560

JAM NUT,Jam, 3/8"-16, G5

LOCKNUT - 3/8 UNC

4шт.

28

K915678

PIN

- linch, ring

2шт.

29

K914706

BRACKET

- anchor

1шт.

K916941

BRACKET

- anchor, pick-up hitch

1шт.

30

K603040

SCREW

SETSCREW - 7/16 UNC, special

3шт.

31

K62995

NO LONGER SERVICED

PIN - linch, ring

2шт.
