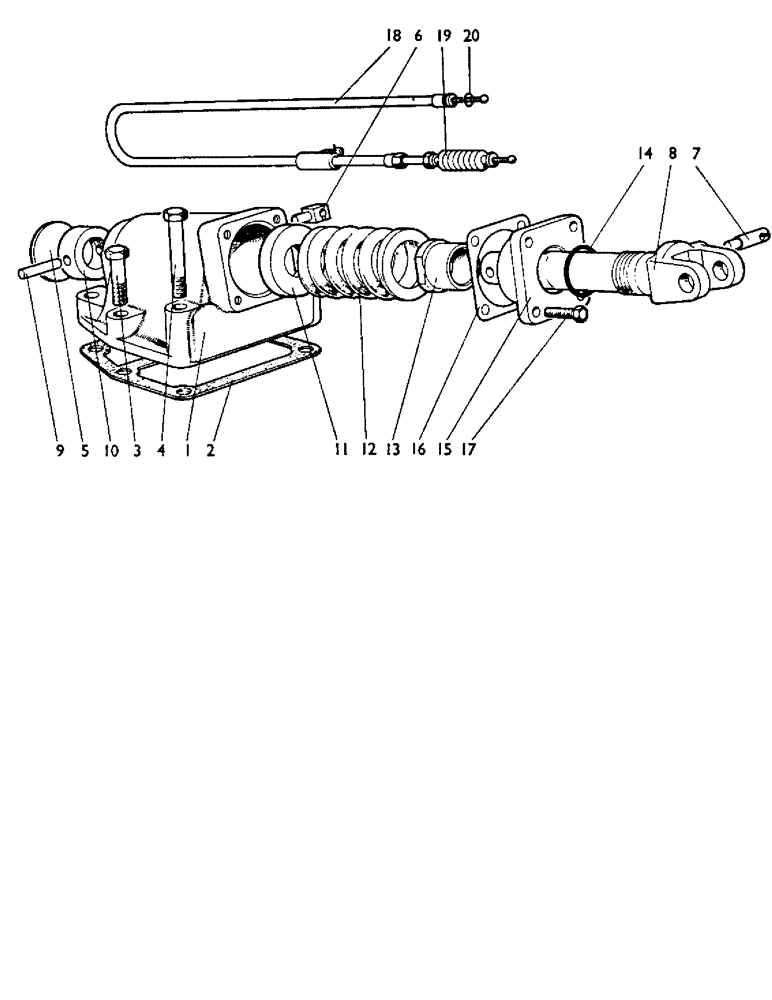

Запчасти Case IH 880A (061) - SENSING UNIT (07) - HYDRAULIC SYSTEM

1

K915092

SPRING

- housing

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

2

K926451

GASKET,0.56mm Thk

- (supersedes 923472)

1шт.

3

K600805

BOLT

- 1/2 UNC x 1 7/8 in.

4шт.

4

K600815

BOLT

- 1/2 UNC x 3 1/4 in.

2шт.

K19484

LOCK WASHER

WASHER - lock, spring, 1/2 in.

6шт.

5

K623813

PLUG

- welch, 2 3/8 in.

1шт.

6

K912371

CABLE

- support--outer

1шт.

7

K913852

LARGE PIN

PIN - large, cable support--inner

1шт.

8

K915258

SHAFT

1шт.

9

K915117

PIN

- retaining

1шт.

10

K915266

COLLAR

1шт.

11

K915101

WASHER

- thrust, .375 in. alternatives

1шт.

11

K915112

WASHER

- thrust, .355 in. alternatives

1шт.

11

K915113

WASHER

- thrust, .365 in. alternatives

1шт.

11

K915114

WASHER

- thrust, .385 in. alternatives

1шт.

11

K915115

WASHER

- thrust, .395 in. alternatives

1шт.

11

K915116

WASHER

- thrust, .405 in. alternatives

1шт.

12

K915263

SPRING

1шт.

13

K915262

SLEEVE

1шт.

14

K623556

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- 1 7/8 in. int. dia.

1шт.

15

K915261

FLANGE

- end plate

1шт.

17

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW - 3/8 UNC x 1 1/8 in.

4шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in.

4шт.

18

K962896

LINK

- cable assembly (supersedes 912373)

1шт.

19

K911970

BOOT

- dirt excluder (supersedes 906182) 962896

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 962896 1/4"-28 NPT x .54" lg

1шт.

20

K690702

O-RING,1.59mm Thk x 6.75mm ID, 80 Duro

- 1/4 in. int. dia. (replaces 14658)

1шт.
