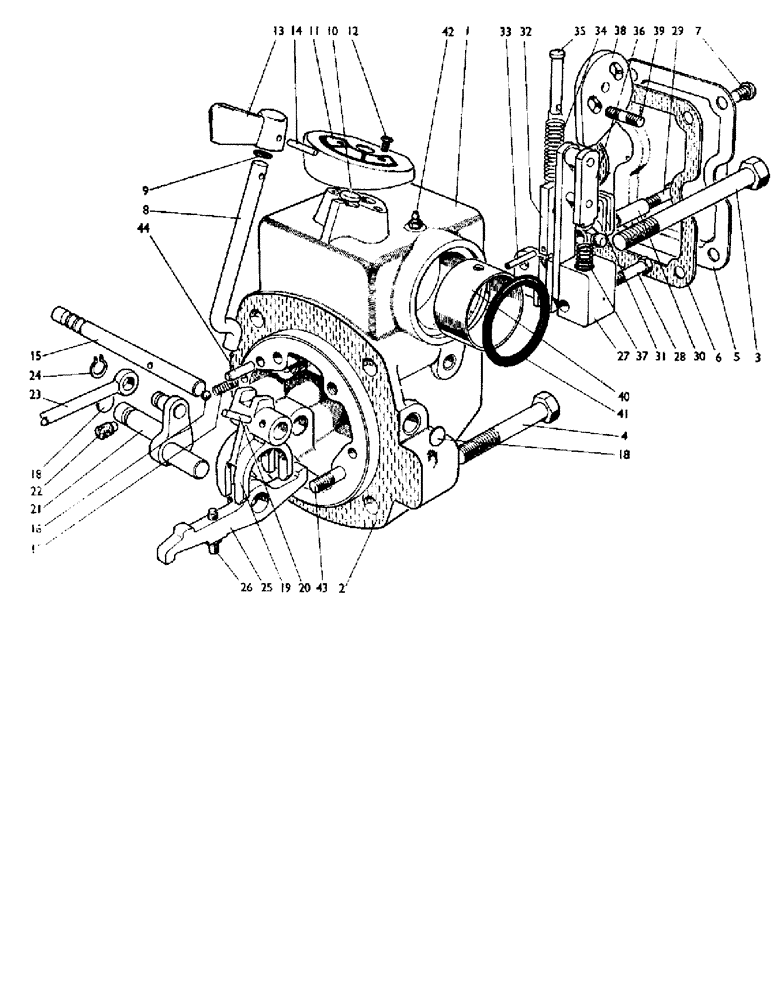

Запчасти Case IH 880A (046) - CONTROL MECHANISM (07) - HYDRAULIC SYSTEM

1

K913003

BRACKET

- ramshaft

1шт.

2

K913141

GASKET

- bracket to axle case

1шт.

3

K600822

BOLT

- 1/2 UNC x 5 in. bracket to axle case

2шт.

4

K600815

BOLT

- 1/2 UNC x 3 1/4 in. bracket to axle case

2шт.

K11518

WASHER

- shakeproof, 1/2 in. bracket to axle case

4шт.

5

K910859

COVER

1шт.

6

K909558

GASKET,1.59mm Thk

-, Serial Range: cover-bracket

1шт.

7

K604477

SCREW

- 5/16 UNC x 5/8 in. cover to bracket (replaces 603943)

4шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in., Serial Range: cover-bracket

4шт.

8

K919363

KNOB

- selector rod (supersedes 913156)

1шт.

9

K24554

O-RING

- 3/8 in. int. dia.

1шт.

10

K923237

SKID/SHOE

SKID - shoe, breather pad (supersedes 915393)

1шт.

11

K909542

WASHER

- selector panel

1шт.

K915179

DECAL

- instruction plate--selector panel

1шт.

12

K614943

SCREW

- No. 10 UNF x 3/8 in. (replaces 614960)

2шт.

13

K910649

KNOB

- pointer

1шт.

14

K623930

SPRING

- pin, 1/8 x 3/4 in.

1шт.

15

K913160

SELECTOR

- shaft

1шт.

16

K17063

BALL

- steel, 1/4 in.

1шт.

17

K24563

SPRING

1шт.

18

K24711

SHIM

- welch plug, 5/8 in.

2шт.

K923284

PLUG

- 9/16 UNF

1шт.

19

K909536

NO LONGER SERVICED

SELECTOR - fork

1шт.

20

K623740

SPLIT PIN/SAFETY PIN

SPLIT PIN - safety and spring, 3/16 x 7/8 in.

1шт.

21

K913119

ROCKER LEVER

LEVER - rocker shaft

1шт.

22

K602750

SCREW

- retaining

1шт.

23

K909585

ROD

- connecting

1шт.

24

K621562

RING, SNAP

SNAP RING - circlip, 3/8 in., ext.

1шт.

25

K913088

ROCKER LEVER

LEVER - rocker

1шт.

26

K909552

SCREW,3/16"

- adjusting, 1/4 UNC 1 3/16

1шт.

K607300

NUT

LOCKNUT - 1/4 UNC (replaces 607050)

1шт.

27

K916362

GUIDE

- bracket

1шт.

28

K600206

BOLT

- 5/16 UNC x 1 5/8 in. guide bracket to ramshaft bracket

1шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in. guide bracket to ramshaft bracket

1шт.

29

K600361

BOLT

- 5/16 UNC x 1 7/8 in. guide bracket to ramshaft bracket (replaces 600208)

1шт.

30

K627019

BUSHING

- guide bracket to ramshaft bracket

1шт.

K19471

WASHER

- 5/16 in. guide bracket to ramshaft bracket

1шт.

31

K913607

LEVER

- actuating

1шт.

K912967

WASHER

- fork end--cable attachment

1шт.

K912968

PIN

- fork end

1шт.

K11934

PIN

- split, 1/16 x 1/2 in.

1шт.

32

K912971

ROD

- push, depth control

1шт.

33

K623973

SPRING

- pin, 3/32 x 9/16 in.

1шт.

34

K624922

SPRING

1шт.

35

K621833

SPRING

- anchor

1шт.

36

K921722

ROD

- push, height control (supersedes 916605)

1шт.

37

K625196

SPRING

1шт.

38

K926095

CAM

- (supersedes 916606)

1шт.

39

K608001

STUD

- 1/4 UNC x 1 1/16 in.

2шт.

K19470

WASHER

- 1/4 in.

2шт.

K607300

NUT

- Nyloc, 1/4 UNC

2шт.

40

K912012

BUSHING

1шт.

41

K623538

O-RING,6.99mm Thk x 50.16mm ID, 60 Duro

- 2 in. int. dia.

1шт.

42

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

43

K608143

STUD

- 5/16 UNC x 1 1/2 in. (replaces 608120)

2шт.

44

K24853

PIN

- dowel

2шт.
