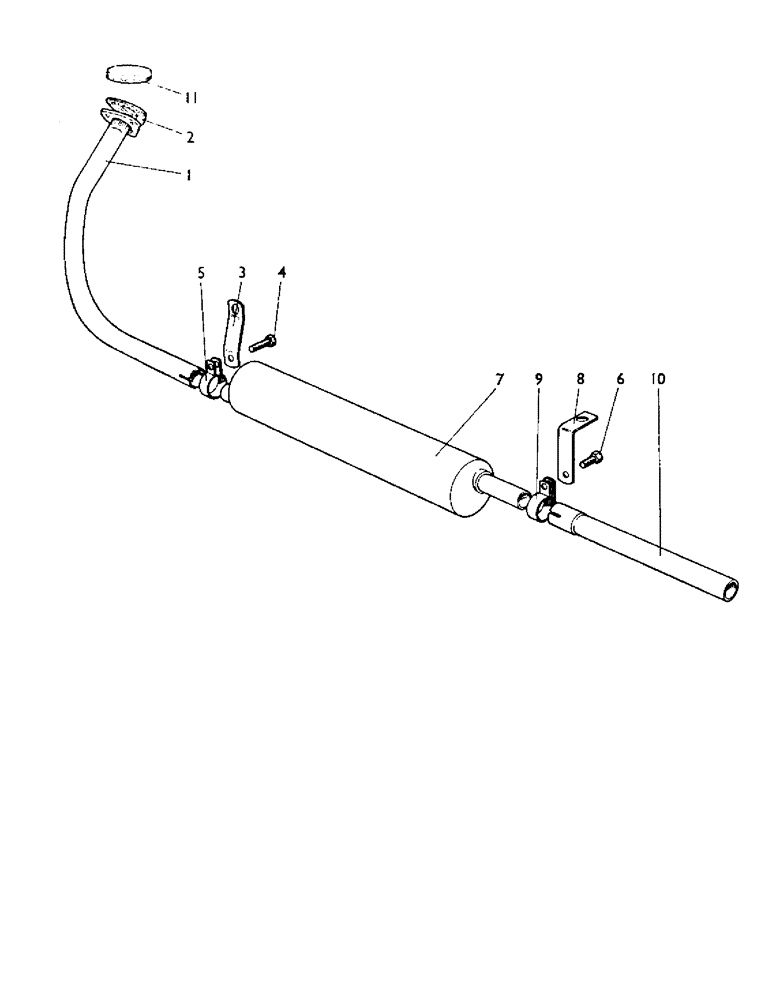

Запчасти Case IH 880A (020) - DOWNSWEPT EXHAUST, U726 (01) - ENGINE

1

K914850

PIPE, EXHAUST SYSTEM

PIPE - exhaust system

1шт.

2

K912441

GASKET

1шт.

280136

NUT,3/8"-16, G8

3шт.

3

K914847

SUPPORT

- strap--front

1шт.

4

K603050

SCREW

SETSCREW - 7/16 UNC x 1 in., Serial Range: strap-frame

1шт.

K626344

WASHER, LOCK

WASHER - lock, spring, 7/16 in., Serial Range: strap-frame

1шт.

5

K914852

CLIP

- 1 11/16 in. dia.

1шт.

6

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW - 5/16 UNC x 3/4 in.

3шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

3шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

3шт.

K626682

WASHER

- 5/16 in.

3шт.

7

K910539

MUFFLER

- silencer

1шт.

8

K914848

SUPPORT

- strap--rear

1шт.

9

K914853

CLIP

- 1 5/8 in. dia.

2шт.

10

K914849

NO LONGER SERVICED

PIPE - tail

1шт.

11

K914347

INSERT

- bonnet

1шт.
