Запчасти Case IH 880A (018) - AIR CLEANER (01) - ENGINE

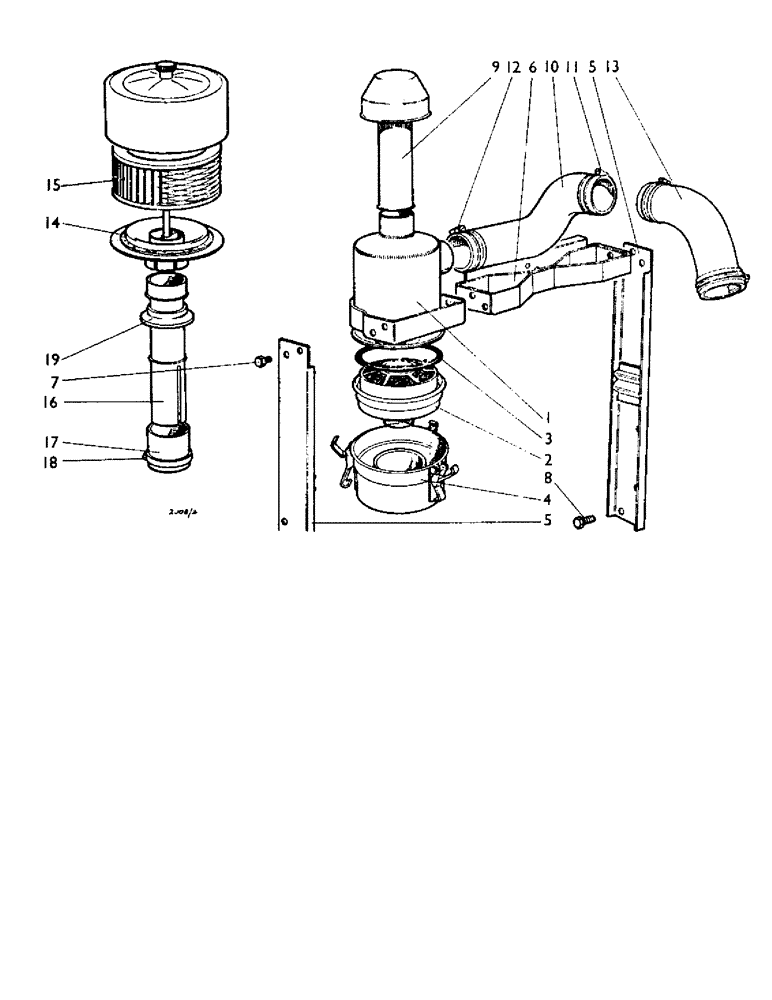

Схема запчастей Case IH 880A - (018) - AIR CLEANER (01) - ENGINE
13
6
1
3
5
19
12
14
4
17
7
9
18
16
15
11
2
8
5
10

Артикул

Название

Примечание

Количество

1

K921492

HOUSING

- air cleaner 545934 onward

1шт.

2

K920813

SCREEN

- lower element 921492

1шт.

4

K920810

NO LONGER SERVICED

BOWL - (with toggle clips) 921492

1шт.

1

K920516

SPARE PART

CLEANER - air (supersedes 917038), Serial Range: 537883-545933

1шт.

2

K900218

FILTER, ELEMENT

FILTER - lower element 920516

1шт.

3

K920519

O-RING

- sealing ring 920516

1шт.

4

K920518

BOWL

- (with toggle clips) 920516

1шт.

1

K917038

NO LONGER SERVICED

CLEANER - air, Serial Range: 530001-537882

1шт.

2

K900218

FILTER, ELEMENT

FILTER - lower element 917038

1шт.

3

K623585

RING

- sealing (supersedes 902981) 917038

2шт.

4

K903432

BOWL - (with toggle clips) 917038

1шт.

5

K917117

STRAP

- support bracket--air cleaner

2шт.

6

K927044

BRACKET

- tie (replaces 917124)

1шт.

7

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 5/8 in.--bracket to air cleaner

6шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in

6шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

6шт.

8

K602803

BOLT

- setscrew, 5/16 UNC x 3/4 in.--bracket to front extension

4шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in

4шт.

9

K917143

CLEANER

PRE-CLEANER

1шт.

10

K924216

PIPE

- air cleaner to radiator 550032 onward

1шт.

10

K917144

LARGE HOSE

HOSE - large, pipe--air cleaner to radiator, Serial Range: 530001-550031

1шт.

11

K13084

CLAMP

- hose clip, 2 5/8 in. int. dia. (replaces 622009)

1шт.

12

K13082

CLAMP

- hose clip, 2 3/8 in. int. dia. (replaces 622007)

3шт.

13

K924667

PIPE

- radiator to manifold 550032 onward

1шт.

13

K912041

HOSE

- pipe--radiator to manifold, Serial Range: 530001-550031

1шт.

K961944

SPARE PART

TRANSFER - air cleaner

1шт.

K962001

DECAL

- transfer--'Negative Earth'

1шт.

K915275

INLET MANIFOLD

PIPE - extension, 32 in., U825 (911809) (air cleaner extension)

1шт.

K917048

SLEEVE

- rubber, U825 (911809) (air cleaner extension)

1шт.

K621933

CLIP

- hose, air cleaner, U825 (911809) (air cleaner extension)

1шт.

K621940

CLIP - hose, extension, U825 (911809) (air cleaner extension)

1шт.

K917010

FLANGE

- dust, U825 (911809) (air cleaner extension)

1шт.

14

K924272

PRECLEANER

PRE-CLEANER - (paper element type), U1159 (918597) (paper element pre-cleaner) (Purolator)

1шт.

15

K922630

AIR FILTER

FILTER- air, element, U1159 (918597) (paper element pre-cleaner)

1шт.

16

K920068

PIPE

- extension, 9 1/2 in., U1159 (918597) (paper element pre-cleaner)

1шт.

17

K917048

SLEEVE

- rubber, U1159 (918597) (paper element pre-cleaner)

1шт.

18

K12755

CLIP

- hose, 2 3/8 in. dia., U1159 (918597) (paper element pre-cleaner)

2шт.

19

K917010

FLANGE

- dust, U1159 (918597) (paper element pre-cleaner)

1шт.

Выбрано товаров: 38
