Запчасти Case IH 880A (012) - INJECTION PUMP AND FUEL SYSTEM (01) - ENGINE

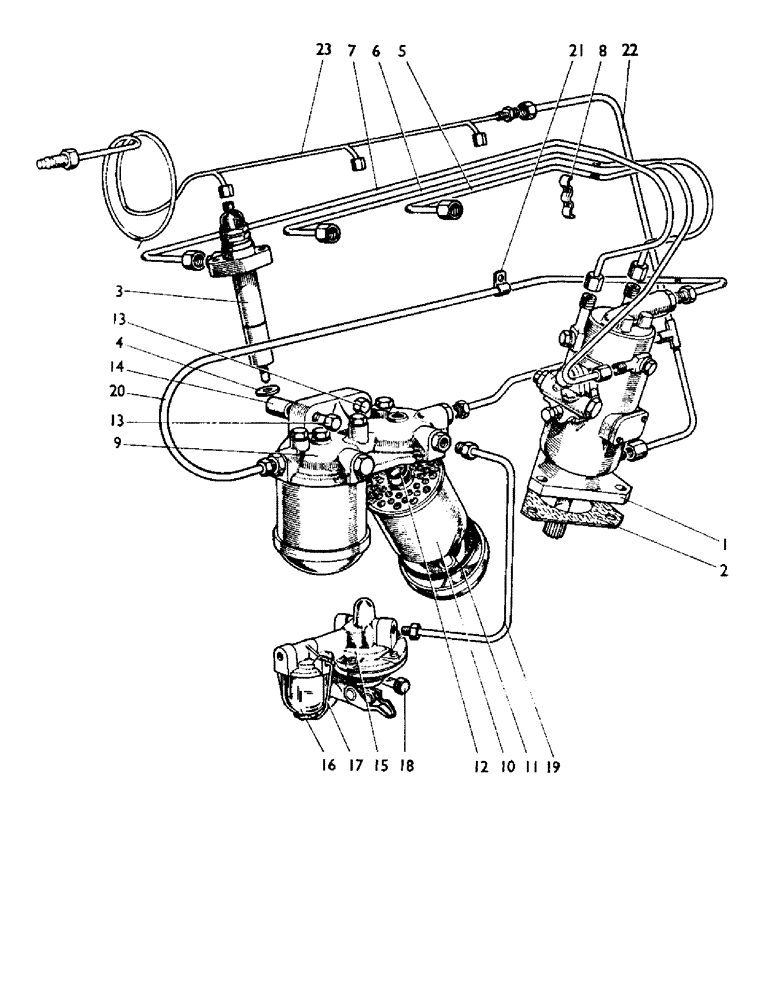

Схема запчастей Case IH 880A - (012) - INJECTION PUMP AND FUEL SYSTEM (01) - ENGINE
17
21
18
3
7
8
22
2
11
10
5
19
4
16
15
1
12
20
13
13
14
6
23
9

Артикул

Название

Примечание

Количество

1

K916784

PUMP

- distributor injection (CAV 3233000)

1шт.

2

K68349

GASKET

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

3шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in

3шт.

K19471

WASHER

- 5/16 in.

3шт.

3

K910530

NOZZLE

INJECTION - injector

3шт.

K904261

NOZZLE CAP

- holder (CAV BKBL 97S5152) 910530

1шт.

K910080

NOZZLE

- (CAV BDLL 140S6417) 910530

1шт.

4

K901092

WASHER

- copper 910530

1шт.

5

K908162

PIPE

- fuel, injection pump to No. 1 cylinder

1шт.

6

K908164

PIPE

- fuel injection pump to No. 2 cylinder

1шт.

7

K908166

PIPE

- fuel injection pump to No. 3 cylinder

1шт.

K900845

NUT

FITTING - union nut--injector pipes

6шт.

K900846

FERRULE

- olive--injector pipes

6шт.

8

K908168

WASHER

- clip injector pipes

2шт.

K12217

SCREW,0.185" x 5/8"

- 2 BA x 5/8 in. injector pipes

2шт.

K11109

NUT

- 2 BA injector pipes

2шт.

K19488

SPRING WASHER

- spring, 3/16 in. injector pipes

2шт.

9

K906708

FILTER

- fuel (complete)

1шт.

10

K960911

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order K960911MP

FILTER - element (CAV) alternatives 906708

2шт.

10

K915319

ELEMENT

- (AC-Delco) alternatives 906708

2шт.

11

K960936

RING

- sealing washer (supplied with, 906708 element)

4шт.

12

K960937

O-RING

- small 906708

2шт.

13

K600409

BOLT

- 3/8 UNC x 2 1/8 in filter to cylinder block

2шт.

K11762

COPPER WASHER

- copper asbestos, 3/8 in. filter to cylinder block

2шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in. filter to cylinder block

2шт.

14

K627041

BUSHING

- distance piece filter to cylinder block

2шт.

15

K908819

PUMP

- fuel feed (AC-Delco E/FP63154/B)

1шт.

K911917

DIAPHRAGM

- 908819

1шт.

K961732

FILTER

- gauze 908819

1шт.

16

K961733

BOWL

- filter 908819

1шт.

K961734

GASKET

- 908819

1шт.

17

K961735

BRACKET

- stirrup and screw 908819

1шт.

K902136

GASKET

- feed pump to cylinder block

1шт.

18

K602807

SCREW

SETSCREW - 5/16 UNC x 1 1/4 in. feed pump to cylinder block

2шт.

K19471

WASHER

- 5/16 in. feed pump to cylinder block

2шт.

K14988

WASHER

- copper asbestos, 5/16 in.

2шт.

K911928

PUSH ROD,9.51mm OD x 35.99mm L

- push, feed pump

1шт.

19

K908169

PIPE,0.25" OD x 5.594, 1.641" L

- fuel, feed pump to filter

1шт.

20

K908171

PIPE,0.25" OD

- fuel, filter to injection pump

1шт.

21

K621619

CLIP

- fuel pipes

1шт.

21

K621646

CLIP

- fuel pipes

1шт.

22

K908173

PIPE

- fuel, filter to leak-off pipe

1шт.

23

K916306

PIPE

- leak-off

1шт.

Выбрано товаров: 44
