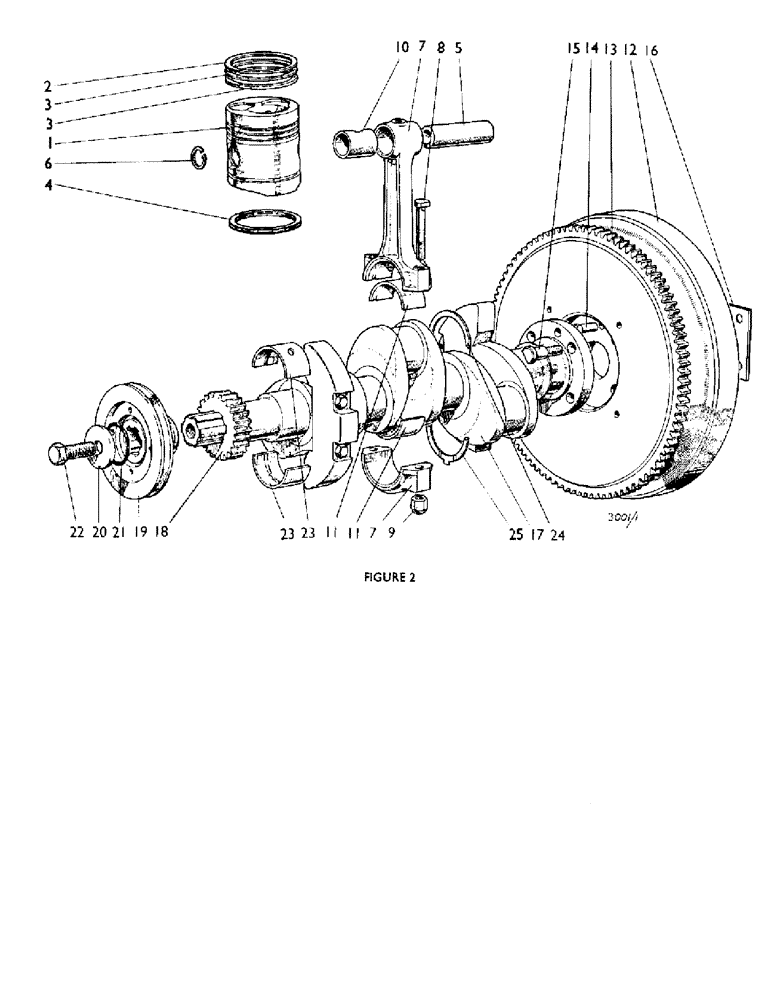

Запчасти Case IH 880A (006) - PISTONS, CONNECTING RODS, FLYWHEEL AND CRANKSHAFT (01) - ENGINE

K921287

SPARE PART

PISTON - gudgeon pin assembly, supersedes 914793 (standard)

3шт.

1

K921288

SPARE PART

PISTON - (not supplied separately) 921287 supersedes 914794

1шт.

2

K915240

NO LONGER SERVICED

PISTON RING - No. 1 compression 921287

1шт.

3

K915241

NO LONGER SERVICED

PISTON RING - Nos. 2 and 3, 921287 compression

2шт.

4

K915242

SCRAPER

- piston ring--scraper 921287

1шт.

5

K904370

PIN

- large, gudgeon 921287

1шт.

6

K34501

RING, SNAP

SNAP RING - circlip, 1 1/4 in. int. 921287

2шт.

7

K80043

ROD, CONNECTING

ROD - connecting, cap assembly (identical with 961721--number change only)

3шт.

8

K905198

BOLT

- 7/8 BSF, special--connecting, 80043 rod

2шт.

9

K15135

NUT

- Nyloc, 7/16 BSF 80043

2шт.

10

K31669

BEARING

BUSHING - small end 80043

1шт.

11

K911904

HALF-BEARING, CRANKS

BEARING - set, big end (halves)

6шт.

12

K910150

FLYWHEEL

- starter ring assembly 880/A

1шт.

12

K907576

SPARE PART

FLYWHEEL - starter ring assembly 880/B

1шт.

K910150

FLYWHEEL

- (not supplied separately) 910150

1шт.

K907576

SPARE PART

FLYWHEEL - (not supplied separately) 907576

1шт.

13

K36134

GEAR

- starter ring 910150 and 907576

1шт.

14

K10629

PIN

- dowel, 1/2 x 15/16 in.

1шт.

15

K903431

STEP BOLT

- 7/16 UNF, special

4шт.

K616968

NUT

- 7/16 UNF (replaces 617003)

4шт.

16

K910883

WASHER

TABWASHER

1шт.

K912323

HOUSING

- locating disc 880/A

1шт.

17

K961726

CRANKSHAFT

- (with bearings and thrust washers)

1шт.

K915423

BOLT

- special balance, Serial Range: weights-crankshaft

4шт.

K626372

WASHER

- tab balance, Serial Range: weights-crankshaft

4шт.

K19167

BALL BEARING,22.23mm ID x 50.8mm OD x 14.29mm W

BEARING - ball

1шт.

18

K907329

GEAR

- crankshaft

1шт.

19

K914836

PULLEY

- crankshaft

1шт.

20

K907328

WASHER

- 5/8 in., special

1шт.

21

K15594

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- 2 in. int. dia.

1шт.

22

K613304

SCREW

- bolt, 5/8 UNF x 1 1/4 in.

1шт.

23

K928540

HALF-BEARING, CRANKS

BEARING - liner, main, upper and lower, standard (replaces 907324/5)

8шт.

24

K928542

SET

- thrust washer--upper (replaces, standard 902023)

2шт.

25

K928543

SET

- thrust washer--lower (replaces, standard 902024)

2шт.

K914837

COUPLING, BREAK AWAY

COUPLING - break away, crankshaft pulley U1291 (925811)

1шт.

K600009

BOLT

- 1/4 UNC x 1 7/8 in. U1291 (925811)

4шт.

K19480

SPRING WASHER

- spring, 1/4 in. U1291 (925811)

4шт.

K914317

COUPLING, BREAK AWAY

COUPLING - break away, driveshaft U1291 (925811)

1шт.

K623555

O-RING,1.396" OD x 0.255" Width

- 1 7/16 in. int. dia. U1291 (925811)

2шт.

K910534

COUPLING, BREAK AWAY

COUPLING - break away, pump U1291 (925811)

1шт.

K627580

BUSHING

- rubber disc, 5/16 in. U1291 (925811)

1шт.

K627581

BUSHING

- rubber disc, 7/16 in. U1291 (925811)

1шт.

K627582

BUSHING

- rubber disc, 9/16 in. U1291 (925811)

1шт.

K910559

PLATE

- U1291 (925811)

1шт.
