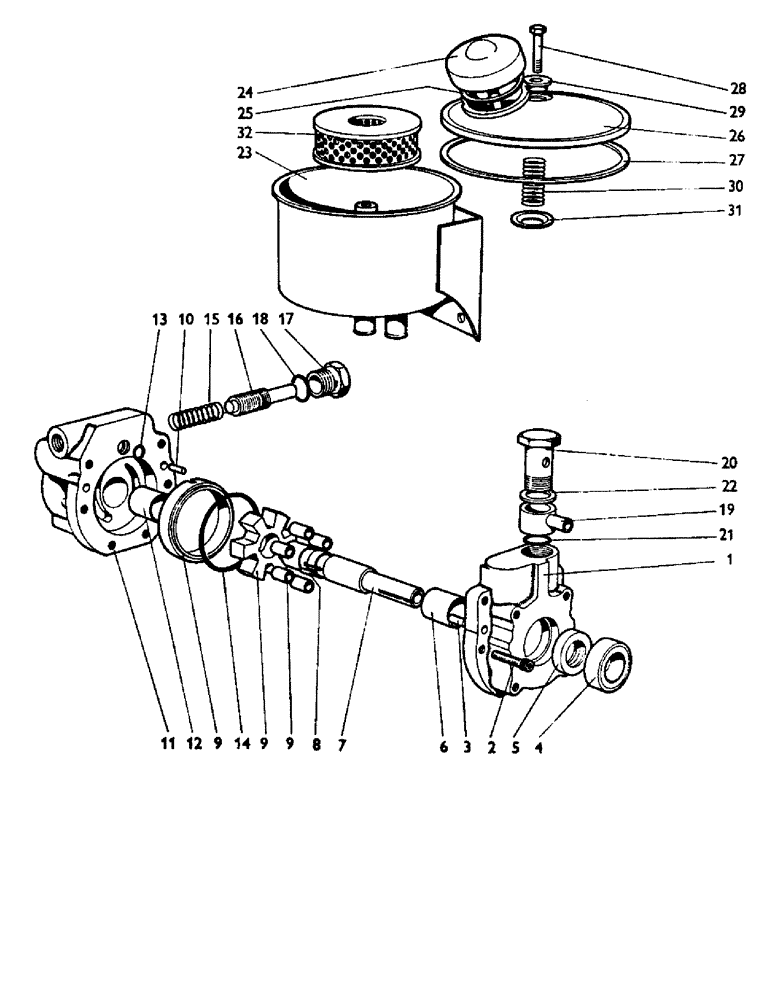

Запчасти Case IH 880A (092) - PUMP AND RESERVOIR, PART OF U599, POWER-ASSISTED STEERING Steering & Front Axle
№
Артикул
Название
Примечание
Количество
K915578
PUMP
- assembly (replaces 916602)
1шт.
1
K961094
COVER ASSY - (with bush) (replaces 962316) 915578
1шт.
2
K961108
BOLT - screw--cover to body 915578
6шт.
3
K961096
DOWEL - pin 915578
2шт.
4
K960754
BEARING
- 915578
1шт.
5
K961093
OIL SEAL
- oil, 3/4 in. int. dia. 915578
1шт.
6
K961092
BUSHING
- cover 915578
1шт.
7
K961109
SHAFT
- bearing 915578
1шт.
8
K960738
DRIVE
- pin--carrier 915578
1шт.
9
K961104
CAM
- carrier and rollers (not supplied separately), 915578
1шт.
10
K961101
CAM
- lock peg, 915578
1шт.
11
K961090
BODY ASSY - (with bush) (replaces 962317) 915578
1шт.
12
K961092
BUSHING
- 915578
1шт.
13
K961102
O-RING
- 3/8 in. int. dia. 915578
1шт.
14
K961103
O-RING
- 2 3/8 in. int. dia. 915578
1шт.
15
K961098
SPRING
- flow control 915578
1шт.
16
K962277
VALVE
- flow control and pressure relief (replaces 962278), 915578
1шт.
17
K961099
PLUG, DRAIN
PLUG - drain, cap--valve (replaces 961618) 915578
1шт.
18
K961100
O-RING
- 5/8 in. int. dia.--cap (replaces 961619), 915578
1шт.
19
K961834
ADAPTER
- banjo--pump inlet 915578
1шт.
20
K961833
BANJO BOLT
- banjo, 13/16 UNF 915578
1шт.
21
K960733
GASKET
- sealing ring, 13/16 in. int. dia. 915578
1шт.
22
K961835
WASHER
- fibre, 25/32 in. 915578
1шт.
23
K919650
RESERVOIR
- assembly
1шт.
24
K960841
CAP
- filler. with dipstick 919650
1шт.
25
K960843
CAP
- sealing ring--filler 919650
1шт.
26
K962193
COVER
- 919650
1шт.
27
K960725
GASKET
- sealing ring, 5 in. int., 919650 dia.--cover
1шт.
28
413-518
BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5
SETSCREW - 5/16 UNC x 1 1/8 in., 919650 special
1шт.
K626682
WASHER
- 919650
1шт.
29
K960723
COVER
- sealing washer, 5/16 in. 919650
1шт.
30
K962190
VALVE SPRING
SPRING - valve, 919650
1шт.
31
K962191
CAP
- element 919650
1шт.
32
K902187
FILTER
- element (identical with 960750--number change only), 919650
1шт.
Выбрано товаров: 34
