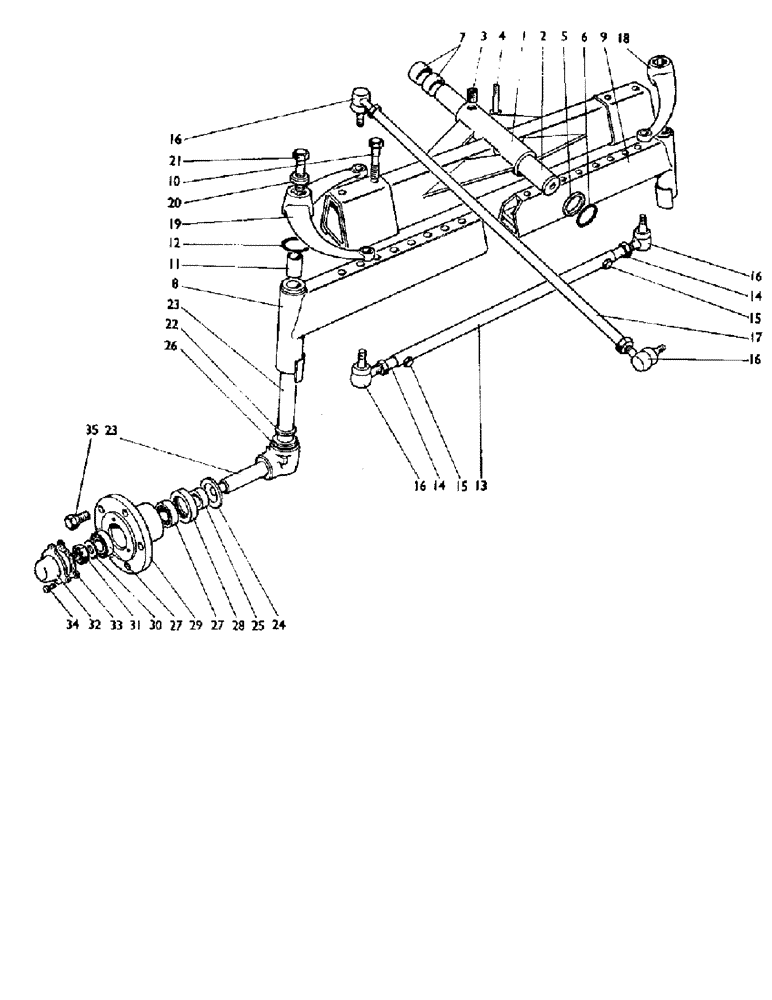

Запчасти Case IH 880A (084) - FRONT AXLE Steering & Front Axle

1

K917439

BEAM

- centre

1шт.

2

K908611

PIN

- trunnion

1шт.

3

K913092

NUT

- screwed bush

1шт.

4

K600508

BOLT

- 3/8 UNC x 2 1/2 in.

1шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in.

1шт.

5

K917440

WASHER

- thrust

2шт.

6

K14508

O-RING,1.975" ID x 2.395" OD x 0.12"

- 1 15/16 in. int. dia.

2шт.

7

K621355

BUSHING

4шт.

8

K961230

BEAM

- extension, left-hand (with bushes), standard clearance

1шт.

8

K961723

EXTENSION

- beam, left-hand (with bushes), high clearance

1шт.

9

K961231

BEAM

- extension, right-hand (with bushes), standard clearance

1шт.

9

K961724

EXTENSION

- beam, right-hand (with bushes), high clearance

1шт.

10

K601308

BOLT

- 3/8 UNC x 3 1/8 in., special

4шт.

K19486

WASHER, LOCK

WASHER - lock, spring, 3/4 in.

4шт.

11

K11598

BUSHING

4шт.

12

K15594

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- 2 in. int. dia.

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

13

K912708

BUSHING

- spacer tube

1шт.

14

K912709

ROD

- track

2шт.

15

K600316

BOLT

- 5/16 UNC x 2 1/4 in.

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

2шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

2шт.

16

K908071

BALL JOINT

- socket assembly

2шт.

K961701

BOOT

- dust excluder (rubber) 908071

4шт.

K622500

LOCK NUT

LOCKNUT - 3/4 in., special 908071

4шт.

K617104

NUT

- slotted, 1/2 UNF 908071

4шт.

K19530

PIN

- split, 3/32 x 1 in.

4шт.

K912076

LINK

- drag assembly (manual steering)

1шт.

17

K909033

DRAG LINK

LINK DRAG - tube 912076

1шт.

16

K908071

BALL JOINT

- socket assembly 912076

2шт.

K913594

LINK

- drag assembly (power-assisted steering)

1шт.

K913592

SPARE PART

LINK - drag tube 913594

1шт.

K908071

BALL JOINT

- socket assembly 913594

1шт.

K913593

LARGE PIN

PIN - large, eye end 913594

1шт.

K622520

NUT

LOCKNUT - 3/4 Whit. 913594

1шт.

18

K912085

LEVER

- steering, right-hand

1шт.

19

K912084

LEVER

- steering, left-hand (manual steering)

1шт.

19

K913924

LEVER

- steering, left-hand (power-assisted steering)

1шт.

20

K15595

WASHER

- special

2шт.

21

K601210

BOLT (SPREADER)

BOLT - spreader, 5/8 UNC x 2 3/4 in.

2шт.

K19485

WASHER

- spring, 5/8 in.

2шт.

22

K33682

WASHER,35.24mm ID x 55.56mm OD x 4.78mm Thk

- thrust

2шт.

23

K961725

SHAFT

- stub axle assembly standard clearance

2шт.

23

K961781

SHAFT

- stub axle assembly high clearance

2шт.

24

K906568

RING

- dirt excluder 961725 961781

2шт.

25

K906569

SLEEVE

- oil seal 961725 961781

2шт.

K972923

SHAFT

- stub axle (with front-wheel brake flange)

2шт.

26

K15594

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- 2 in. int. dia.

2шт.

27

K620046

BEARING

- taper roller

4шт.

28

K15638

NO LONGER SERVICED

SEAL - oil, 2 1/8 x 3 x 1/2 in.

2шт.

29

K910176

HUB

- front

2шт.

K971803

HUB

- front (front-wheel brakes)

2шт.

30

K626673

WASHER

- 3/4 in., special

2шт.

31

K617157

NUT

- slotted, 3/4 UNF

2шт.

K623603

PIN

NUT - split, 11/64 x 1 1/8 in.

2шт.

32

K908913

CAP

CAB - hub

2шт.

33

K15344

GASKET,0.25mm Thk

2шт.

34

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 5/8 in.

6шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

6шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF--Front hub 1/4"-28 NPT x .54" lg

2шт.

35

K907400

WHEEL BOLT,1/2" - 13 x 1 1/8"

- wheel bolt, 1/2 UNC x 1 in.

12шт.

K627939

PLUG

- plastic, 25/32 in.--beam extension holes

6шт.
