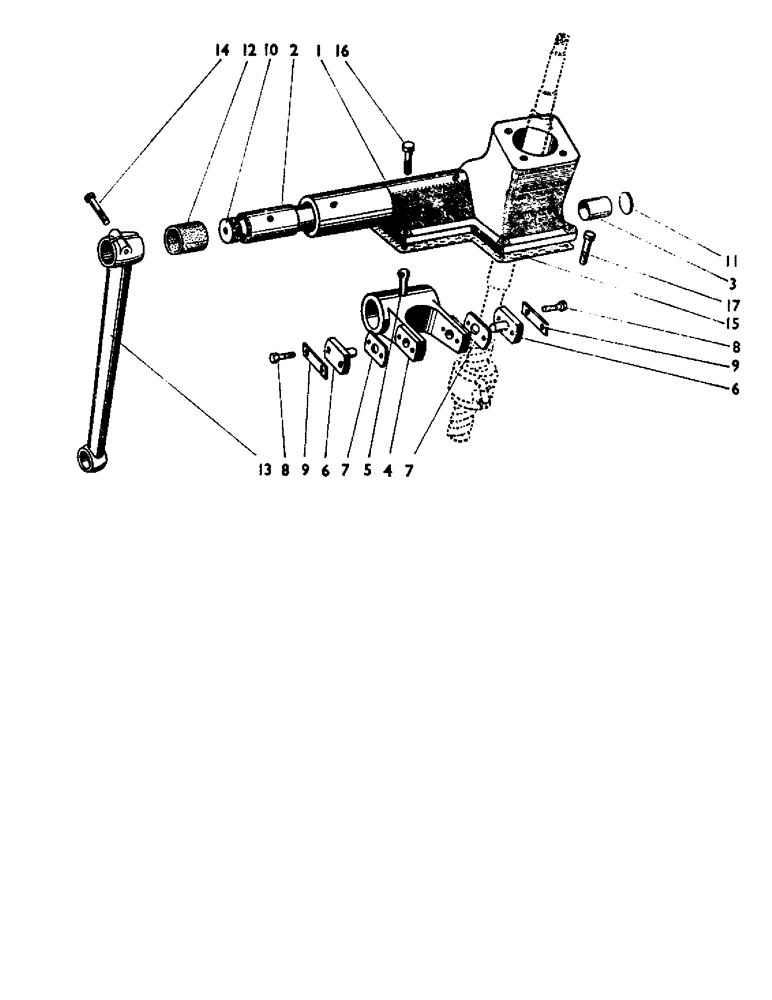

Запчасти Case IH 880A (083) - STEERING BOX AND DROP ARM Steering & Front Axle

1

K962511

HOUSING

- steering box (supersedes 920473)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

3шт.

2

K16561

BUSHING

- long drop arm shaft

2шт.

3

K16560

SPARE PART

BUSH - short drop arm shaft

1шт.

4

K905646

NO LONGER SERVICED

ARM - rocker

1шт.

5

K26232

PIN

- split, 3/16 x 2 1/4 in.

1шт.

6

K912108

BALL

- peg

2шт.

8

K602702

SCREW

SETSCREW - 1/4 UNC x 5/8 in.

4шт.

9

K912109

WASHER

- tab

2шт.

10

K902673

ARM

- drop shaft

1шт.

11

K10050

PLUG

- welch, 1 1/4 in.

1шт.

12

K86963

LARGE HOSE

HOSE - large, dust shield--drop arm shaft

1шт.

13

K901140

ARM

- drop

1шт.

14

K600412

BOLT

- 3/8 UNC x 2 1/2 in. drop, Serial Range: arm-shaft

1шт.

280136

NUT,3/8"-16, G8

Drop arm to shaft 3/8"-16, G8

1шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in. drop, Serial Range: arm-shaft

1шт.

15

K89395

GASKET

- steering box steering box to gearbox cover

1шт.

16

K600412

BOLT

- setscrew, 3/8 UNC x 2 1/2 in., replaces 602904 steering box to gearbox cover

2шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in. steering box to gearbox cover

5шт.

K626521

SEALING WASHER

- washer, 3/8 in. steering box to gearbox cover

1шт.

K622042

RING

- dowel, 17/32 x 1 1/8 in. steering box to gearbox cover

2шт.

17

K600403

BOLT

- 3/8 UNC x 1 3/8 in. steering box to gearbox cover

4шт.
