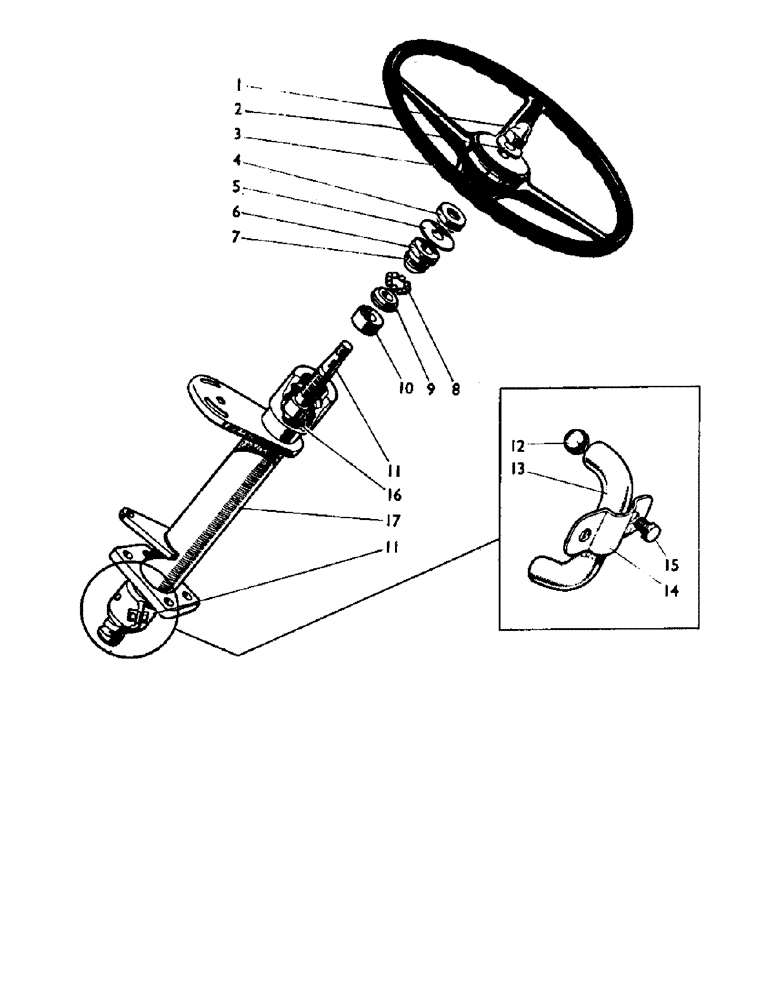

Запчасти Case IH 880A (082) - STEERING WHEEL AND COLUMN Steering & Front Axle

1

K905679

NUT

- domed, 5/8 UNC

1шт.

2

K626671

WASHER

- 5/8 in., special

1шт.

3

K914001

WHEEL

- steering (orchid white)

1шт.

K83746

WHEEL

- steering (black)

1шт.

K19608

KEY

- Woodruff No. 606

1шт.

K923681

SEAL

- dirt excluder

1шт.

K912410

STEERING COLUMN

- assembly

1шт.

4

K924967

NUT

LOCKNUT - (replaces 903467) 912410

1шт.

5

K905189

WASHER

- tab 912410

1шт.

6

K903463

BEARING CONE

CONE - adjustable bearing 912410

1шт.

7

K903468

O-RING,0.156" Thk x 1.234" ID, 75 Duro

- 1 1/4 in. int. dia. 912410

1шт.

8

K13506

BALL

- steel, 3/8 in. dia. 912410

12шт.

9

K903462

SPHERICAL BEARING

BEARING - lower 912410

1шт.

10

K903461

SPACER

- spherical seating 912410

1шт.

11

K912411

KIT

PACKAGE - steering screw and nut 912410

1шт.

K961672

NUT

- steering 912411 912410

1шт.

12

K11286

BALL

- steel, 5/16 in. dia. 912411 912410

28шт.

13

K960990

TUBE NUT

TUBE - transfer (halves) 912411 912410

1шт.

14

K960991

RETAINER

- clip--transfer tube 912411 912410

1шт.

15

K960992

BOLT

- special 912411 912410

2шт.

16

K903469

PAD, RUBBER

PAD - rubber baffle 912410

1шт.

17

K912413

SUPPORT

- column 912410

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF, 912410 1/4"-28 NPT x .54" lg

1шт.

K600602

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

- setscrew, 7/16 UNC x 1 1/2 in. (replaces 603008)

4шт.

K19483

SPRING WASHER

- spring, 7/16 in.

4шт.
