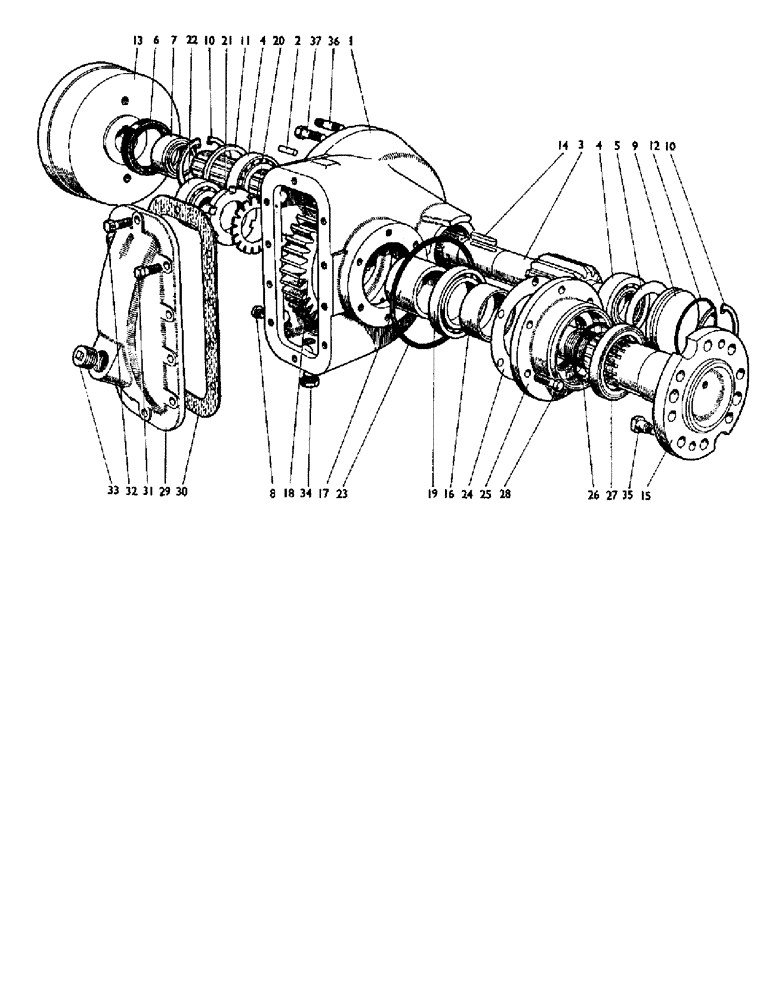

Запчасти Case IH 880A (040) - FINAL DRIVE Final Drive Reductions

K961755

X

DRIVE - final unit--right-hand, 9/50 ratio (complete)

1шт.

K961756

X

DRIVE - final unit--left-hand, 9/50 ratio (complete)

1шт.

K961757

DRIVE - final unit--right-hand, 11/49 ratio (complete)

1шт.

K961758

VALVE, BRAKE

VALVE - brake, final drive unit--left-hand, 11/49 ratio (complete)

1шт.

1

K914071

GEAR

- case, right-hand standard clearance

1шт.

1

K914099

SPARE PART

CASE - right-hand high clearance

1шт.

1

K914072

HOUSING

- case, left-hand standard clearance

1шт.

1

K914098

SPARE PART

CASE - left-hand high clearance

1шт.

2

K11482

PIN

- dowel, 7/16 x 1 1/4 in.

4шт.

3

K907404

PINION

- shaft (9 teeth), left-hand, 9/50 ratio (replaces 907402)

1шт.

3

K911925

GEAR-SET

- pinion shaft (11 teeth), left-hand, 11/49 ratio (replaces 911924)

1шт.

3

K907404

PINION

- shaft (9 teeth), right-hand 9/50 ratio

1шт.

3

K911925

GEAR-SET

- pinion shaft (11 teeth), right-hand 11/49 ratio

1шт.

4

K19186

BEARING, ROLLER

BEARING - taper roller

4шт.

6

K623455

SEAL

- oil, 2 1/2 x 3 1/4 x 3/8 in.

2шт.

7

K907503

COLLAR

2шт.

K15533

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- 1 3/4 in. int. dia.

2шт.

8

K627935

PLUG

- plastic, stabiliser holes

6шт.

9

K907504

COVER

- end

2шт.

10

K13042

RING, SNAP

SNAP RING - circlip, 3 1/4 in., int.

4шт.

11

K904256

SPACER

BUSHING - distance piece

2шт.

12

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- 2 3/4 in. int. dia.

2шт.

13

K905641

BRAKE

- drum

2шт.

14

K19615

KEY

- 11/32 x 1/2 x 2 in.

2шт.

15

K910780

DRIVE SHAFT

DRIVESHAFT - final

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

16

K910781

COLLAR

2шт.

17

K908925

SLEEVE

2шт.

18

K909322

WHEEL

- spur (50 teeth) 9/50 ratio

2шт.

18

K911926

WHEEL

- spur (49 teeth) 11/49 ratio

2шт.

19

K19185

TAPERED BEARING

BEARING - taper roller

2шт.

20

K85355

LOCK WASHER

PLATE - locking, tab washer

2шт.

21

K85359

LOCK NUT

- ring, 2 3/8 in., special

2шт.

22

K19186

BEARING, ROLLER

BEARING - taper roller

2шт.

23

K623537

O-RING,6.475" ID x 7.025" OD x 0.275"

- 6 1/2 in. int. dia.

2шт.

25

K910782

OIL RESERVOIR

- seal housing

2шт.

26

K623536

O-RING

- 3 1/4 in. int. dia.

2шт.

27

K15550

OIL SEAL,80.95mm ID x 108.08mm OD x 15.88mm Thk

- oil, 3 1/4 x 4 1/4 X 5/8 in.

2шт.

28

K600602

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

- 7/16 UNC x 1 1/2 in., Serial Range: housing-case

12шт.

K19483

SPRING WASHER

- spring, 7/16 in., Serial Range: housing-case

12шт.

29

K901556

COVER

2шт.

30

K923221

GASKET,0.51mm Thk

- (replaces 901557)

2шт.

31

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW - 3/8 UNC x 1 1/8 in. cover to case

18шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in., Serial Range: cover-case

20шт.

32

K600502

BOLT

- breather cover to case standard clearance

2шт.

33

K12362

PLUG

- taper, 1 in. BSP--cover standard clearance

2шт.

34

K623825

PLUG

- flanged, 1/2 BSP--case, standard clearance (replaces 24850)

2шт.

K626793

WASHER

- sealing, 7/8 in., standard clearance (replaces 626769)

2шт.

K19591

PLUG

- 1/8 BSP high clearance

2шт.

K623800

BREATHER

- 1/8 BSP high clearance

2шт.

K626521

SEALING WASHER

- washer, 3/8 in. high clearance

2шт.

35

K611266

BOLT

- special, 5/8 UNF wheel centre fixing

16шт.

K617171

WHEEL NUT

- 5/8 UNF wheel centre fixing

16шт.

K921319

ADAPTOR - 5/8 UNF (power adjusted wheels)

16шт.

36

K608406

STUD

- 1/2 UNC x 2 7/8 in. final drive to rear axle

8шт.

37

K600803

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

- 1/2 UNC x 1 5/8 in. final drive to rear axle

12шт.

280431

NUT,1/2"-13, G5

Final drive to rear axle (Replaces 607004) 1/2"-13, G5

8шт.

K626345

LOCK WASHER

WASHER - lock, spring, 1/2 in. final drive to rear axle

20шт.
