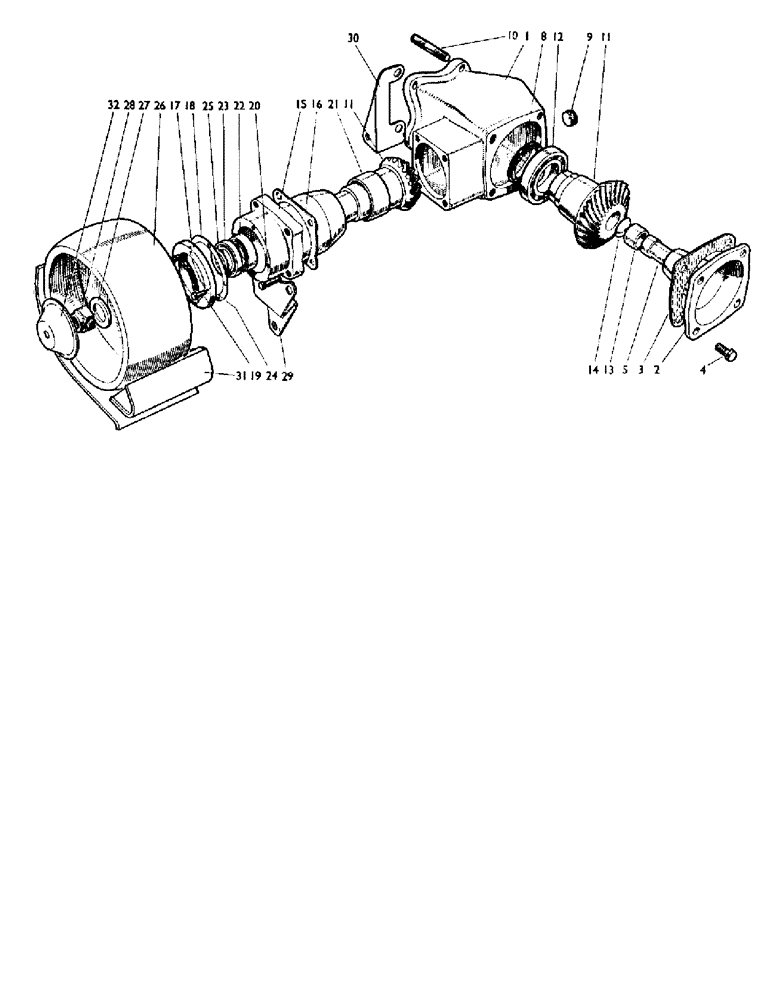

Запчасти Case IH 880A (096) - BELT PULLEY, U413, U440, BELT PULLEY, U413, U440, OPTIONAL EQUIPMENT Auxiliary Drive Units

1

K907533

NO LONGER SERVICED

HOUSING

1шт.

2

K910082

COVER ASSY

- end (with bearing pin)

1шт.

3

K907541

JOINT

- gasket

1шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in.

4шт.

5

K909718

PIN

- bearing

1шт.

8

K16725

SEAL

- oil, 1 3/4 x 2 1/2 x 5/16 in.

1шт.

9

K14518

PLUG

- taper, 3/4 BSP

1шт.

10

K907546

STUD

- 7/16 UNC, special

4шт.

280717

NUT,7/16"-14, G5

4шт.

K626344

WASHER, LOCK

WASHER - lock, spring, 7/16 in.

4шт.

11

K961037

PINION - bevel, wheel

1шт.

12

K620036

BEARING

- ball

1шт.

13

K620047

ROLLER

- needle bearing

1шт.

14

K907520

NO LONGER SERVICED

PLUG - welch, 1 1/2 in. dia.

1шт.

15

K905956

BEARING - housing

1шт.

17

K89205

BEARING

- retainer

1шт.

18

K89206

JOINT

- paper gasket

1шт.

19

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1 in. bearing retainer to bearing housing

4шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in. bearing retainer to bearing housing

4шт.

20

K603006

SCREW

SETSCREW - 7/16 UNC x 1 3/8 in. bearing housing to belt pulley housing

4шт.

K19483

SPRING WASHER

- spring, 7/16 in. bearing housing to belt pulley housing

4шт.

21

K19166

NEEDLE

- roller bearing

1шт.

22

K19165

BALL

- bearing

1шт.

23

K19055

ROLLER

- bearing

1шт.

24

K13709

SEAL

- oil, 1 15/16 x 2 1/2 x 5/16 in.

1шт.

26

K914944

BELT

- pulley, 5 1/8 in. wide U413 (907602)

1шт.

K908588

BELT

- pulley, 8 in. wide U440 (908300)

1шт.

27

K19493

WASHER

- 3/4 in., special

1шт.

28

K617317

NUT

- Nyloc, 3/4 UNF

1шт.

29

K907856

SUPPORT

- bracket--guard U414 (907847)

1шт.

30

K907815

SUPPORT

- bracket--guard U414 (907847)

1шт.

31

K907814

GUARD - belt pulley U414 (907847)

1шт.

K602902

SCREW

SETSCREW - 3/8 UNC x 3/4 in. U414 (907847)

2шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in. U414 (907847)

2шт.

K19472

WASHER

- 3/8 in. U414 (907847)

2шт.

32

K912778

COVER

- pulley nut

1шт.

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

- 1/4 UNC x 5/8 in.

1шт.

K19480

SPRING WASHER

- spring, 1/4 in.

1шт.

K921551

PRODUCT GRAPHIC

- transfer--"For correct belt speed use high PTO gear"

1шт.
