Запчасти Case IH 880 (84) - FRONT WHEELS (12) - CHASSIS

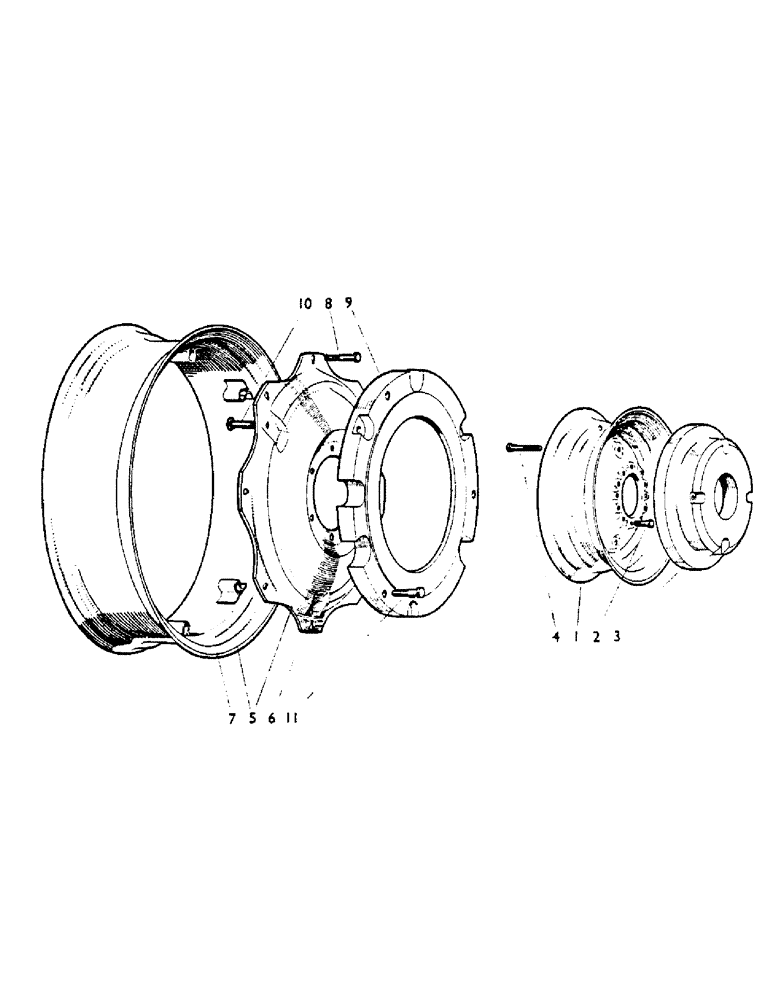

Схема запчастей Case IH 880 - (84) - FRONT WHEELS (12) - CHASSIS
1
5
10
6
11
8
4
2
9
3
7

Артикул

Название

Примечание

Количество

1

K907803

NO LONGER SERVICED

Front Wheel, 4.50E x 16 in. (Fits, Six-Bolt Fixing 6.00 x 16 in. or 5.50 x 16 in. tyres)

2шт.

1

K907430

SPARE PART

Front Wheel, 3.00D x 15 in. (Fits, Six-Bolt Fixing 5.00 x 15 in. tyres)

2шт.

1

K86145

Front Wheel, 4.00E x 16 (Fits 6.00, Five-Bolt Fixing x 16 in. tyres)

2шт.

2

K907400

WHEEL BOLT,1/2" - 13 x 1 1/8"

Wheel Bolt, 1/2 UNC x 1 in.

12шт.

2

K16228

Wheel 5/8 BSF x 1 1/8 in. Five-Bolt Fixing

10шт.

K907006

Ballast Weight U375 (906985) For Wheels 86145

2шт.

K600810

BOLT

1/2 UNC x 2 1/2 in. U375 (906985) For Wheels 86145

8шт.

K19484

LOCK WASHER

Spring Washer, 1/2 in. U375 (906985) For Wheels 86145

8шт.

K607004

NUT

1/2 UNC U375 (906985) For Wheels 86145

8шт.

3

K907893

SPARE PART

Ballast Weight U436 (907954) For Wheels 907803

2шт.

4

K600816

BOLT

1/2 UNC x 3 1/2 in. U436 (907954) For Wheels 907803

8шт.

K19484

LOCK WASHER

Spring Washer, 1/2 in. U436 (907954) For Wheels 907803

8шт.

K607004

NUT

1/2 UNC U436 (907954) For Wheels 907803

8шт.

K907859

Ballast Weight (Internal) U432 (907876) For Wheels 907430

2шт.

K600818

BOLT (SPREADER)

1/2 UNC x 4 in. U432 (907876) For Wheels 907430

8шт.

K19484

LOCK WASHER

Spring Washer, 1/2 in. U432 (907876) For Wheels 907430

8шт.

K607004

NUT

1/2 in. UNC U432 (907876) For Wheels 907430

8шт.

K907783

Locking Strap U432 (907876) For Wheels 907430

8шт.

REAR WHEELS

1шт.

5

K901851

Centre Assembly, W10 x, Six-Bolt Fixing 32 in. (Fits 11 x 32 in. Tyres), REAR WHEELS

2шт.

6

K901853

DISC, WHEEL

Rear Centre 901851

2шт.

7

K901852

WHEEL

Rear Rim 901851

2шт.

8

K611261

BOLT

Rim Bolt 901851, REAR WHEELS

16шт.

K19485

WASHER

Spring , 5/8 in. 901851, REAR WHEELS

16шт.

K19406

WHEEL NUT

5/8 BSF 901851, REAR WHEELS

16шт.

5

K87297

SPARE PART

Rim and Centre Assembly, W11 x, Six-Bolt Fixing 28 in. (Fits 13 x 28 in. tyres), REAR WHEELS

2шт.

6

K86283

SPARE PART

Rear Wheel Centre 87297

2шт.

7

K67980

WHEEL

Rear Rim 87297

2шт.

8

K15471

Rim 5/8 BSF x 2 7/8 in. 87297, REAR WHEELS

12шт.

K19485

WASHER

Spring , 5/8 in. 87297, REAR WHEELS

12шт.

K19406

WHEEL NUT

5/8 BSF 87297, REAR WHEELS

12шт.

5

K907308

NO LONGER SERVICED

Rim and Centre Assembly, W11 x, Eight-Bolt Fixing 28 in. (Fits 12.4/11 x 28 in. tyres), REAR WHEELS

2шт.

6

K905284

WHEEL

Rear Centre 907308

2шт.

7

K67980

WHEEL

Rear Rim 907308

2шт.

8

K611261

BOLT

Rim 5/8 UNF 907308, REAR WHEELS

12шт.

K19475

WASHER

REAR WHEELS, 907308

12шт.

425-1110

NUT,5/8"-18, G5

907308, Rear wheels 5/8"-18, G5

12шт.

5

K906339

RIM

Centre Assembly, W9 x, Eight-Bolt Fixing 28 in. (Fits 10/11 x 28 in. tyres), REAR WHEELS

2шт.

6

K905284

WHEEL

Rear Centre 906339

2шт.

7

K67624

WHEEL

Rear Rim 906339

2шт.

8

K611261

BOLT

Rim , 5/8 UNF 906339, REAR WHEELS

12шт.

K19475

WASHER

906339, REAR WHEELS

12шт.

425-1110

NUT,5/8"-18, G5

906339, Rear wheels 5/8"-18, G5

12шт.

5

K907540

NO LONGER SERVICED

Rim and Centre Assembly, W12 x, Eight-Bolt Fixing 24 in. (Fits 13 x 24 in. tyres), REAR WHEELS

2шт.

6

K907539

WHEEL

Rear Centre 907540

2шт.

7

K907538

NO LONGER SERVICED

Rear Rim 907540

2шт.

8

K611261

BOLT

Rear Rim 5/8 UNF 907540, REAR WHEELS

12шт.

K19475

WASHER

907540, REAR WHEELS

12шт.

425-1110

NUT,5/8"-18, G5

907540, Rear wheels 5/8"-18, G5

12шт.

5

K907826

Rim and Centre Assembly, W9 x, Eight-Bolt Fixing 28 in. (Fits 10 x 28 in. tyres), REAR WHEELS

2шт.

6

K905284

WHEEL

Rear Centre Narrow Models 907826

2шт.

7

K907655

Rear Wheel Rim Narrow Models 907826

2шт.

8

K611263

Rim Bolt, 5/8 UNF Narrow Models 907826, REAR WHEELS

12шт.

K627087

Distance Piece Narrow Models 907826, REAR WHEELS

12шт.

K19475

WASHER

Narrow Models 907826, REAR WHEELS

12шт.

425-1110

NUT,5/8"-18, G5

Narrow Models 907826, Rear wheels 5/8"-18, G5

12шт.

9

K86167

WEIGHT

Ballast U184 (21180) (950 only), REAR WHEELS

4шт.

10

K690452

BOLT

Carriage 5/8 BSF U184 (21180) (950 only), REAR WHEELS

6шт.

K19406

WHEEL NUT

5/8 BSF U184 (21180) (950 only), REAR WHEELS

6шт.

K19485

WASHER

Spring , 5/8 in. U184 (21180) (950 only), REAR WHEELS

6шт.

11

K19305

BOLT

5/8 BSF x 2 in. Weight to, U184 (21180) (950 only) weight, REAR WHEELS

6шт.

K19485

WASHER

Spring , 5/8 in. Weight to, U184 (21180) (950 only) weight, REAR WHEELS

6шт.

9

K907521

Ballast Weight U406 (907207) (Except 950), REAR WHEELS

1шт.

K907522

Special Stud U406 (907207) (Except 950), REAR WHEELS

6шт.

Выбрано товаров: 64
