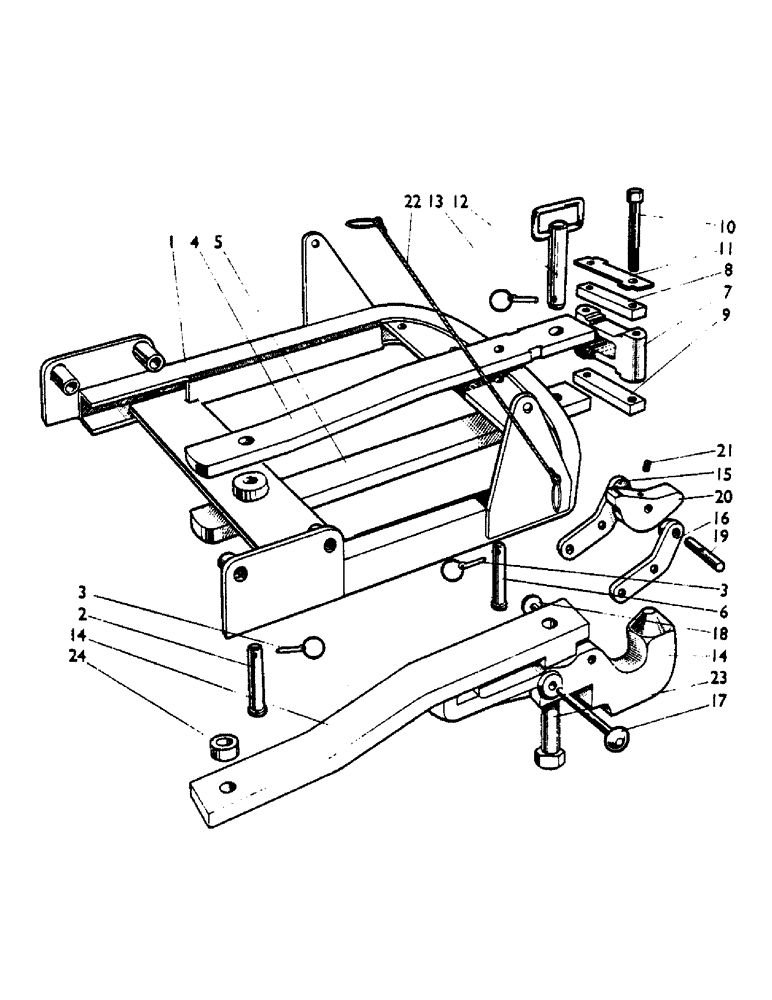

Запчасти Case IH 880 (58) - 907882 SWINGING DRAWBAR, U434, 907881 SWINGING DRAWBAR, U433, 850 AND 880 STANDARD WIDTH MODELS Drawbars & Hitches
№
Артикул
Название
Примечание
Количество
1
K907868
Drawbar Support U434 (907882)
1шт.
2
K907854
U434 (907882)
1шт.
3
K66408
PIN
Linch and Ring U434 (907882)
1шт.
4
K907853
Drawbar Top U433 (907881)
1шт.
5
K905041
Drawbar Bottom U433 (907881)
1шт.
6
K905042
Lateral Control Pin U433 (907881)
1шт.
3
K66408
PIN
Linch and Ring U433 (907881)
1шт.
7
K905046
Locating Block U433 (907881)
1шт.
8
K905045
Clamp Plate--Top U433 (907881)
1шт.
9
K905044
Clamp Plate--Bottom U433 (907881)
1шт.
10
K12781
Bolt, 3/8 BSF x 4 3/4 in. U433 (907881)
2шт.
11
K905048
Tab Washer U433 (907881)
1шт.
12
K905049
Hitch Pin U433 (907881)
1шт.
13
K62995
NO LONGER SERVICED
Linch Pin and Ring U433 (907881)
1шт.
903666 PICK-UP HITCH (U352), 850 & 880 Standard Width Models
1шт.
14
K905539
Tow Bar and Hook, 903666 PICK-UP HITCH (U352), 850 & 880 Standard Width Models
1шт.
15
K905146
Latch Support Bracket, R.H., 903666 PICK-UP HITCH (U352), 850 & 880 Standard Width Models
1шт.
16
K905147
Latch Support Bracket, L.H., 903666 PICK-UP HITCH (U352), 850 & 880 Standard Width Models
1шт.
17
K15526
Rivet, 3/8 x 4 in., 903666 PICK-UP HITCH (U352), 850 & 880 Standard Width Models
1шт.
18
K624012
Rivet, 3/8 x 3 in., 903666 PICK-UP HITCH (U352), 850 & 880 Standard Width Models
1шт.
19
K905145
Pivot Pin--Latch, 903666 PICK-UP HITCH (U352), 850 & 880 Standard Width Models
1шт.
20
K905537
Latch, 903666 PICK-UP HITCH (U352), 850 & 880 Standard Width Models
1шт.
21
K624740
Grub Screw, 1/4 BSF x 3/16 in., 903666 PICK-UP HITCH (U352), 850 & 880 Standard Width Models
1шт.
22
K905750
Cord--Latch Operating, 903666 PICK-UP HITCH (U352), 850 & 880 Standard Width Models
1шт.
23
K905150
Clamp Bolt, 903666 PICK-UP HITCH (U352), 850 & 880 Standard Width Models
1шт.
K623005
NUT
Self-Locking Nut, 5/8 BSF, 903666 PICK-UP HITCH (U352), 850 & 880 Standard Width Models
1шт.
24
K905151
Distance Piece, 903666 PICK-UP HITCH (U352), 850 & 880 Standard Width Models
1шт.
Выбрано товаров: 27
