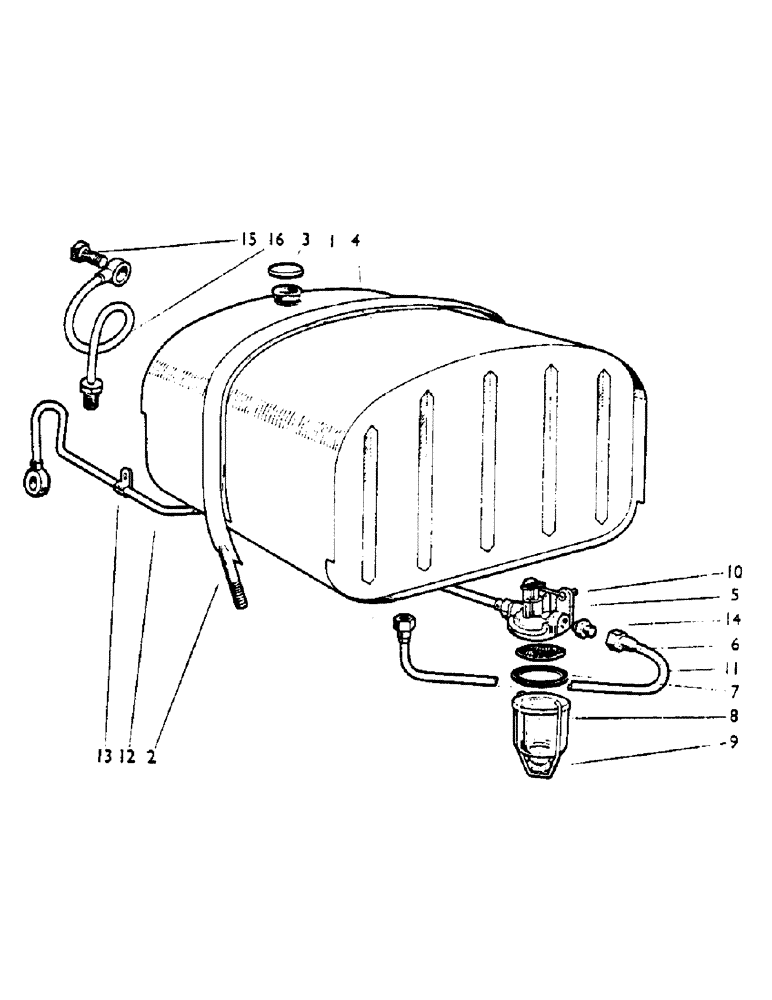

Запчасти Case IH 850 (21) - FUEL TANK AND FITTINGS, ALL MODELS (01) - ENGINE

1

K903925

NO LONGER SERVICED

Fuel Tank 950 only

1шт.

2

K906004

Strap--Tank Fixing 950 only

1шт.

280136

NUT,3/8"-16, G8

950 only 3/8"-16, G8

2шт.

1

K904577

SPARE PART

Fuel Tank Except 950

1шт.

2

K904578

Strap--Tank Fixing Except 950

1шт.

K19403

NUT

3/8 BSF Except 950

2шт.

3

K901983

CAP

Filler Cap

1шт.

4

K17721

PAD

--Tank Strap

1шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in.

2шт.

K67319

BOWL

Fuel Tap and Bowl Assembly

1шт.

5

K89637

SPARE PART

Tap and Bracket 67319

1шт.

6

K89638

STRAINER ELEMENT

Filter Gauze 67319

1шт.

7

K34065

SEAL

Bowl Joint 67319

1шт.

8

K34064

SIGHTGLASS

Filter Bowl 67319

1шт.

9

K89639

GRATE

Stirrup and Screw 67319

1шт.

K900296

Valve 67319

1шт.

K900297

O-RING

Sealing Ring (Tap Spindle) (900296) 67319

1шт.

K900300

Screw--Valve Retaining 67319

1шт.

10

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

Pan Head 1/4 UNC x 5/8 in.

2шт.

K607000

NUT

1/4 UNC

2шт.

K19480

SPRING WASHER

Spring Washer, 1/4 in.

2шт.

11

K901408

, Serial Range: Pipe--Tank-Tap

1шт.

12

K89488

PIPE

--Tap to Feed Pump

1шт.

13

K16368

Pipe Clip

1шт.

14

K12720

ADAPTER

Adaptor

2шт.

15

K86417

NIPPLE, LUBE

Banjo Bolt

1шт.

K36374

WASHER

2шт.

16

K905372

PIPE

--Leak-Off to Tank Except 950

1шт.

16

K902301

Pipe--Leak-Off to Tank 950 only

1шт.
