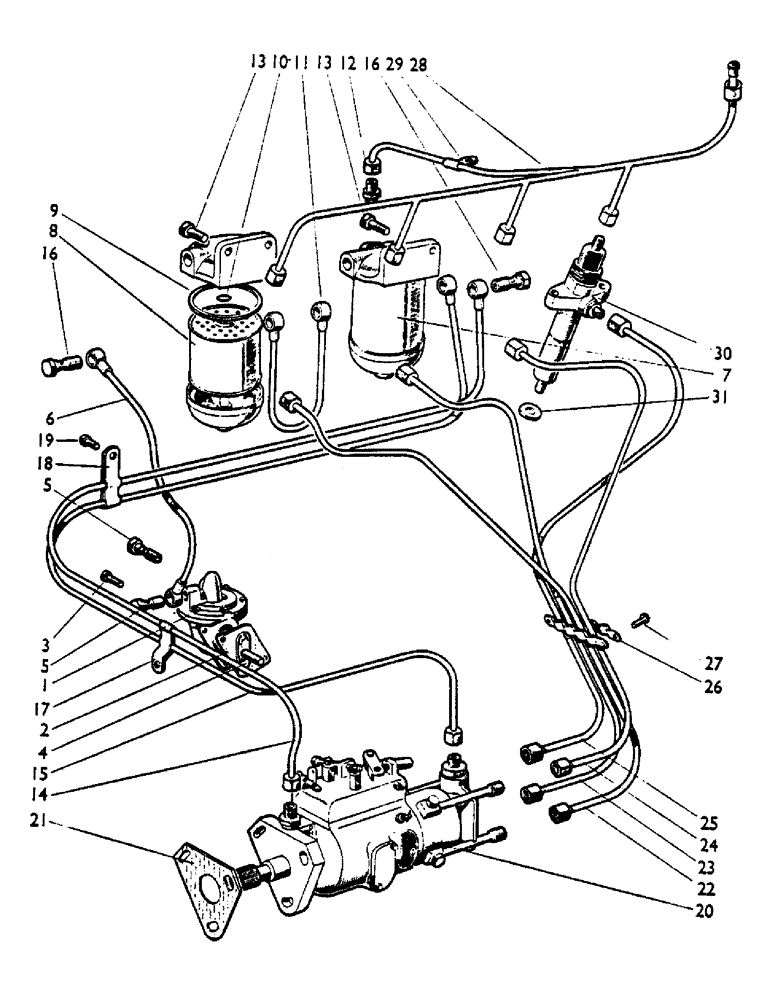

Запчасти Case IH 850 (12) - INJECTION PUMP AND EQUIPMENT, ALL MODELS (01) - ENGINE

1

K902135

PUMP

Fuel Feed Pump

1шт.

K12863

SPARE PART

Diaphragm--Feed Pump

1шт.

K960958

VALVE SPRING

Spring (Green)--Diaphragm

1шт.

2

K902136

GASKET

1шт.

3

K19220

BOLT

5/16 BSF x 3/4 in.

2шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

2шт.

4

K87630

PUSH BUTTON

Push Rod

1шт.

5

K12723

Banjo Bolt Fuel lift pump connections

2шт.

K12716

Washer Fuel lift pump connections

2шт.

K12843

SPARE PART

Washer, 1/4 BSP Fuel lift pump connections

2шт.

6

K903497

Fuel Pipe--Feed Pump to First Filter

1шт.

7

K905218

FILTER

Fuel Filter (Complete)

2шт.

8

K960911

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order K960911MP

Element Part of 905218

2шт.

9

K960936

RING

Sealing Washer (Supplied with Element) Part of 905218

4шт.

10

K960937

O-RING

O Ring--Small Part of 905218

2шт.

11

K903502

PIPE

Fuel, Serial Range: Pipe--Filter-Filter

1шт.

12

K620007

ADAPTER

Adaptor--Leak-Off Pipe

1шт.

K87324

Washer

1шт.

13

K19240

SCREW

Bolt, 3/8 BSF x 7/8 in. Filter to cylinder head

4шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in. Filter to cylinder head

4шт.

14

K902214

X

Fuel Pipe--Injector Pump Drain

1шт.

15

K902212

Fuel Pipe--Filter to Injector Pump

1шт.

16

K88762

NIPPLE, LUBE

Banjo Bolt, 14 mm. Fuel, Serial Range: pipes-filters

5шт.

K66894

Washer Fuel, Serial Range: pipes-filters

10шт.

17

K621607

Clip--Fuel Pipes to Water Pump

1шт.

18

K621611

Clip--Fuel Pipes to Cylinder Head

1шт.

19

K11544

Bolt, 1/4 BSF x 1/2 in.

1шт.

K19480

SPRING WASHER

Spring Washer, 1/4 in.

1шт.

20

K902292

SPARE PART

Distributor Injector Pump 880 and 950

1шт.

K904659

Distributor Injector Pump 850

1шт.

21

K68349

GASKET

--Pump to Carrier Plate

1шт.

22

K902293

LINE

Fuel Pipe--Distributor to No. 1 Cylinder

1шт.

23

K902295

Fuel Pipe--Distributor to No. 2 Cylinder

1шт.

24

K902297

SPARE PART

Fuel Pipe--Distributor to No. 3 Cylinder

1шт.

25

K902299

PIPE

Fuel Pipe--Distributor to No. 4 Cylinder

1шт.

26

K900844

CLAMP

Clip--Fuel Injector Pipes

2шт.

27

K12217

SCREW,0.185" x 5/8"

Rd. Hd., 2 BA x 5/8 in. Clip fixing

2шт.

K11109

NUT

2 BA Clip fixing

2шт.

K19488

SPRING WASHER

Spring Washer, 3/16 in.

2шт.

28

K905219

PIPE

Leak-Off Pipe--Injectors and Filter

1шт.

29

K621610

CLIP

--Filter Leak-Off Pipe

1шт.

30

K904442

SPARE PART

Nozzle and Holder

4шт.

K960987

CYLINDER END CAP

Cap--Injector 904442

4шт.

K902103

NOZZLE INJECTION

Nozzle--Injector 904442

4шт.

31

K901092

WASHER

Injector Washer

4шт.
