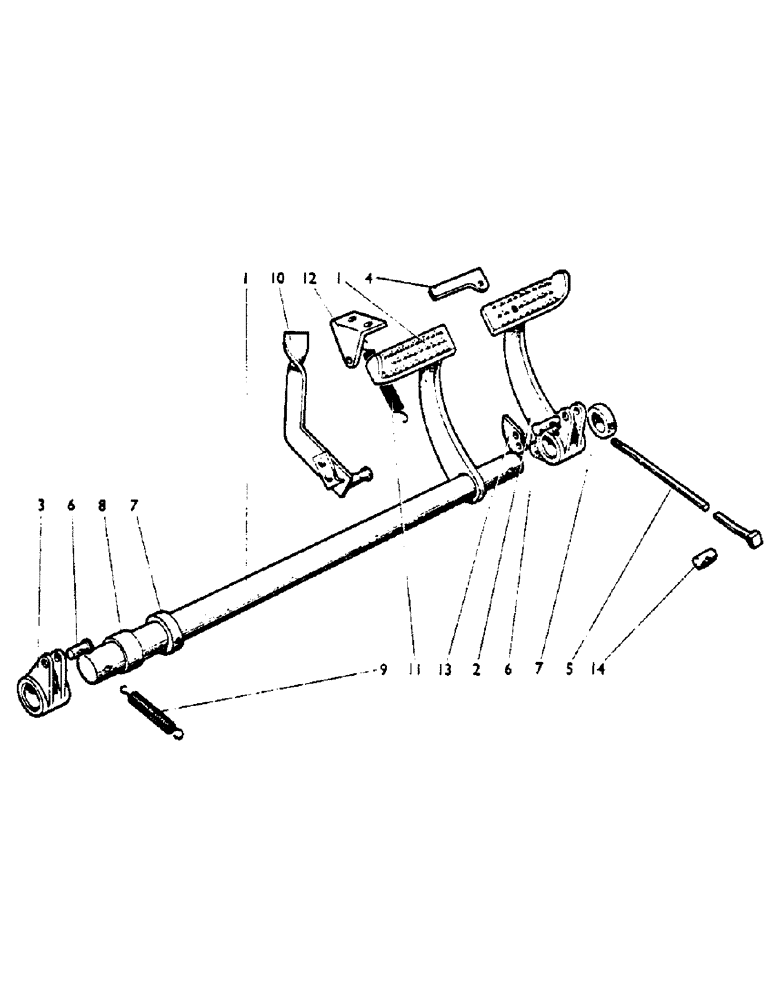

Запчасти Case IH 850 (72) - BRAKE CONTROLS, NARROW MODELS (5.1) - BRAKES

1

K907611

Cross Shaft and Left-hand Pedal

1шт.

2

K907614

Pedal--R.H.

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

3

K903139

LEVER

Brake Lever

1шт.

K623732

PIN

Mills Pin, 3/8 dia. x 2 in.

1шт.

4

K907615

Locking Plate

1шт.

K600500

SCREW

Special Bolt, 3/8 UNC

1шт.

K626700

WASHER

Double Coil Spring Washer

1шт.

5

K907616

Brake Rod

1шт.

6

K38638

Pin

2шт.

K607504

NUT

Adjusting Nut

2шт.

280136

NUT,3/8"-16, G8

2шт.

7

K36585

Collar

2шт.

K11273

Mills Pin, 5/16 x 2 in.

2шт.

8

K907620

Tube Spacer

1шт.

9

K14809

SPRING

Return Spring

2шт.

10

K908276

Lever--Parking Brake

1шт.

11

K624915

Spring

1шт.

K602931

BOLT

Anchor Bolt--Spring

1шт.

12

K907624

Bracket

1шт.

K602903

SCREW

Setscrew, 3/8 UNC x 7/8 in.

1шт.

280136

NUT,3/8"-16, G8

2шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in.

2шт.

K602906

SCREW

Setscrew, 3/8 UNC x 1 1/4 in.

1шт.

232-1416

LOCK NUT,3/8"-16, GC

Nyloc Nut, 3/8 UNC

1шт.

K19472

WASHER

3/8 in.

1шт.

13

K907625

Ratchet Plate

1шт.

K602806

BOLT

Setscrew, 5/16 x 1 1/8 in.

2шт.

K19481

SPRING WASHER

Spring Washer

2шт.

14

K907619

PIN

--Brake Lever

2шт.
