Запчасти Case IH 850 (06) - PISTONS, CONNECTING RODS, FLYWHEEL AND CRANKSHAFT, ALL MODELS (01) - ENGINE

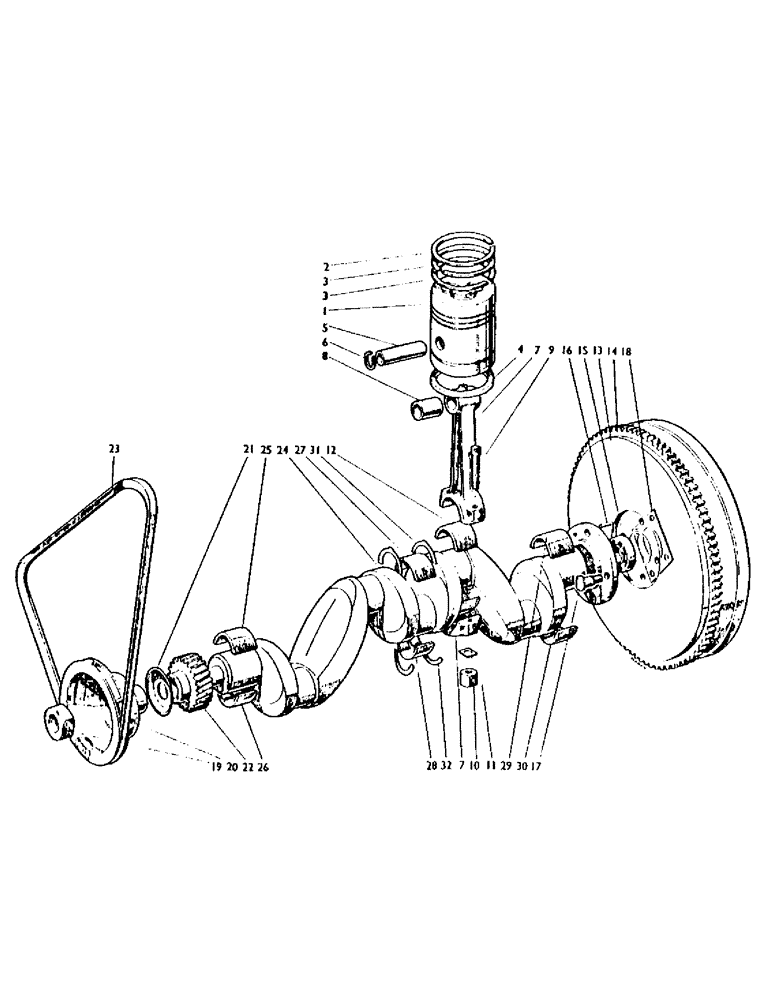

Схема запчастей Case IH 850 - (06) - PISTONS, CONNECTING RODS, FLYWHEEL AND CRANKSHAFT, ALL MODELS (01) - ENGINE
26
8
7
9
20
32
25
13
27
27
4
3
12
28
1
23
16
14
19
31
17
5
24
15
29
21
7
6
18
11
10
3
30
2

Артикул

Название

Примечание

Количество

1

K900806

PISTON

--Complete with Rings--3 5/8 in. dia. (Standard), 880 and 950 900806

4шт.

K900800

PISTON

--(Not supplied separately) 880 and 950 900806

4шт.

1

K900805

PISTON

--Complete with Rings--3 1/2 in. dia. (Standard), 850 900805

4шт.

K900799

Piston--(Not supplied separately) 850 900805

4шт.

2

K64974

SPARE PART

Ring--Compression Ring No. 1 880 and 950 900806

4шт.

2

K65628

RING, PISTON

Ring--Compression Ring No. 1 850 900805

4шт.

3

K64975

RING, PISTON

Ring--Compression Ring No. 2 and No. 3, 880 and 950 900806

8шт.

3

K65629

PISTON

Ring--Compression Ring No. 2 and No. 3, 850 900805

8шт.

4

K83789

SCRAPER

Ring--Scraper 880 and 950 900806

4шт.

4

K89734

RING, PISTON

Ring--Scraper 850 900805

4шт.

5

K37023

PIN

Gudgeon Pin 880 and 950 900806

4шт.

5

K34992

RUBBER WASHER

Gudgeon Pin 850 900805

4шт.

6

K34501

RING, SNAP

Circlip--Gudgeon Pin 880 and 950 900806

8шт.

6

K34501

RING, SNAP

Circlip--Gudgeon Pin 850 900805

8шт.

7

K36268

SPARE PART

Connecting Rod and Cap Assembly

4шт.

8

K31669

BEARING

--Small End 36268

4шт.

9

K31797

BOLT

36268

8шт.

10

K31798

NUT

36268

8шт.

11

K10618

Tab Washer 36268

8шт.

12

K901649

HALF-BEARING, CRANKS

Bearing--Big End--Upper and Lower (Halves), Standard

8шт.

13

K906567

Flywheel and Starter Ring Livedrive

1шт.

13

K900717

Flywheel and Starter Ring Non-Livedrive

1шт.

14

K36134

GEAR

Starter Ring

1шт.

15

K19167

BALL BEARING,22.23mm ID x 50.8mm OD x 14.29mm W

1шт.

16

K10629

PIN

Dowel

1шт.

17

K10608

Bolt--Flywheel

4шт.

18

K10623

BRAKE

Tab Washer

1шт.

K19404

NUT

7/16 BSF

4шт.

K89686

Locating Disc Livedrive

1шт.

19

K623300

NUT

Crankshaft Nut

1шт.

20

K68057

Pulley--Crankshaft

1шт.

K19607

KEY

Woodruff No. 506

1шт.

21

K10602

Flinger--Oil

1шт.

22

K34460

Gear--Crankshaft

1шт.

K19607

KEY

Woodruff No. 506

1шт.

23

K903050

V-BELT

Fan and Dynamo Drive

1шт.

24

K902199

CRANKSHAFT

(Complete with Bearings and Thrust Washers)

1шт.

25

K67396

Bearing--Crankshaft Main--Upper Front, Standard

1шт.

26

K901650

BEARING,CON.ROD

Bearing--Crankshaft Main--Lower Front, Standard

1шт.

27

K67397

BEARING

--Crankshaft Main--Upper Centre, Standard

1шт.

28

K901651

BEARING

--Crankshaft Main--Lower Centre, Standard

1шт.

29

K67398

Bearing--Crankshaft Main--Upper Rear, Standard

1шт.

30

K901652

BEARING

--Crankshaft Main--Lower Rear, Standard

1шт.

31

K67494

WASHER

Thrust Washer--Crankshaft Upper Standard

2шт.

32

K67495

WASHER

Thrust Washer--Crankshaft Lower Standard

2шт.

Выбрано товаров: 45
