Запчасти Case IH 780 (086) - FRONT-WHEEL BRAKES, HIGHWAY TRACTORS (5.1) - BRAKES

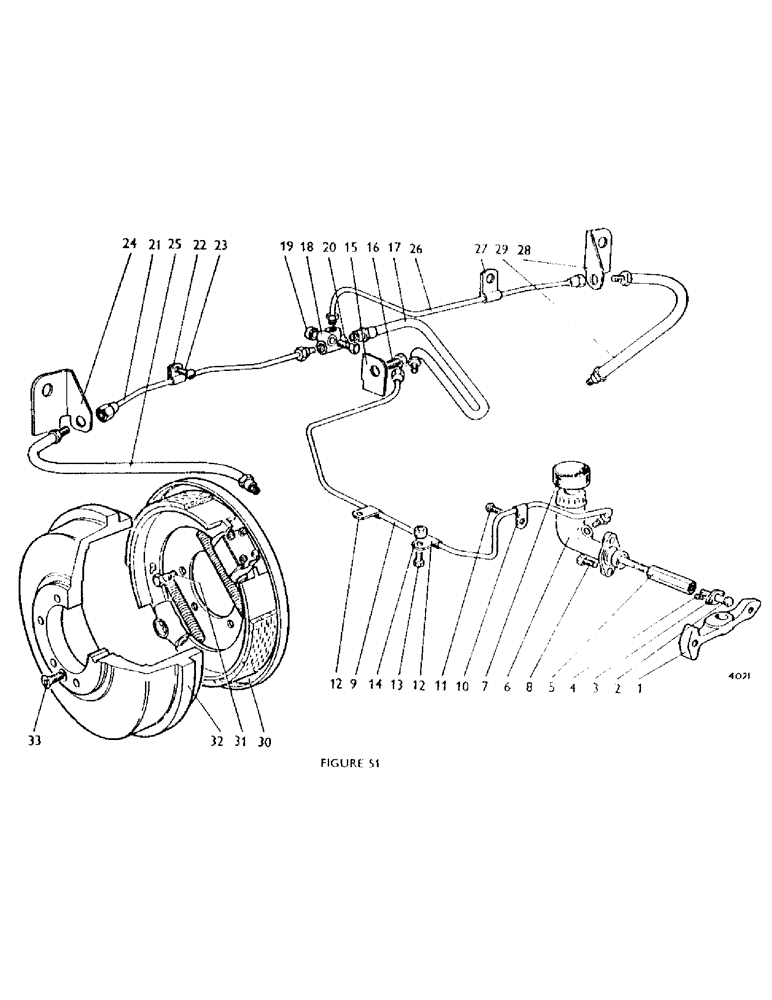

Схема запчастей Case IH 780 - (086) - FRONT-WHEEL BRAKES, HIGHWAY TRACTORS (5.1) - BRAKES
6
9
23
24
33
31
15
12
8
2
21
19
16
7
28
20
5
10
11
29
12
3
14
25
30
17
18
27
22
4
1
26
32
13

Артикул

Название

Примечание

Количество

1

K972798

BEAM

- compensator

1шт.

2

K971935

ROD

- push

1шт.

3

K971936

SHIM

Retaining plate

1шт.

4

K613982

SCREW

SETSCREW - No. 10 UNF x 3/8 in.

2шт.

K19488

SPRING WASHER

- spring, 3/16 in.

2шт.

5

K971937

SLEEVE

- adjusting, short

1шт.

K617051

NUT

LOCKNUT - 5/16 UNF

2шт.

6

K972553

SPARE PART

CYLINDER - master (Girling 64067641)

1шт.

7

K972640

CAP

- rubber

1шт.

8

K602806

BOLT

- setscrew, 5/16 UNC x 1 1/8 in. cylinder to frame platform

2шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in. cylinder to frame platform

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC cylinder to frame platform

2шт.

9

K925060

PIPE

- master, Serial Range: cylinder-hose

1шт.

10

K19932

RING

- clip--pipe to frame platform

1шт.

11

K19388

SETSCREW - 2 BA x 1/2 in.

1шт.

K11109

NUT

- 2 BA

1шт.

K19488

SPRING WASHER

- spring, 3/16 in.

1шт.

12

K14393

CABLE

- clip--pipe to sump cover (replaces 621603)

2шт.

13

K602807

SCREW

SETSCREW - 5/16 UNC x 1 1/4 in.

2шт.

14

K627020

BUSHING

- distance piece

2шт.

K19481

SPRING WASHER

WASHER - spring, 5/16 in.

2шт.

15

K972904

BRACKET

1шт.

16

K603306

BOLT

- setscrew, 5/8 UNC x 1 1/2 in.

1шт.

K19485

WASHER

- spring, 5/8 in.

1шт.

K617052

NUT

LOCKNUT - 3/8 UNF

1шт.

K626479

WASHER

- 3/8 in.

1шт.

17

K972905

HOSE

- flexible

1шт.

K626447

WASHER

- copper, 3/8 in.

1шт.

18

K972194

FITTING

- tee-piece

1шт.

19

K627020

BUSHING

- distance piece

1шт.

20

K600006

BOLT

- 1/4 UNC x 1 1/2 in.

1шт.

K19480

SPRING WASHER

- spring, 1/4 UNC

1шт.

21

K972908

PIPE - tee-piece to left-hand hose

1шт.

22

K19932

RING

- clip--pipe to axle beam

1шт.

23

K19388

SETSCREW - 2 BA x 1/2 in.

1шт.

K19488

SPRING WASHER

- spring, 3/16 in.

1шт.

24

K972904

BRACKET - support, left-hand

1шт.

K617052

NUT

LOCKNUT - 3/8 UNC

1шт.

K626479

WASHER

- 3/8 in.

1шт.

25

K972905

HOSE

- flexible

1шт.

K626447

WASHER

- copper, 3/8 in.

1шт.

26

K972906

PIPE

- tee-piece to right-hand hose

1шт.

27

K621628

PIPE

- clip, to axle beam

1шт.

28

K972903

BRACKET - support, right-hand

1шт.

K617052

NUT

LOCKNUT - 3/8 UNF

1шт.

K626479

WASHER

- 3/8 in.

1шт.

29

K972905

HOSE

- flexible

1шт.

K626447

WASHER

- copper, 3/8 in.

1шт.

30

K971793

BRAKE

- assembly, left-hand (Girling 64021379)

1шт.

30

K971794

BRAKE - assembly, right-hand (Girling 64021381)

1шт.

31

K600503

BOLT

- 3/8 UNC x 1 1/16 in.

8шт.

232-1416

LOCK NUT,3/8"-16, GC

NUT - Nyloc, 3/8 UNC

8шт.

32

K971802

BRAKE

- drum, 10 in. dia.

2шт.

33

K604210

SCREW

- 1/2 UNC x 1 3/8, Serial Range: in.--drum-hub

4шт.

Выбрано товаров: 54
