Запчасти Case IH 780 (084) - REAR-WHEEL BRAKES, HIGHWAY TRACTORS (5.1) - BRAKES

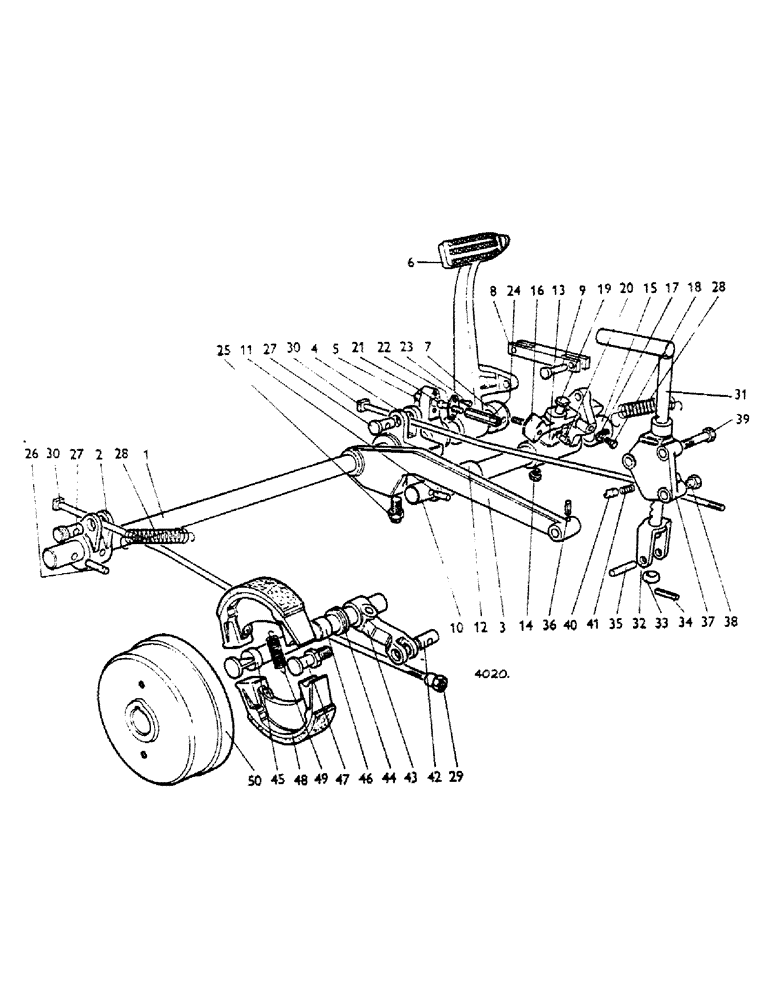

Схема запчастей Case IH 780 - (084) - REAR-WHEEL BRAKES, HIGHWAY TRACTORS (5.1) - BRAKES
24
16
11
38
17
19
27
49
30
30
10
42
40
48
8
21
50
34
27
44
5
4
1
20
14
22
39
26
23
29
36
28
3
18
9
6
43
46
15
13
28
41
47
7
32
45
25
37
2
31
33
12
35

Артикул

Название

Примечание

Количество

1

K972801

SHAFT

- cross

1шт.

2

K912043

LEVER

- left-hand

1шт.

3

K972796

NO LONGER SERVICED

LEVER - operating, hand brake

1шт.

4

K972800

LEVER

- right-hand

1шт.

5

K972799

LEVER

- front brake

1шт.

6

K925065

PEDAL

- brake

1шт.

7

K972805

COLLAR

1шт.

8

K972806

LINK

- brake pedal

1шт.

9

K14227

PIN

- clevis, 3/8 x 1 1/16 in.

2шт.

K19472

WASHER

- 3/8 in.

2шт.

K19528

PIN

- split, 3/32 x 3/4 in.

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

6шт.

10

K972802

SHAFT

- compensator lever

1шт.

11

K11113

PIN

- Mills, 3/8 x 1 1/2 in.

2шт.

12

K972803

BUSHING

- distance tube, left-hand

1шт.

13

K972797

BEAM

- carrier--compensator

1шт.

14

K971938

PLUG

- 1/4 BSP

1шт.

15

K972804

BUSHING

- distance tube, right-hand

1шт.

16

K972798

BEAM

- compensator

1шт.

17

K971939

SHIM

Spring anchor

1шт.

18

K602803

BOLT

- 5/16 UNC x 3/4 in. plate to compensator beam

1шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in. plate to compensator beam

1шт.

19

K971934

PIN

- 5/8 x 2 in.

1шт.

20

K19562

GROOVED PIN,3/16" x 1 1/4", Type A

Pin, Grooved, , Mills 3/16" x 1 1/4", Type A

1шт.

21

K971935

ROD

- push

2шт.

22

K971936

SHIM

Retaining plate

2шт.

23

K613982

SCREW

SETSCREW - No. 10 UNF x 3/8 in.

4шт.

K19488

SPRING WASHER

- spring, 3/16 in.

4шт.

24

K972808

SLEEVE

- adjusting, long

1шт.

K617051

NUT

LOCKNUT - 5/16 UNF

2шт.

25

K606170

SCREW

GRUBSCREW - 7/16 UNC

1шт.

425-147

JAM NUT,Jam, 7/16"-14, G5

LOCKNUT - 7/16 UNC

1шт.

26

K623732

PIN

- Mills, 3/8 x 2 in.

3шт.

27

K38639

PIN

- brake rods

2шт.

28

K14809

SPRING

- return

2шт.

29

K607504

NUT

- adjusting, 3/8 UNC

2шт.

280136

NUT,3/8"-16, G8

2шт.

30

K972809

SPARE PART

BRAKE - rod

2шт.

31

K916989

LEVER

- hand

1шт.

32

K912780

FORK

1шт.

33

K65784

WASHER

- spherical

1шт.

34

K623895

PIN

- spring, 5/16 x 2 in.

1шт.

35

K904356

PIN

- fork

1шт.

36

K623940

PIN

- spring, 5/32 x 1 in.

1шт.

37

K912048

HOUSING

- hand lever

1шт.

38

K600608

BOLT

- 7/16 UNC x 2 1/4 in., Serial Range: housing-frame

1шт.

39

K603005

SCREW

- bolt, 7/16 UNC x 1 1/4 in., Serial Range: housing-frame

2шт.

K19483

SPRING WASHER

- spring, 7/16 in., Serial Range: housing-frame

3шт.

40

K909588

PAWL

1шт.

41

K14651

SPRING

1шт.

42

K14744

PIN

- 3/4 x 1 1/2 in.--lever

2шт.

43

K86343

LEVER

- cam

2шт.

K609425

LARGE PIN

PIN - large, cotter, 3/8 UNC x 2 1/4 in.

2шт.

K19472

WASHER

- 3/8 in.

2шт.

K11522

WASHER

- shakeproof, 3/8 in.

2шт.

280136

NUT,3/8"-16, G8

2шт.

44

K85417

SEAL

- dirt excluder

2шт.

K912002

GUARD

- dirt shield

2шт.

45

K912000

BRAKE

- camshaft, left-hand

1шт.

45

K912001

BRAKE

- camshaft, right-hand

1шт.

46

K30835

BUSHING

- camshaft

4шт.

47

K906002

PIN

- large, fulcrum

2шт.

K19485

WASHER

- spring, 5/8 in.

2шт.

48

K903806

BRAKE ASSY.

- shoe and lining (replaces 909957)

4шт.

K903512

BRAKE SHOE

SHOE - brake (replaces 905264) 903806

4шт.

K903511

LINING

- brake 903806

4шт.

K13048

RIVET

- 3/16 x 7/8 in. 903806

4шт.

K624014

RIVET

- 3/16 x 5/3 in. 903806

4шт.

K960595

PADDING

- brake lining (4) and rivet pack (for 903512 shoes)

1шт.

K962283

BRAKE

- lining (4) and rivet pack (for 905264 shoes)

1шт.

49

K63462

SPRING

- brake shoes

4шт.

50

K905641

BRAKE

- drum

2шт.

Выбрано товаров: 72
