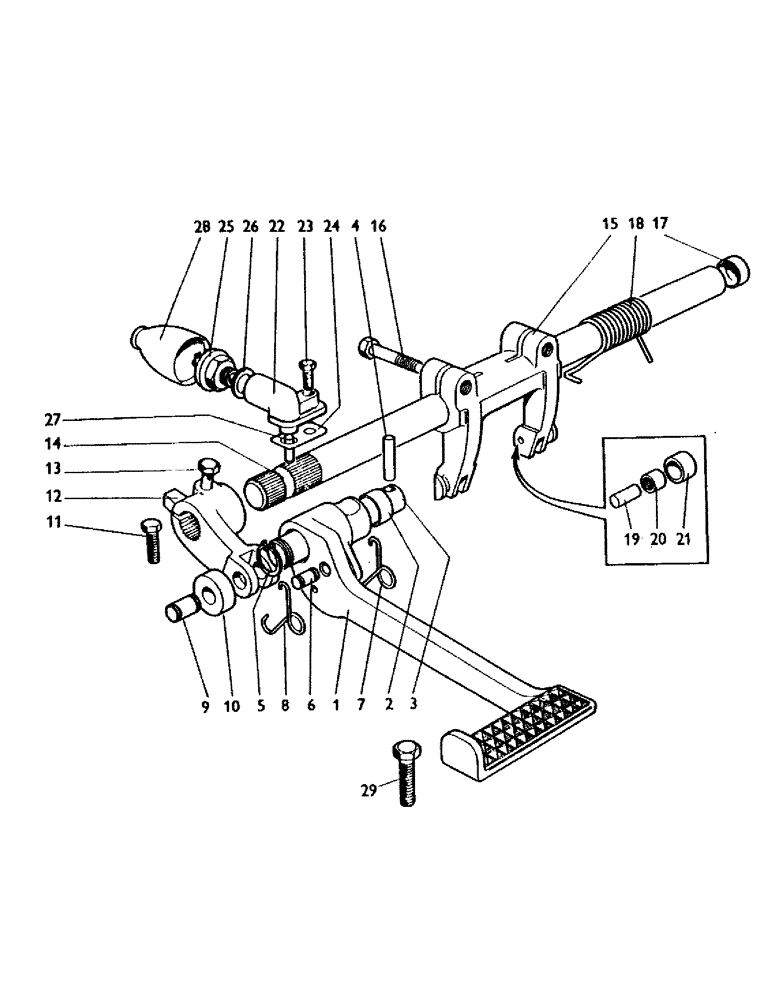

Запчасти Case IH 780 (026) - CLUTCH, FOOT CONTROL (03.1) - CLUTCH
№
Артикул
Название
Примечание
Количество
1
K929835
PEDAL
- clutch (with bushes) (replaces 921680)
1шт.
2
K621371
BUSHING
3шт.
3
K921688
PIN
- fulcrum
1шт.
4
K11315
PIN
- Mills, 1/4 x 1 3/4 in.
1шт.
K626716
WASHER
- 7/8 in., special
1шт.
5
K34454
RING, SNAP
SNAP RING - circlip, 7/8 in. ext.
1шт.
6
K921686
SPRING
- pin
1шт.
7
K921684
SPRING
- inner
1шт.
8
K921685
SPRING
- outer
1шт.
9
K921683
PIN
1шт.
10
K921682
ROLLER
1шт.
11
K602843
SCREW
- 5/16 UNC x 1 1/8 in., special--pedal adjustment
1шт.
K607081
LOCK NUT
LOCKNUT - 5/16 UNC (replaces 607051)
1шт.
12
K921681
CLUTCH
- lever
1шт.
13
K600404
BOLT
- 3/8 UNC x 1 1/2 in.
1шт.
K19482
SPRING WASHER
WASHER - lock, spring, 3/8 in.
1шт.
14
K928264
SHAFT
- cross (supersedes 912050)
1шт.
K34454
RING, SNAP
SNAP RING - circlip, 7/8 in. ext.
1шт.
K626716
WASHER
- 7/8 in., special
1шт.
K626738
WASHER
- 7/8 in., special
1шт.
15
K905650
CLUTCH FORK
FORK - clutch
1шт.
K19607
KEY
- Woodruff No. 506
2шт.
16
K600403
BOLT
- 3/8 UNC x 1 3/8 in.
2шт.
K19482
SPRING WASHER
WASHER - lock, spring, 3/8 in.
2шт.
17
K89362
SEAL
- dirt excluder
1шт.
18
K921687
COIL SPRING
SPRING - coil
1шт.
19
K900349
PIN
- pivot, clutch fork roller
2шт.
20
K620260
NEEDLE BEARING,Needle, 4.76mm ID x 8.73mm OD x 6.35mm W
BEARING - needle roller
2шт.
21
K900348
ROLLER,8.72mm ID x 14.29mm OD x 6.35mm L
- clutch fork
2шт.
K690973
FITTING
- grease nipple, angled, left-hand--cross shaft
2шт.
22
K921775
FITTING
- elbow
1шт.
23
K602806
BOLT
- setscrew, 5/16 UNC x 1 1/8 in.
1шт.
K19481
SPRING WASHER
WASHER - lock, spring, 5/16 in.
1шт.
25
K916749
NEUTRAL START SWITCH
SWITCH - safety, starter
1шт.
26
K921778
SHIM
- switch
2шт.
27
K929029
PLUNGER
1шт.
K11286
BALL
- steel, 5/16 in.
1шт.
K921776
PLUNGER
1шт.
28
K921193
SEAL
- dirt excluder
1шт.
29
413-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
SETSCREW - 3/8 UNC x 1 1/8 in.--pedal stop
1шт.
87016560
JAM NUT,Jam, 3/8"-16, G5
LOCKNUT - 3/8 UNC
1шт.
Выбрано товаров: 41
