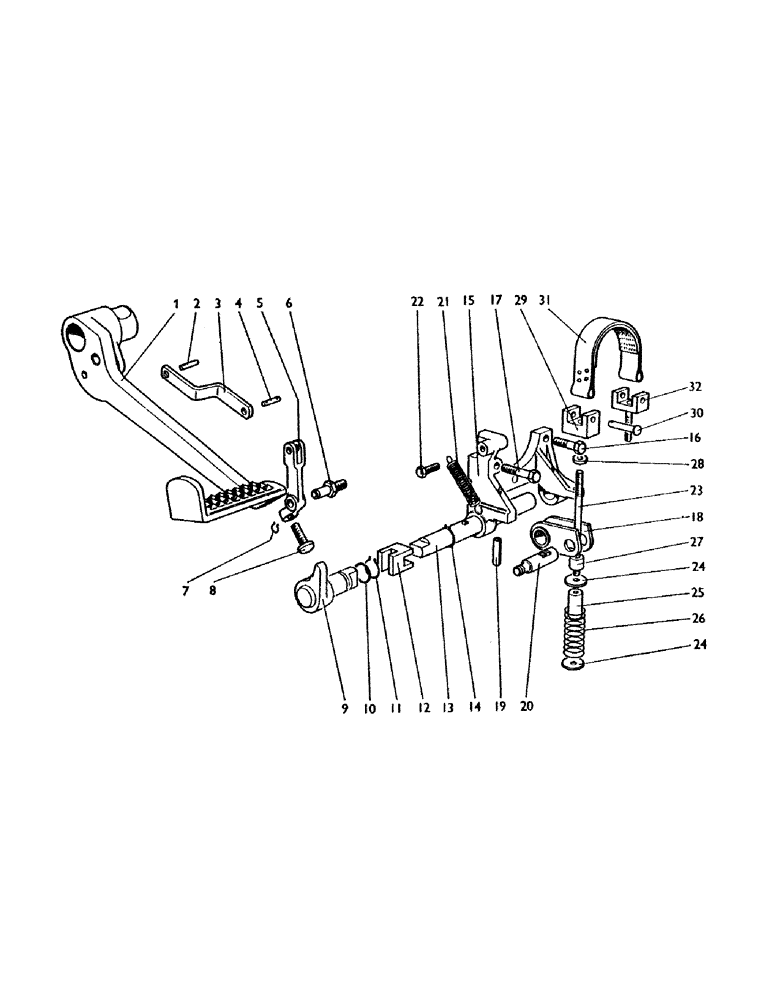

Запчасти Case IH 780 (024) - CLUTCH STOP (03.1) - CLUTCH

1

K921680

NO LONGER SERVICED

PEDAL - clutch

1шт.

K19528

PIN

- split, 3/32 x 3/4 in.

1шт.

2

K921674

LINK

- Mills pin, 1/4 x 15/16 in.

1шт.

3

K921673

NO LONGER SERVICED

LINK - connecting

1шт.

4

K625905

PIN

large, clevis, 1/4 x 1 5/8 in.

1шт.

K19470

WASHER

- 1/4 in.

2шт.

K19527

PIN

- split, 3/32 x 1/2 in.

2шт.

5

K914890

LEVER

1шт.

6

K914916

NO LONGER SERVICED

PIN - pivot, 3/8 UNC

1шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in.

1шт.

K19472

WASHER

- 3/8 in.

1шт.

7

K621562

RING, SNAP

SNAP RING - circlip, 3/8 in., ext.

1шт.

8

K914883

SCREW

- adjusting, 5/16 UNC

1шт.

K607081

LOCK NUT

LOCKNUT - 5/16 UNC (replaces 607051)

1шт.

9

K915637

SHAFT

- operating lever

1шт.

10

K16351

O-RING,3.53mm Thk x 24.99mm ID

- 1 in. int. dia.

1шт.

11

K11128

CIRCLIP

SNAP RING - circlip, 1 in., ext.

1шт.

12

K914870

COUPLING, BREAK AWAY

COUPLING - break away

1шт.

13

K914868

SHAFT

1шт.

14

K11290

RING, SNAP

SNAP RING - circlip, 3/4 in., ext.

1шт.

15

K915636

BRACKET

- support

1шт.

16

K600205

BOLT

- 5/16 UNC x 1 1/2 in., Serial Range: bracket-frame

2шт.

17

K600211

BOLT

- 5/16 UNC x 2 1/4 in., Serial Range: bracket-frame

1шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in., Serial Range: bracket-frame

3шт.

18

K914863

FORK

1шт.

19

K12925

SPRING

- pin, 1/4 x 1 1/4 in.

1шт.

20

K914867

PIN

1шт.

21

K624931

SPRING

1шт.

22

K602701

BOLT

- setscrew, 1/4 UNC x 1/2 in.

1шт.

23

K914904

STUD

- 1/4 UNC x 5 1/2 in.

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

- 1/4 UNC

2шт.

24

K24111

WASHER

- 1/4 in., special

2шт.

25

K916495

BUSHING

- distance piece, 1 9/16 in.

1шт.

26

K625195

SPRING

1шт.

27

K627010

BUSHING

- spacer

1шт.

28

K914905

COLLAR - 1/4 UNC

1шт.

29

K916481

END

- fork, 1/4 UNC

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

- 1/4 UNC

1шт.

30

K625943

PIN

- clevis

2шт.

K19527

PIN

- split, 3/32 x 1/2 in.

2шт.

K19470

WASHER

- 1/4 in.

2шт.

31

K916484

BRAKE

- band and lining

1шт.

32

K916480

FORK

- 1/4 UNC

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

- 1/4 UNC

2шт.

K19480

SPRING WASHER

- spring, 1/4 in.

2шт.
