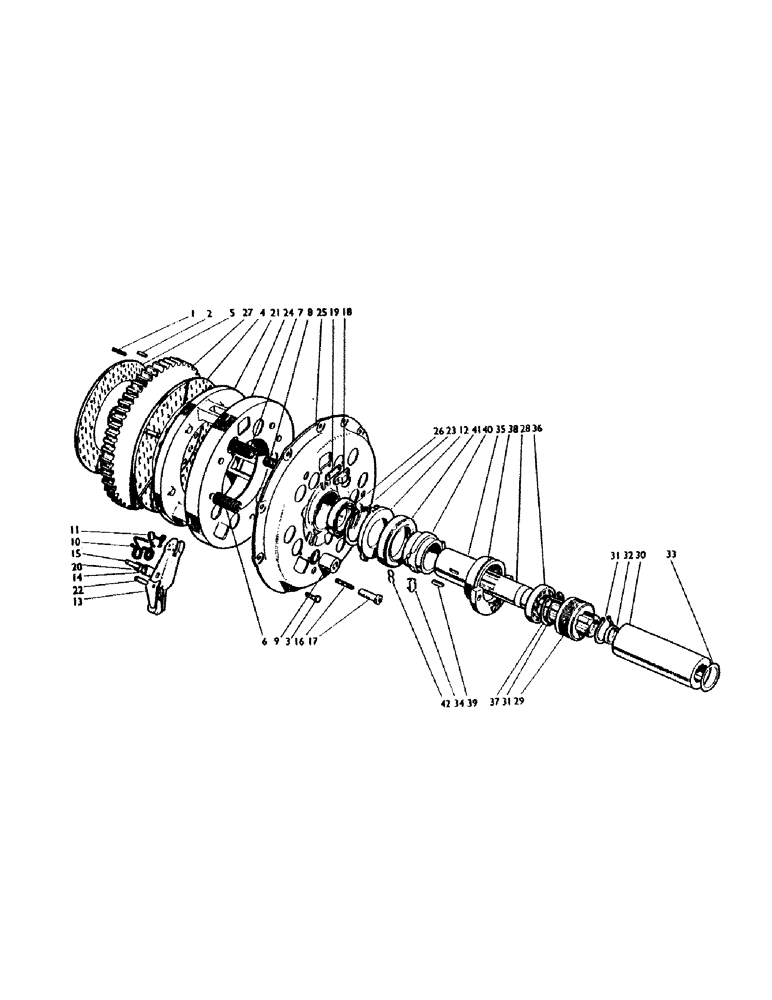

Запчасти Case IH 780 (022) - DOUBLE CLUTCH, BORG AND BECK (03.1) - CLUTCH

1

K13226

SPRING

- flywheel

3шт.

2

K621838

PIN

- dowel, 5/16 x 7/16 x 1 1/8 in.

2шт.

3

K602903

SCREW

- bolt, 3/8 UNC x 7/8 in.

9шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in.

9шт.

4

K923374

CLUTCH DISC

DISC - clutch, driven plate (with facings and, supersedes 915358 rivets)--main drive

1шт.

K961829

KIT

- facings (2) and rivets (42)

1шт.

5

K89322

CLUTCH & DISC ASSY

DISC - clutch, driven plate (with facings and rivets)--PTO

1шт.

K900249

NO LONGER SERVICED

KIT - facings (2) and rivets (26)

1шт.

K918611

CLUTCH ASSEMBLY

- cover

1шт.

6

K900261

SPRING

- thrust (buff)--PTO 918611

6шт.

7

K928922

SPRING

- thrust (brown)--main drive outer (r. 902512), 918611

6шт.

8

K902513

SPRING

- thrust (brown)--main drive inner, 918611

6шт.

9

K900256

SPRING

- cup 918611

12шт.

10

K961128

SPRING

- anti-rattle 918611

3шт.

11

K900267

RETAINER

- release lever plate 918611

3шт.

12

K900268

PLATE

- release lever 918611

1шт.

13

K900275

LEVER

- release 918611

3шт.

K900278

PIN

- split 918611

3шт.

14

K900264

ROLLER

- 918611

3шт.

15

K900265

PIN

- large, roller 918611

3шт.

K900274

RING, SNAP

SNAP RING - circlip 918611

6шт.

K918607

SCREW

- adjusting, 5/16 UNF alternatives, 918611

3шт.

K918608

NUT

LOCKNUT - 5/16 UNF, special alternatives, 918611

3шт.

16

K900269

SCREW

- adjusting, 1/4 UNF alternatives, 918611

3шт.

17

K900270

LOCK NUT

LOCKNUT - 1/4 UNF alternatives 918611

3шт.

18

K900257

PAD

- adjusting, release lever 918611

3шт.

K900272

SCREW

SETSCREW - 918611

6шт.

K900279

WASHER

- shakeproof, adjusting pad 918611

6шт.

20

K900273

NEEDLE

- roller--release lever 918611

60шт.

21

K900253

PLATE

- pressure 918611

1шт.

22

K900266

PIN

- 918611

3шт.

23

K89326

RING, SNAP

SNAP RING - circlip, 3/8 in. int. dia.--ball, 918611 bearing

1шт.

24

K918613

COVER

- inner 918611

1шт.

25

K918612

COVER

- outer 918611

1шт.

26

K89325

BALL BEARING,45mm ID x 75mm OD x 16mm W

BEARING - ball 918611

1шт.

K900271

SPARE PART

PIN - split, pressure plate pin 918611

6шт.

K900280

WASHER

- release lever 918611

6шт.

27

K906200

DISC

- separator plate

1шт.

28

K921592

CLUTCH

- driveshaft--6-speed

1шт.

K921594

CLUTCH

- driveshaft--12-speed

1шт.

29

K917780

CASTING

- drum--clutch stop

1шт.

30

K917434

NO LONGER SERVICED

COUPLING - muff, 6-speed

1шт.

31

K12922

RING, SNAP

SNAP RING - circlip, 1 3/4 in., ext.

4шт.

32

K89333

WASHER

- felt

1шт.

34

K900359

SPRING

- clip--bearing carrier

2шт.

35

K921595

SUPPORT SNOUT - thrust bearing carrier

1шт.

36

K620033

BALL

- bearing

1шт.

37

K621430

CIRCLIP

- 75 mm., int.

1шт.

38

K24865

O-RING

- 3 3/8 in. int. dia.

1шт.

39

K24866

KEY

- 3/16 x 5/32 x 1 1/4 in.

1шт.

40

K921596

SLIPPER

CARRIER - thrust bearing

1шт.

41

K19169

BEARING, THRUST

BEARING - thrust

1шт.

42

K89336

SPRING

- clutch fork

2шт.
