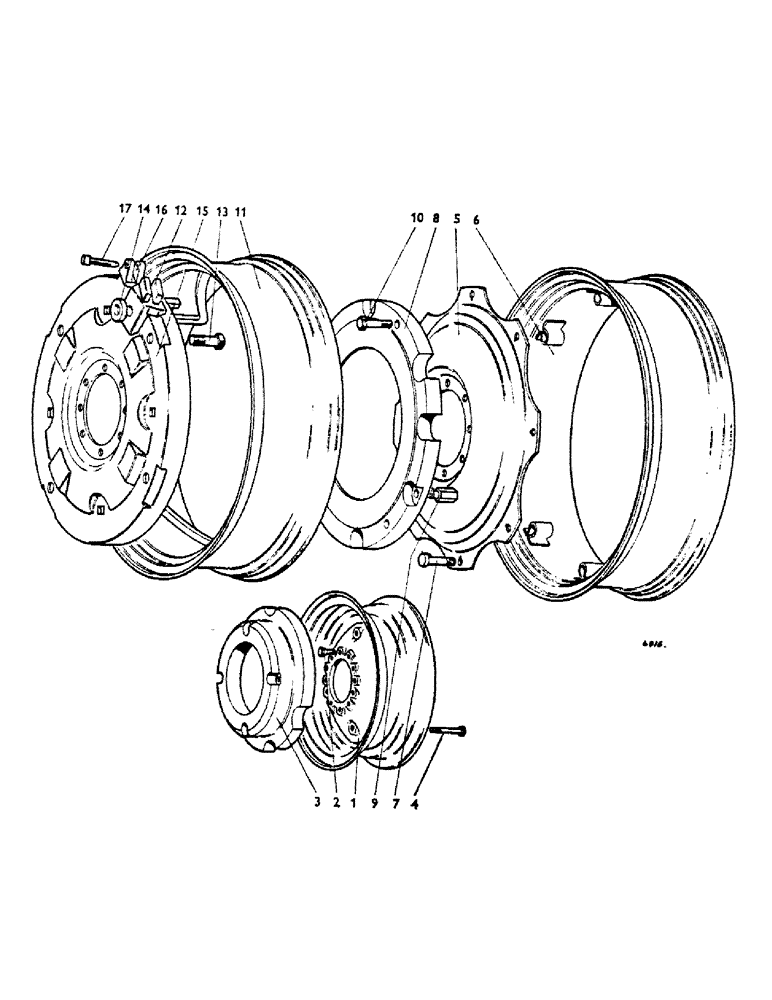

Запчасти Case IH 780 (096) - FRONT WHEELS (12) - CHASSIS

1

K914053

NO LONGER SERVICED

WHEEL - front, 4.50E x 16 in. (fits 6.00 x 16 in. or 5.50 x 16 in. tyres)

2шт.

2

K907400

WHEEL BOLT,1/2" - 13 x 1 1/8"

- wheel bolt, 1/2 UNC x 1 in.

12шт.

3

K909316

WEIGHT

- ballast U436 (907954)

2шт.

4

K600817

BOLT

- 1/2 UNC x 3 3/4 in. U436 (907954)

8шт.

K19484

LOCK WASHER

WASHER - lock, spring, 1/2 in. U436 (907954)

8шт.

K607004

NUT

- 1/2 UNC, U436 (907954)

8шт.

K914255

NO LONGER SERVICED

RIM - rear, centre assembly, W9 x 28 in. (fits 12.4/11 x 28 in. tyres), wheels\

2шт.

5

K905284

WHEEL

- rear centre 914255

1шт.

6

K67624

WHEEL

- rear rim 914255

1шт.

7

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

- rim bolt, 5/8 UNF x 2 7/8 in. 914255, rear wheels

6шт.

K19475

WASHER

- 5/8 in. 914255, rear wheels

6шт.

425-1110

NUT,5/8"-18, G5

914255, Rear wheels 5/8"-18, G5

6шт.

K914585

NO LONGER SERVICED

RIM - rear, centre assembly, W11 x 28 in. (fits 12.4/11 x 28 in. tyres), wheels

2шт.

5

K905284

WHEEL

- rear centre 914585

1шт.

6

K67980

WHEEL

- rear rim 914585

1шт.

7

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

- rim bolt, 5/8 UNF x 2 7/8 in. 914585, rear wheels

6шт.

K19475

WASHER

- 5/8 in. 914585, rear wheels

6шт.

425-1110

NUT,5/8"-18, G5

914585, Rear wheels 5/8"-18, G5

6шт.

8

K86167

WEIGHT

- ballast U729 (911480) (for wheels 914585), rear

4шт.

9

K914869

STUD

- 5/8 UNF, special U729 (911480) (for wheels 914585), rear

6шт.

10

K19305

BOLT

- 5/8 BSF x 2 in. U729 (911480) (for wheels 914585), rear

6шт.

K19485

WASHER

- spring, 5/8 in. U729 (911480) (for wheels 914585), rear

6шт.

K611261

BOLT

- rim, 5/8 UNF x 2 7/8 in. U729 (911480) (for wheels 914585), rear

6шт.

K918978

RIM

- rear, centre assembly, W12 x 24 in. (fits 14.9/13 x 24 in. tyres), rear wheels

2шт.

5

K907539

WHEEL

- rear centre 918978

1шт.

6

K918979

WHEEL DISC

DISC - rear wheel rim 918978

1шт.

7

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

- rim bolt, 5/8 UNF x 2 7/8 in. 918978, rear wheels

6шт.

K19475

WASHER

- spring, 5/8 in. 918978, rear wheels

6шт.

425-1110

NUT,5/8"-18, G5

918978, Rear wheels 5/8"-18, G5

6шт.

K917329

ASSEMBLY

- rear rim and centre (power-adjusted), W11 x 28 in. (fits 12.4/11 x 28 in. tyres), wheels

2шт.

11

K917330

RIM

- rear wheel 917329

1шт.

12

K917326

CLAMP

- 917329, rear wheels

4шт.

13

K917327

WHEEL

- bolt, special 917329, rear

4шт.

K917328

WHEEL

- nut 917329, rear

4шт.

14

K918806

NO LONGER SERVICED

WASHER - special 917329, rear wheels

4шт.

15

K917331

WHEEL CENTRE - rear 917329

1шт.

16

K917346

NO LONGER SERVICED

STOP - 917329, rear wheels

2шт.

17

K917338

STOP

- screw 917329, rear wheels

2шт.

K921168

SPARE PART

RIM - rear, centre assembly (power-adjusted), W11 x 28 (fits 12.4/11 x 28 in. tyres), wheels

2шт.

K921200

RIM

- rear wheel 921168

1шт.

K917339

PIN

- eccentric 921168, rear wheels

4шт.

K917340

SUPPORT

- body 921168, rear wheels

4шт.

K917341

RING

- snap 921168, rear wheels

4шт.

K917342

BLOCK

- 921168, rear wheels

4шт.

K601323

BOLT

- coach, 5/8 UNC, special 921168, rear wheels

8шт.

K19485

WASHER

- spring, 5/8 in. 921168, rear wheels

8шт.

K607035

NUT

- 5/8 UNC 921168, rear wheels

8шт.

K917517

SPARE PART

WHEEL - rear centre 921168, wheels

1шт.

K917337

STOP

- 921168, rear wheels

2шт.

K917338

STOP

- screw 921168, rear wheels

2шт.
