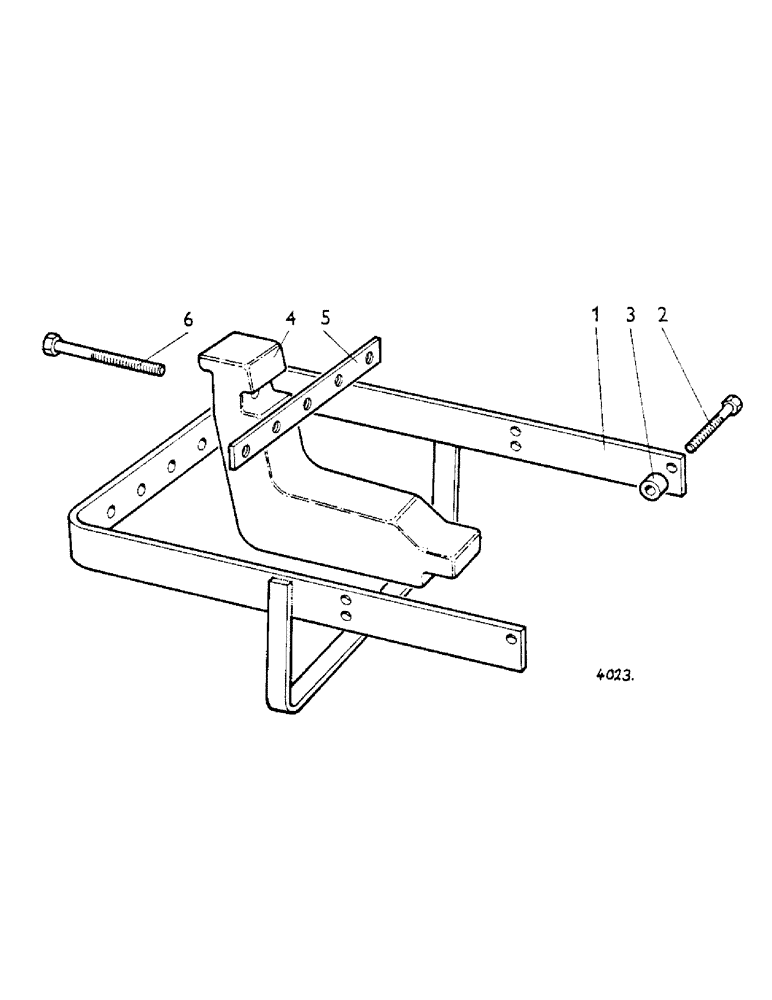

Запчасти Case IH 780 (091) - 922203, FRONT BALLAST WEIGHTS, U1166, OPTIONAL EQUIPMENT (12) - CHASSIS

1

K923595

FRAME - support

1шт.

2

K601362

BOLT

- 5/8 UNC x 2 3/4 in. support frame to main frame front (replaces 601201)

6шт.

K19485

WASHER

- spring, 5/8 in. support frame to main frame front

6шт.

K19475

WASHER

- 5/8 in. support frame to main frame front

18шт.

3

K627099

BUSHING

- spacer support frame to main frame front

6шт.

K626910

WASHER

- packing support frame to main frame front

6шт.

4

K916700

WEIGHT

- ballast

5шт.

5

K923482

BAR - locking

1шт.

6

K601366

BOLT

- 5/8 UNC x 3 1/2 in. ballast weights to locking bar (replaces 601214)

5шт.

K19485

WASHER

- spring, 5/8 in. ballast weights to locking bar

5шт.
