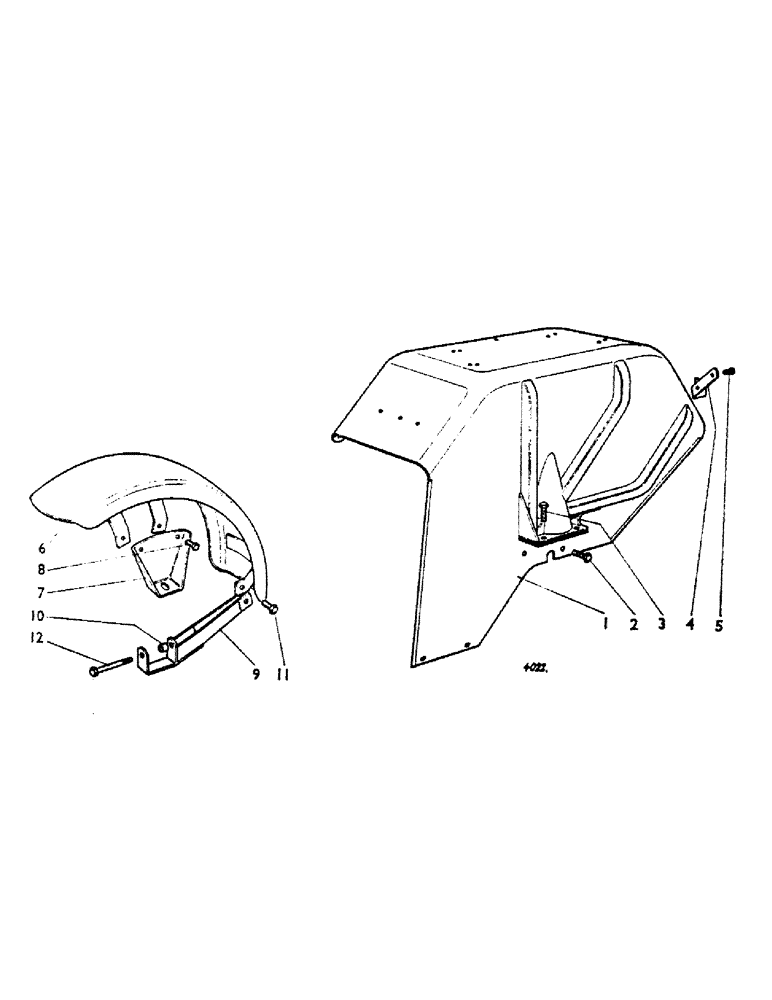

Запчасти Case IH 780 (090) - FENDERS, HIGHWAY TRACTORS (12) - CHASSIS

1

K921561

FENDER - rear, left-hand U1084 (918388)

1шт.

1

K921560

FENDER - rear, right-hand U1084 (918388)

1шт.

K627713

PLUG

- 7/32 in. dia. U1084 (918388)

17шт.

2

K603003

SCREW

SETSCREW - 7/16 UNC x 1 in. U1084 (918388)

6шт.

K626344

WASHER, LOCK

WASHER - lock, spring, 7/16 in. fender to, U1084 (918388) axle

6шт.

K621314

WASHER - 7/16 in. fender to axle U1084 (918388)

6шт.

3

K603141

SCREW

SETSCREW - 1/2 UNC x 1 1/4 in., U1084 (918388), Serial Range: fender-axle

4шт.

K626345

LOCK WASHER

WASHER - lock, spring, 1/2 in. U1084 (918388)

4шт.

4

K916304

BRACKET

- reflector, left-hand

1шт.

4

K916305

BRACKET

- reflector, right-hand

1шт.

5

K603924

SCREW

- 1/4 UNC x 1/2 in.

4шт.

K607043

NUT

- 1/4 UNC

4шт.

K626341

SPRING WASHER

WASHER - spring, 1/4 in.

4шт.

K19814

HOLDER

- licence

1шт.

6

K972521

FENDER

- front, left-hand

1шт.

6

K972520

FENDER

- front, right-hand

1шт.

7

K925112

SUPPORT

- bracket

2шт.

8

K602803

BOLT

- setscrew, 5/16 UNC x 3/4 in. support brackets to front fenders

4шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC support brackets to front fenders

4шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in. support brackets to front fenders

4шт.

9

K919385

SUPPORT

- stay

2шт.

10

K916450

TUBE

- distance, support stay to front axle

2шт.

11

K603104

SCREW

SETSCREW - 1/2 UNC x 1 in. support stays to front fenders

2шт.

K607004

NUT

- 1/2 UNC support stays to front fenders

2шт.

K19484

LOCK WASHER

WASHER - lock, spring, 1/2 in. support stays to front fenders

2шт.

12

K600420

BOLT

- 3/8 UNC x 4 in. support stays to stub axles

2шт.

280136

NUT,3/8"-16, G8

Support stays to stub axles 3/8"-16, G8

2шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in. support stays to stub axles

2шт.
