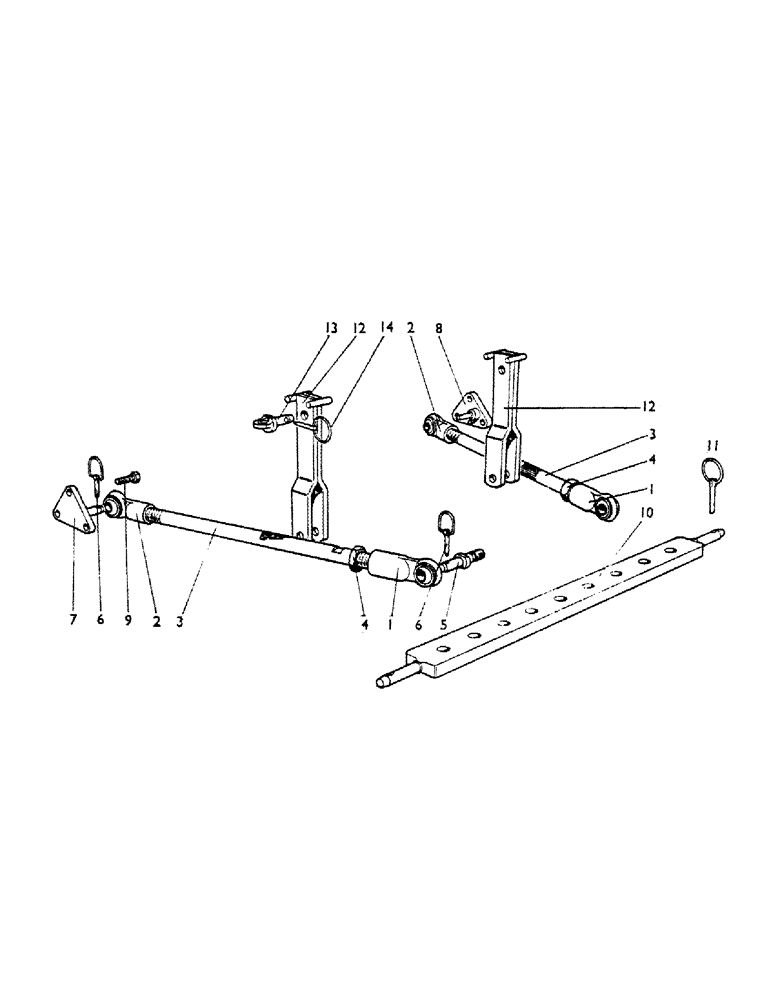

Запчасти Case IH 780 (058) - 922283, STABILISER BARS, U1180, TWO-BAR SET, 918396, OPTIONAL EQUIPMENT, U1101, LEFT-HAND (07) - HYDRAULIC SYSTEM

K921690

STABILIZER

- assembly

2шт.

1

K912232

BALL

- housing--rear, right-hand thread, 921690

1шт.

2

K912230

BALL

- housing--front, left-hand thread, 921690

1шт.

3

K912234

SCREW,3/4" - 10 x 2 1/4"

- bar 921690

1шт.

4

K607057

NUT

- lock, 3/4 UNC 921690

1шт.

5

K912228

PIN

- large, 5/8 UNC--lower link 921690

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

921690 5/8"-11, G5

1шт.

K19485

WASHER

- spring, 5/8 in. 921690

2шт.

6

K920359

PIN

- linch ring

4шт.

7

K921636

X

BRACKET - left-hand U1101 (918396)

1шт.

8

K921638

PLATE

- bracket--right-hand U1102 (918397)

1шт.

9

K603108

SCREW

- set, 1/2 UNC x 1 1/2 in. brackets to final drive

6шт.

K19484

LOCK WASHER

WASHER - lock, spring washer, 1/2 in. brackets to final drive

6шт.

K85782

DRAWBAR - linkage (U291) (optional equipment). 85782

1шт.

10

K902280

LINKAGE

- drawbar (U291) (optional equipment). 85782

1шт.

11

K920359

PIN

- linch ring, linkage drawbar (U291) (optional equipment). 85782

2шт.

12

K902281

EXTENSION - lift rod, linkage drawbar (U291) (optional equipment). 85782

2шт.

13

K903399

HITCH PIN

PIN - large, link 5/8 x 2 3/16 in., linkage drawbar (U291) (optional equipment). 85782

2шт.

14

K66408

PIN

- linch ring, linkage drawbar (U291) (optional equipment). 85782

2шт.
