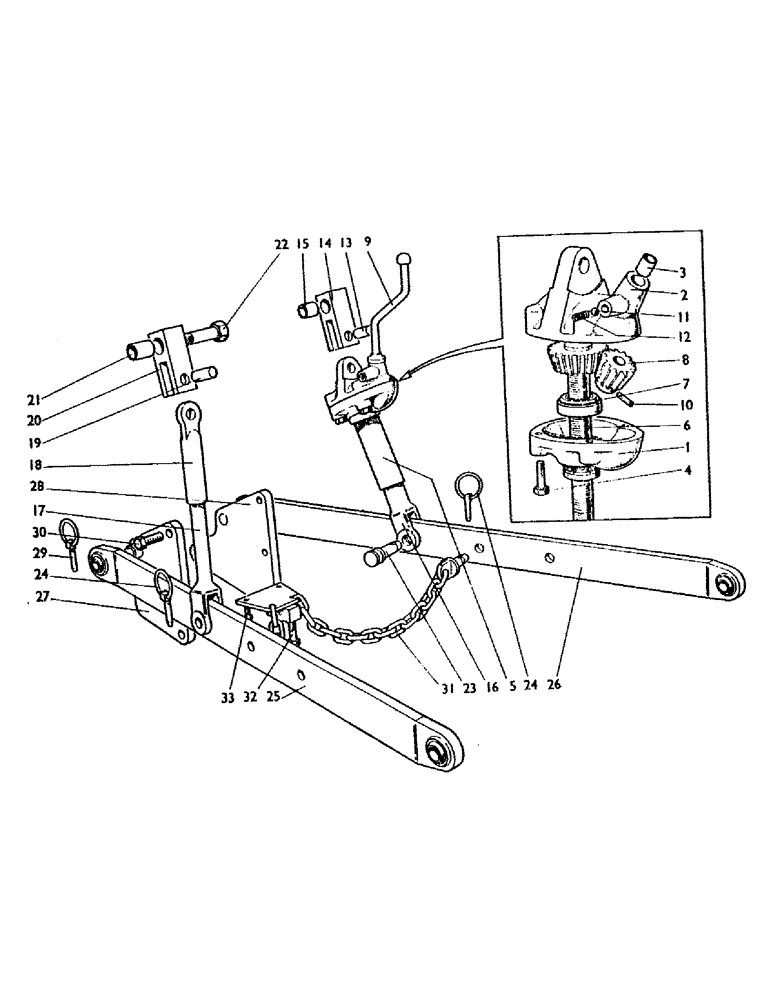

Запчасти Case IH 780 (056) - LIFT RODS AND LOWER LINKS (07) - HYDRAULIC SYSTEM

K913845

NO LONGER SERVICED

LEVER - levelling assembly

1шт.

1

K913166

GEAR

- housing 913845

1шт.

2

K961754

CAP

- gear housing (with bushes) 913845

1шт.

3

K621373

BUSHING

- 913845

2шт.

K32063

PIN

- dowel, 3/16 x 1/2 in. cap to housing, 913845

2шт.

4

K602807

SCREW

SETSCREW - 5/16 UNC x 1 1/4 in. cap to housing, 913845

4шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in. cap to housing, 913845

4шт.

5

K913165

TUBE

- outer 913845

1шт.

6

K913224

BEVEL GEAR

ADJUSTER - levelling screw 913845

1шт.

7

K620181

THRUST BEARING

BEARING - thrust 913845

1шт.

8

K913170

GEAR

- bevel pinion 913845

1шт.

9

K913171

LEVER

- hand 913845

1шт.

10

K623931

SPLIT PIN/SAFETY PIN

SPLIT PIN - safety pin, spring, 1/8 x 11/16 in. 913845

1шт.

11

K620179

BALL

- steel, 7/32 in. 913845

1шт.

12

K625174

SPRING

- 913845

1шт.

K622251

FITTING

- grease nipple, 5/16 BSF 913845

1шт.

13

K901962

PIN

- pivot 913845

1шт.

14

K901960

FORK

- end 913845

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 913845 1/4"-28 NPT x .54" lg

2шт.

15

K901963

BUSHING

- 913845

1шт.

16

K913162

NUT

- adjusting 913845

1шт.

K914199

NO LONGER SERVICED

ROD - lift assembly

1шт.

17

K914198

NO LONGER SERVICED

ROD - lift 914199

1шт.

18

K914197

EYE

- end 914199

1шт.

19

K901962

PIN

- pivot 914199

1шт.

20

K901960

FORK

- end 914199

1шт.

21

K901963

BUSHING

- 914199

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 914199 1/4"-28 NPT x .54" lg

2шт.

22

K601413

BOLT

- 3/4 UNC x 3 3/4 in.

2шт.

K19476

WASHER

- 3/4 in.

2шт.

K607446

NUT

- Cleveloc, 3/4 UNC

2шт.

23

K903399

HITCH PIN

PIN - large, link, 5/8 x 2 3/16 in.

2шт.

24

K66408

PIN

- linch, ring

4шт.

25

K913780

LINK

- lower, left-hand (Category 1)

1шт.

K922064

LINK

- lower, left-hand (Categories 1 and 2)

1шт.

26

K915068

LOWER LINK

LINK - lower, right-hand (Category 1)

1шт.

K922065

LINK

- lower, right-hand (Categories 1 and 2)

1шт.

27

K922074

BRACKET

- hitch, left-hand (replaces 915066)

1шт.

28

K922073

BRACKET

- hitch, right-hand (replaces 915065)

1шт.

K922071

BUSHING

- hitch bracket

2шт.

29

K920359

PIN

- linch, ring

4шт.

30

K603108

SCREW

SETSCREW - 1/2 UNC x 1 1/2 in. brackets to PTO case (replaces 603107)

6шт.

K19484

LOCK WASHER

WASHER - lock, spring, 1/2 in. brackets to PTO case (replaces 603107)

6шт.

31

K926200

CHAIN (AG)

CHAIN - agriculture, check (replaces 913737)

1шт.

32

K600407

BOLT

- 3/8 UNC x 1 7/8 in. check chain to PTO case

1шт.

33

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW - 3/8 UNC x 1 1/8 in. check chain to PTO case

2шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in. check chain to PTO case

3шт.
