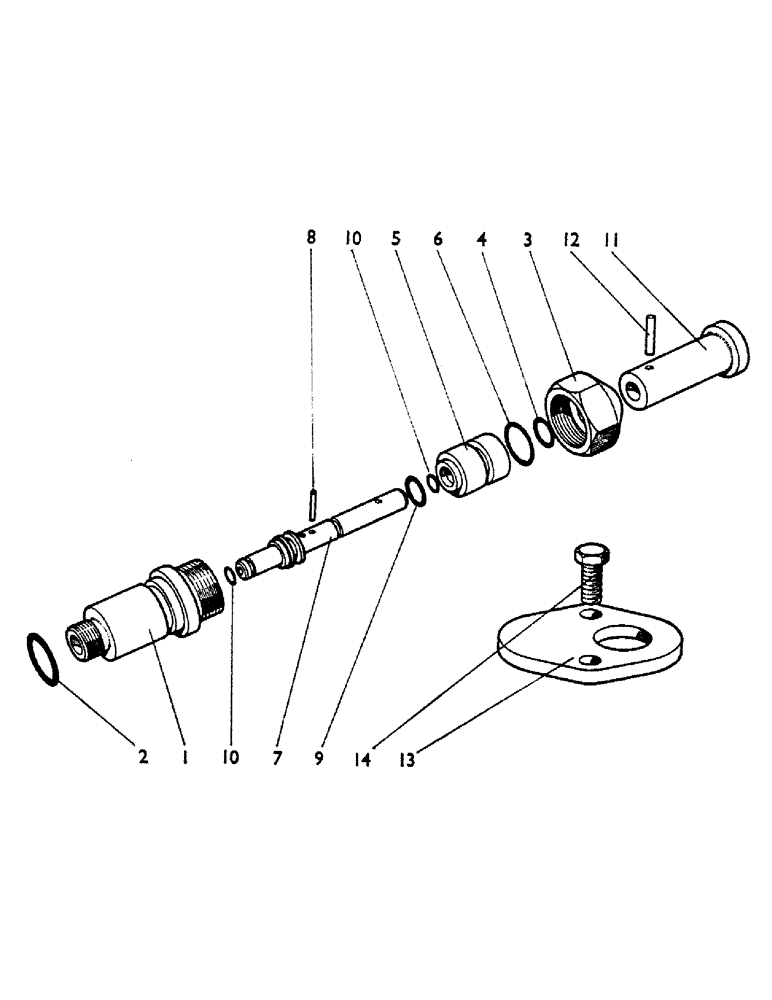

Запчасти Case IH 780 (046) - DUMP VALVE, U939 (07) - HYDRAULIC SYSTEM

K919777

NO LONGER SERVICED

DUMP VALVE ASSEMBLY - Includes: Ref. 1 thru 12

1шт.

1

K918986

SPARE PART

BODY - 919777

1шт.

2

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

- 3/4 in. int. dia., 919777

1шт.

3

K918983

NUT

- 1 in. UNF, special, 919777

1шт.

4

K24554

O-RING

- 3/8 in. int. dia., 919777

1шт.

5

K918985

BUSHING

- 919777

1шт.

6

K31682

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

- 9/16 in. int. dia., 919777

1шт.

7

K962194

SET OF PARTS

PLUNGER - 919777

1шт.

8

K24871

GROOVED PIN,1/8" x 1/2", Type D

Pin, Grooved, , Mills, 919777 1/8" x 1/2", Type D

1шт.

9

K623534

O-RING,0.352" OD x 0.103" Width

- 3/8 in. int. dia., 919777

1шт.

10

K14658

O-RING,0.07" Thk x 0.239" ID

- 1/4 in. int. dia., 919777

1шт.

11

K919666

KNOB

- 919777

1шт.

12

K623724

PIN

- Mills, 1/8 x 5/8 in., 919777

1шт.

13

K918984

SPARE PART

PLATE - cover, rear axle

1шт.

14

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SETSCREW - 5/16 x 1 1/8 in.

2шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

2шт.

K962584

GASKET KIT

KIT - gasket, seal pack

1шт.
