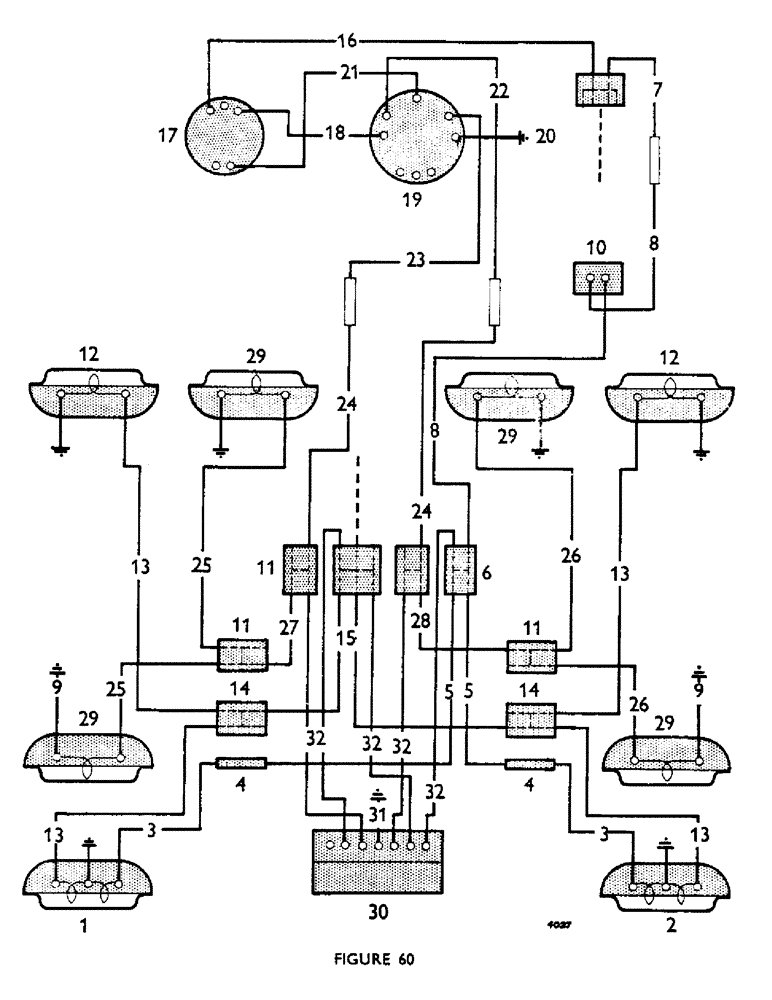

Запчасти Case IH 780 (104) - SIDE AND REAR LAMPS, FULL FENDERS (06) - ELECTRICAL SYSTEMS

1

K923783

TAIL LAMP - stop/rear, left-hand, U1278 (925804) (side and stop/rear)

1шт.

2

K923782

HEADLIGHT

- stop/rear lamp, right-hand, U1278 (925804) (side and stop/rear lamps)

1шт.

3

K925290

STOP

- lead--connector to lamp, U1278 (925804) (side /rear lamps)

2шт.

4

K67916

ELEC CONNECTOR

CONNECTOR - single, U1278 (925804) (side and stop/rear lamps)

2шт.

5

K925284

ELECTRICAL WIRE

WIRE - lead--stop lamp, connector to connector, U1278 (925804) (side and stop/rear lamps)

2шт.

6

K86230

CONNECTOR, ELEC

CONNECTOR - double, U1278 (925804) (side and stop/rear lamps)

1шт.

7

K923642

SPARE PART

LEAD - ignition switch to connector, U1278 (925804) (side and stop/rear lamps)

1шт.

8

K923599

NO LONGER SERVICED

LEAD - stop lamp switch to connector, U1278 (925804) (side and stop/rear lamps)

1шт.

9

K908902

WIRE

LEAD - stop lamps to earth, U1278 (925804) (side and stop/rear lamps)

4шт.

K11519

WASHER

- lock, 3/16 in., U1278 (925804) (side and stop/rear lamps)

4шт.

K617080

NUT

- No. 10 UNF, U1278 (925804) (side and stop/rear lamps)

4шт.

10

K917301

LIGHT SWITCH

SWITCH - stop lamp, U1278 (925804) (side and stop/rear lamps)

1шт.

K10863

SCREW - 4 BA x 3/8 in., U1278 (925804) (side and stop/rear lamps)

2шт.

K19487

WASHER

- spring, 1/8 in., U1278 (925804) (side and stop/rear lamps)

2шт.

K19418

NUT - 4 BA, U1278 (925804) (side and stop/rear lamps)

2шт.

K925310

BRACKET

- switch, U1278 (925804) (side and stop/rear lamps)

1шт.

K624718

SCREW

- 5 BA x 3/4 in. switch to frame platform, U1278 (925804) (side and stop/rear lamps)

2шт.

K19419

NUT

- 5 BA switch to frame platform, U1278 (925804) (side and stop/rear lamps)

2шт.

K19487

WASHER

- spring, 1/8 in. switch to frame platform, U1278 (925804) (side and stop/rear lamps)

2шт.

K621633

CABLE

- clip, U1278 (925804) (side and stop/rear lamps)

2шт.

11

K86230

CONNECTOR, ELEC

CONNECTOR - double, U1278 (925804) (side and stop/rear lamps)

4шт.

12

K921567

INDICATOR LIGHT

LIGHT - indicator, side lamp, U1278 (925804) (side and stop/rear lamps)

2шт.

K615408

SCREW,Pan, #10 - 32 x 1"

- No. 10 UNF x 1 in. side lamps to fenders, U1278 (925804) (side and stop/rear lamps)

8шт.

K626340

RING

- spring washer, 3/16 in. side lamps to fenders, U1278 (925804) (side and stop/rear lamps)

8шт.

13

K925291

LACING, BELT

LACING - belt, lead--side and stop lamps, U1278 (925804) (side and stop/rear lamps)

4шт.

14

K86230

CONNECTOR, ELEC

CONNECTOR - double, U1278 (925804) (side and stop/rear lamps)

2шт.

15

K925283

NO LONGER SERVICED

LEAD - side lamps, U1278 (925804) (side and stop/rear lamps)

2шт.

K916648

NO LONGER SERVICED

CABLE - guard, U1278 (925804) (side and stop/rear lamps)

1шт.

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

- fenders, U1278 (925804) (side and stop/rear lamps)

10шт.

K627703

GROMMET - fenders, U1278 (925804) (side and stop/rear lamps)

4шт.

K627704

GROMMET

- fenders, U1278 (925804) (side and stop/rear lamps)

4шт.

K913554

NO LONGER SERVICED

REFLECTOR - U1278 (925804) (side and stop/rear lamps)

2шт.

K916304

BRACKET

- left-hand, U1278 (925804) (side and stop/rear lamps)

1шт.

K916305

BRACKET

- right-hand, U1278 (925804) (side and stop/rear lamps)

1шт.

K603924

SCREW

- 1/4 UNC x 1/2 in. bracket to fenders, U1278 (925804) (side and stop/rear lamps)

4шт.

K626341

SPRING WASHER

WASHER - lock, spring, 1/4 in. bracket to fenders, U1278 (925804) (side and stop/rear lamps)

4шт.

K607043

NUT

- 1/4 UNC bracket to fenders, U1278 (925804) (side and stop/rear lamps)

4шт.

16

K926316

NO LONGER SERVICED

LEAD - four-way connector to valve, U1234 (925522), flashing direction indicator lamps (optional equipment)

1шт.

17

K913564

INDICATOR LIGHT

LIGHT - indicator, valve--flashing indicators, U1234 (925522), direction lamps (optional equipment)

1шт.

K605633

SCREW

- 1/4 UNC x 1/2 in. valve to instrument panel, U1234 (925522) (flashing direction indicators), lamps (optional equipment)

1шт.

K626341

SPRING WASHER

WASHER - lock, spring, 1/4 in. valve to instrument panel, U1234 (925522) (flashing direction indicators), lamps (optional equipment)

1шт.

K607043

NUT

- 1/4 UNC valve to instrument panel, U1234 (925522) (flashing direction indicators), lamps (optional equipment)

1шт.

18

K926317

VALVE

- lead--switch, U1234 (925522) (flashing direction indicators), lamps (optional equipment)

1шт.

19

K913565

LIGHT SWITCH

SWITCH - U1234 (925522) (flashing direction indicators), lamps (optional equipment)

1шт.

BULB - 12 volt, 2 watt, U1234 (925522) (flashing direction indicators), lamps (optional equipment)

1шт.

20

K923592

ELECTRICAL WIRE

WIRE - switch to earth, U1234 (925522) (flashing direction indicators), lamps (optional equipment)

1шт.

21

K925927

LEAD - valve to switch, U1234 (925522) (flashing direction indicators), lamps (optional equipment)

1шт.

22

K925295

SWITCH

- lead--connector, U1234 (925522) (flashing direction indicators), lamps (optional equipment)

1шт.

23

K925298

SWITCH

- lead, to connector, U1234 (925522) (flashing direction indicators), lamps (optional equipment)

1шт.

24

K925293

ELECTRICAL WIRE

WIRE - lead--connector to connector, U1234 (925522) (flashing direction indicators), lamps (optional equipment)

1шт.

25

K925288

LAMP

- lead--connector to lamps, left-hand, U1234 (925522) (flashing direction indicators) (optional equipment)

2шт.

26

K925289

LAMP

- lead--connector to lamps, right-hand, U1234 (925522) (flashing direction indicators) (optional equipment)

2шт.

27

K925286

ELECTRICAL WIRE

WIRE - lead--lamp, left-hand, U1234 (925522) (flashing direction indicators) (optional equipment)

1шт.

28

K926215

CABLE

- lead--lamp, right-hand, U1234 (925522) (flashing direction indicators) (optional equipment)\

1шт.

29

K925294

LAMP

- U1234 (925522) (flashing direction indicators) (optional equipment)

4шт.

K615408

SCREW,Pan, #10 - 32 x 1"

- No. 10 UNF x 1 in., U1234 (925522) (flashing direction indicators), lamps (optional equipment)

8шт.

K626340

RING

- spring washer, 3/16 in., U1234 (925522) (flashing direction indicators), lamps (optional equipment)

8шт.

K908902

WIRE

LEAD - earth lamps to fenders, U1234 (925522) (flashing direction indicators) (optional equipment)

4шт.

K11519

WASHER

LOCKWASHER - 3/16 in. lamps to fenders, U1234 (925522) (flashing direction indicators) (optional equipment)

4шт.

30

K913566

POINT

- socket--seven-point U1250 (925581) (trailer socket), flashing direction indicator lamps (optional equipment)

1шт.

K917322

WASHER

- special U1250 (925581) (trailer socket), flashing direction indicator lamps (optional equipment)

2шт.

K614496

SCREW - No. 10 UNF x 2 3/4 in., bracket, U1250 (925581) (trailer socket), flashing direction indicator lamps (optional equipment)

3шт.

K626340

RING

- spring washer, 3/16 in. socket to bracket, U1250 (925581) (trailer), flashing direction indicator lamps (optional equipment)

3шт.

K617080

NUT

- No. 10 UNF socket to bracket U1250 (925581) (trailer socket), flashing direction indicator lamps (optional equipment)

3шт.

31

K923592

ELECTRICAL WIRE

WIRE - lead--socket to earth U1250 (925581) (trailer socket), flashing direction indicator lamps (optional equipment)

1шт.

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

- No. 10 UNF x 1/2 in. lead to seat support bracket, U1250 (925581) (trailer socket), flashing direction indicator lamps (optional equipment)

1шт.

K626340

RING

- spring washer, 3/16 in. lead to seat support bracket, U1250 (925581) (trailer socket), flashing direction indicator lamps (optional equipment)

1шт.

K617080

NUT

- No. 10 UNF lead to seat support bracket, U1250 (925581) (trailer socket), flashing direction indicator lamps (optional equipment)

1шт.

32

K925489

HARNESS - connector to socket, U1250 (925581) (trailer socket), flashing direction indicator lamps (optional equipment)

1шт.
