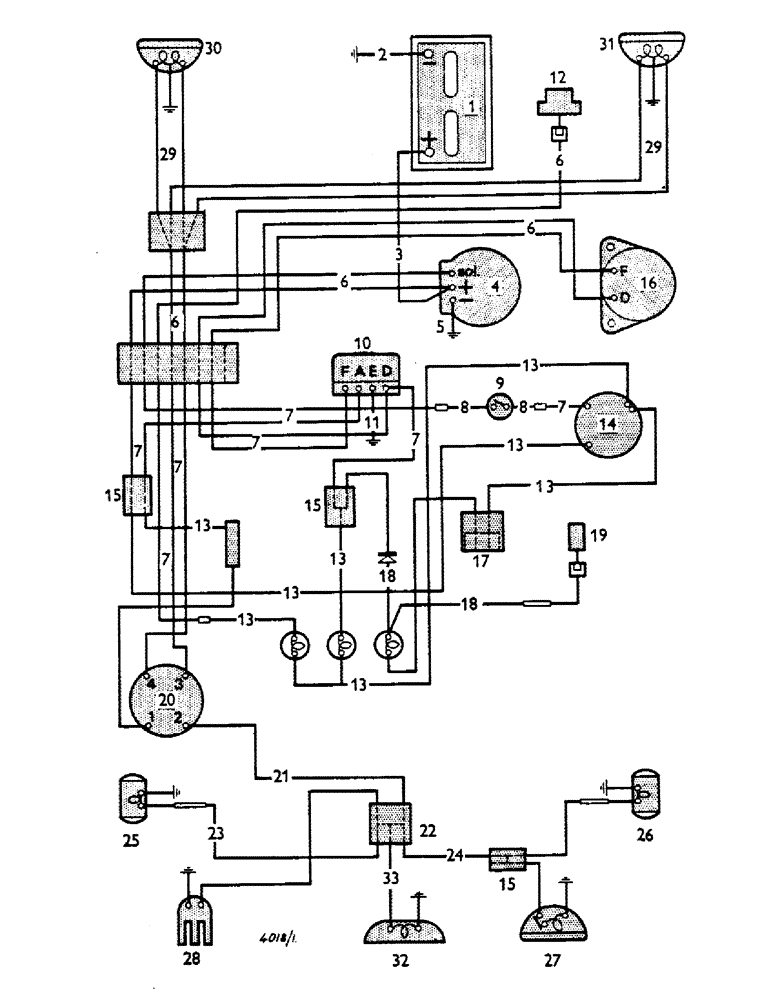

Запчасти Case IH 780 (100) - ELECTRICAL EQUIPMENT (06) - ELECTRICAL SYSTEMS

1

K907789

BATTERY

BATTERY - 12 volt (Exide 6/TXMZ 15L)

1шт.

K912892

COVER

COVER - battery

1шт.

K909760

CLAMP

CLAMP - battery fixing to main frame

1шт.

K908394

BUSHING

SPARE PART BUSHING - seating pad battery fixing to main frame

1шт.

K913957

STUD

STUD - clamping battery fixing to main frame

2шт.

K24892

RATCHET

RATCHET - plate, 1/4 in. battery fixing to main frame

2шт.

K19435

NUT

NUT - wing, 1/4 BSF battery fixing to main frame

2шт.

K626341

SPRING WASHER

WASHER - lock, spring, 1/4 in. battery fixing to main frame

2шт.

K19470

WASHER

WASHER - 1/4 in. battery fixing to main frame

2шт.

K923772

PACKING

PACKING - piece--battery battery fixing to main frame

2шт.

K628100

PLUG

PLUG - 7/16 UNC battery fixing to main frame

2шт.

2

K913945

CABLE

CABLE -, Serial Range: battery-earth

1шт.

K602840

SCREW

SETSCREW - 5/16 UNC x 1/2 in. cable to earth fixing strap

1шт.

K11517

WASHER

WASHER - spring, 1/4 in. cable to earth fixing strap

1шт.

9635082

NUT,5/16" - 18, Gr 5

NUT - 5/16 UNC cable to earth fixing strap

1шт.

3

K914193

CABLE

CABLE -, Serial Range: battery-starter

1шт.

K15518

CLAMP

CLAMP - clip

1шт.

K87560

CONTACT HOUSING

TERMINAL CONNECTOR - rubber cover--starter terminal

1шт.

4

K913007

X

STARTER

1шт.

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

SETSCREW - 3/8 UNC x 1 1/8 in. starter to engine

3шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in., Serial Range: starter-engine

3шт.

5

K918762

CABLE

CABLE -, Serial Range: starter-earth

1шт.

6

K920911

HARNESS

HARNESS - wiring, with half eight-way connector

1шт.

K921276

CONDUIT

CONDUIT

1шт.

K82317

GROMMET

GROMMET

2шт.

K89523

BRACKET

BRACKET - clip, Serial Range: conduit-engine

1шт.

K602738

SCREW

SETSCREW - 1/4 UNC x 7/16 in. conduit to engine (replaces 602700)

1шт.

K19480

SPRING WASHER

WASHER - spring, 1/4 in., Serial Range: conduit-engine

1шт.

K926996

CONDUIT

CONDUIT

1шт.

K621618

CLIP

CLIP - conduit to exhaust manifold stud

1шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in. conduit to exhaust manifold stud

1шт.

280136

NUT,3/8"-16, G8

NUT, , Conduit to exhaust manifold stud 3/8"-16, G8

1шт.

K82317

GROMMET

GROMMET - conduit to exhaust manifold stud

2шт.

K621600

CLIP

CLIP - buckle

2шт.

K12121

SCREW

SCREW - 2 BA x 1/2 in.

1шт.

K626340

RING

RING - spring washer, 3/16 in.

2шт.

K11109

NUT

NUT - 2 BA

2шт.

7

K920912

HARNESS

HARNESS - wiring, with half eight-way connector

1шт.

K621609

CLIP

CLIP

1шт.

8

K923361

CABLE

CABLE - lead--safety switch (replaces 921813)

2шт.

9

K916749

NEUTRAL START SWITCH

SWITCH - safety, starter

1шт.

10

K908901

REGULATOR

REGULATOR - 11 amp dynamo

1шт.

10

K928729

REGULATOR

REGULATOR - 22 amp dynamo

1шт.

K603926

SCREW

SCREW - 1/4 UNC x 3/4 in., Serial Range: regulator-bracket

2шт.

K626341

SPRING WASHER

WASHER - lock, spring, 1/4 in., Serial Range: regulator-bracket

2шт.

K607043

NUT

NUT - 1/4 UNC, Serial Range: regulator-bracket

2шт.

11

K924142

CABLE

CABLE - lead--regulator to earth (replaces 921174)

1шт.

K925268

BLADE

BLADE -, Serial Range: connector--lead-earth

1шт.

12

K903851

PRESSURE SWITCH

CONNECTION - electric, switch--oil warning light

1шт.

K915148

NO LONGER SERVICED

COVER - oil warning switch

1шт.

13

K920913

HARNESS

HARNESS - wiring, instrument panel

1шт.

14

K920923

IGNITION SWITCH

SWITCH - ignition, isolating and starter (Lucas 54324154/128SA)

1шт.

K962338

KEY

KEY - (replaces 920929)

1шт.

15

K86230

CONNECTOR, ELEC

CONNECTOR CONNECTOR - double

2шт.

16

K913986

NO LONGER SERVICED

DYNAMO - 11 amp (Lucas C40A)

1шт.

16

K928643

GENERATOR

GENERATOR - dynamo, 22 amp (Lucas 40T)

1шт.

103801A1R

REMAN-ALTERNATOR

REMANUFACTURED 12 VOLT, 61 AMP ALTERNATOR - NA Only

1шт.

103801A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 61 AMP ALTERNATOR - N.A. Only

1шт.

16

C7NN10000CLPR

REMAN-GENERATOR

Remanufactured Generator, 12 volt 22 ampere

1шт.

16

C7NN10000CLPC

CORE-GENERATOR

Return Number, Generator, 12 volt 22 ampere

1шт.

K928658

FAN

FAN

1шт.

K928717

GUARD

GUARD - pulley

1шт.

K928718

SPARE PART COVER

1шт.

K13095

CLIP

CLIP - hose, 4 in. dia.

1шт.

K914251

ADJUSTER

ADJUSTER - strap

1шт.

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 7/8 in. adjuster strap

1шт.

K902420

NO LONGER SERVICED

WASHER - 5/16 in. adjuster strap

1шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in. adjuster strap

1шт.

K912758

BRACKET

BRACKET - support

1шт.

K602902

SCREW

SETSCREW - 3/8 UNC x 3/4 in. bracket to cylinder block

2шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in. bracket to cylinder block

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1 in. bracket to dynamo

2шт.

9635082

NUT,5/16" - 18, Gr 5

NUT - 5/16 UNC bracket to dynamo

2шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in., Serial Range: bracket-dynamo

2шт.

K900757

PULLEY

PULLEY - dynamo

1шт.

17

K925309

CONNECTOR, ELEC

CONNECTOR CONNECTOR - four-way

1шт.

18

K921439

HARNESS

HARNESS - wiring, oil filter warning light

1шт.

19

K921317

SENDER UNIT

SWITCH - oil filter warning light

1шт.

K928304

SHIM

SHIM - guard--switch

1шт.

20

K912388

IGNITION SWITCH

SWITCH - ignition, lighting (Lucas 54033351) 5-position

1шт.

21

K923775

ELECTRICAL WIRE

WIRE WIRE - lead--switch to side, tall and flood lamps (replaces 921074)

1шт.

22

K908905

CONNECTOR, ELEC

CONNECTOR CONNECTOR - three-way

1шт.

23

K925196

NO LONGER SERVICED

LEAD - connector to left-hand lamp

1шт.

24

K925283

NO LONGER SERVICED

LEAD - connector to right-hand lamp

1шт.

K914234

CABLE

CABLE - guard

1шт.

25

K921080

STOP LIGHT

LIGHT - stop, side/rear lamp, left-hand see Figure 98

1шт.

26

K921079

LAMP

LAMP - side/rear, right-hand see Figure 98

1шт.

*

BULB - 12 volt, 6 watt, double contact

2шт.

K615404

SCREW

SCREW - No. 10 UNF x 1 1/2 in. (replaces 614943)

4шт.

K617080

NUT

NUT - No. 10 UNF

4шт.

K11519

WASHER

WASHER - shakeproof, 3/16 in.

4шт.

K920927

CABLE

CABLE - tube, left-hand

1шт.

K920926

CABLE

CABLE - tube, right-hand

1шт.

K24589

GROMMET

GROMMET

2шт.

27

K921081

LAMP

FLOODLAMP - rear (see Figure 98)

1шт.

*

BULB - pre-focus, 28 mm., 12 volt, 36 watt

1шт.

28

K921077

SOCKET/RECEPTACLE

SOCKET - receptacle, two-point--trailer connection

1шт.

K960896

SPARE PART PLUG - trailer socket

1шт.

K605633

SCREW

SCREW - 1/4 UNC x 1/2 in. (replaces 603924)

1шт.

K607043

NUT

NUT - 1/4 UNC

1шт.

K626341

SPRING WASHER

WASHER - lock, spring, 1/4 in.

1шт.

29

K921073

ELECTRICAL WIRE

WIRE WIRE - lead--connector to headlamps double filament headlamps

1шт.

K919114

CLIP

CLIP - leads to bonnet double filament headlamps

6шт.

K915874

HEADLAMP

HEADLAMP - 12 volt, 40/40 watt, sealed beam unit, double filament headlamps (see Page 91)

2шт.

K920948

NO LONGER SERVICED

LEAD - connector to headlamps single filament headlamps

1шт.

K903822

WASHER

WASHER - clip--leads to bonnet single filament headlamps

9шт.

K915141

LAMP

HEADLAMP - 12 volt, 35 watt, sealed beam unit, single filament headlamps (see Figure 98)

2шт.

K914196

ELECTRICAL WIRE

WIRE WIRE - lead--headlamp to earth single filament headlamps

2шт.

K921072

HARNESS

HARNESS - lead--connector to headlamps side-mounted headlamps

1шт.

K903822

WASHER

WASHER - clip--headlamps to bonnet side-mounted headlamps

4шт.

K919114

CLIP

CLIP - side-mounted headlamps

4шт.

30

K921082

LAMP

HEADLAMP - left-hand side-mounted headlamps (See Figure 98)

1шт.

31

K921083

LAMP

HEADLAMP - right-hand side-mounted headlamps (See Figure 98)

1шт.

*

BULB - pre-focus, 28 mm., 12 volt, 35/35 watt, side-mounted headlamps

2шт.

32

K82303

SPARE PART

LAMP - number-plate, U1013 (918299) (rear number-plate lamp -- standard seat)

1шт.

*

BULB - 12 volt, 6 watt, single contact, U1013 (918299) (rear number-plate lamp -- standard seat)

1шт.

K12355

NUT

NUT - domed, 2 BA, U1013 (918299) (rear number-plate lamp -- standard seat)

2шт.

K902460

SUPPORT

SUPPORT - bracket, U1013 (918299) (rear number-plate lamp -- standard seat)

1шт.

K603924

SCREW

SCREW - 1/4 UNC x 1/2 in. bracket to seat, U1013 (918299) (rear number-plate lamp -- standard seat)

3шт.

K607043

NUT

NUT - 1/4 UNC bracket to seat, U1013 (918299) (rear number-plate lamp -- standard seat)

3шт.

K626341

SPRING WASHER

WASHER - lock, spring, 1/4 in. bracket to seat, U1013 (918299) (rear number-plate lamp -- standard seat)

3шт.

33

K921078

COIL

COIL - lead--connector to number-plate lamp, U1013 (918299) (rear number-plate lamp -- standard seat)

1шт.

K621644

CLIP

CLIP - lead to seat, U1013 (918299) (rear number-plate lamp -- standard seat)

1шт.

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

GROMMET - seat, U1013 (918299) (rear number-plate lamp -- standard seat)

1шт.

K921076

PLATE

PLATE - number lamp, U1014 (918300) (rear number-plate lamp -- deluxe suspension seat)

1шт.

*

BULB - 12 volt, 6 watt, single contact, U1014 (918300) (rear number-plate lamp -- deluxe suspension seat)

1шт.

K913984

PLATE

PLATE - number, U1014 (918300) (rear number-plate lamp -- deluxe suspension seat)

1шт.

K603926

SCREW

SCREW - 1/4 UNC x 3/4 in., U1014 (918300) (rear number-plate lamp -- deluxe suspension seat)

2шт.

K607043

NUT

NUT - 1/4 UNC, U1014 (918300) (rear number-plate lamp -- deluxe suspension seat)

2шт.

K626341

SPRING WASHER

WASHER - lock, spring, 1/4 in., U1014 (918300) (rear number-plate lamp -- deluxe suspension seat)

2шт.

K903822

WASHER

WASHER - clip--lead to number-plate, U1014 (918300) (rear number-plate lamp -- deluxe suspension seat)

1шт.

K621644

CLIP

CLIP - lead to seat (replaces 621642), U1014 (918300) (rear number-plate lamp -- deluxe suspension seat)

1шт.

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

SCREW - No. 10 UNF x 1/2 in., U1014 (918300) (rear number-plate lamp -- deluxe suspension seat)

1шт.

K617080

NUT

NUT - No. 10 UNF, U1014 (918300) (rear number-plate lamp -- deluxe suspension seat)

1шт.

K626340

RING

RING - spring washer, 3/16 in., U1014 (918300) (rear number-plate lamp -- deluxe suspension seat)

1шт.

K924218

NO LONGER SERVICED

LEAD - lamp to seat support, U1014 (918300) (rear number-plate lamp -- deluxe suspension seat)

1шт.
