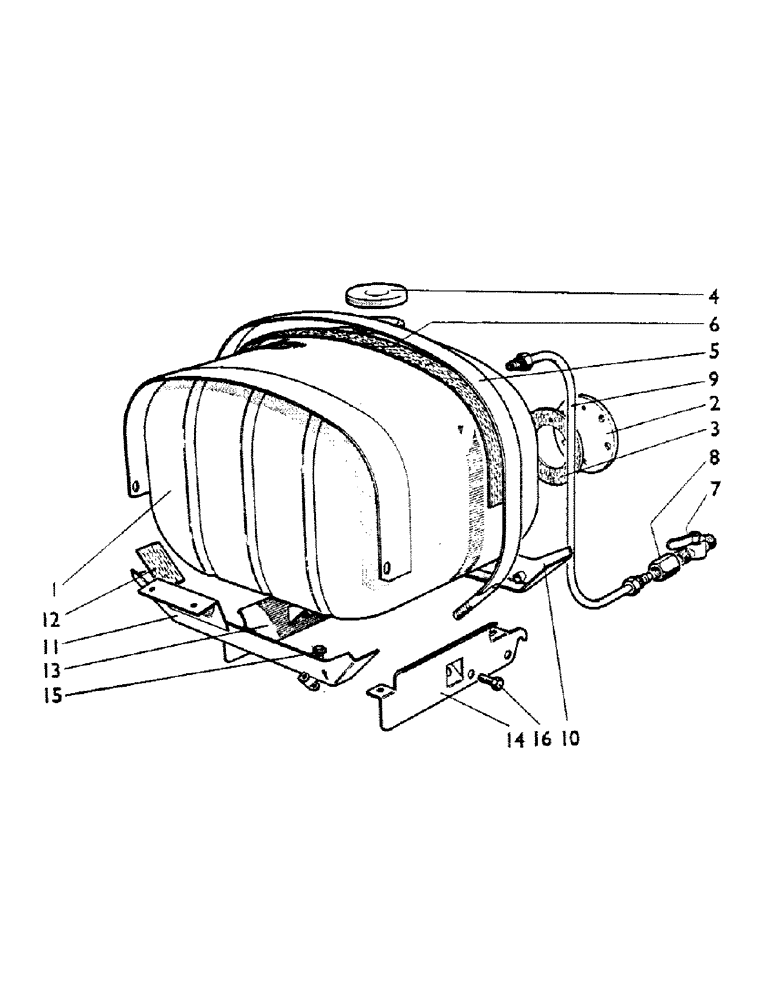

Запчасти Case IH 780 (021) - FUEL TANK AND FITTINGS (01) - ENGINE

1

K962380

TANK

- fuel (supersedes 913335 and 919008)

1шт.

2

K962140

PLATE

- blanking, fuel gauge aperture 962380

1шт.

3

K916485

GASKET

- 962380

1шт.

K617980

STUD

- No. 10 UNF x 11/16 in. 962380

5шт.

K626340

RING

- spring washer, 3/16 in. 962380

5шт.

K617080

NUT

- No. 10 UNF 962380

5шт.

4

K901983

CAP

- filler

1шт.

K19591

PLUG

- drain, 1/8 BSP

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

- fibre, 3/8 in. (replaces 16732)

1шт.

5

K912349

TANK

- strap

1шт.

6

K17721

PAD

- tank strap

1шт.

280136

NUT,3/8"-16, G8

2шт.

K19482

SPRING WASHER

spring, 3/8 in.

2шт.

7

K622061

VALVE

- fuel tap optional equipment

1шт.

8

K626024

FITTING

- union, 1/2 x 1/2 UNF optional equipment

1шт.

K626950

WASHER

- fibre, 1/2 in.

2шт.

K19501

WASHER

WASHER - fibre, 1/2 in.

1шт.

K14573

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

- 5/16 in. int. dia.

1шт.

K626951

WASHER

- fibre, 7/16 in., O.D.

1шт.

9

K913388

PIPE

- fuel, tank to feed pump

1шт.

10

K913336

TANK

- support, front

1шт.

11

K920919

SUPPORT - tank, rear

1шт.

12

K89449

PAD

- seating

4шт.

13

K913341

BRACKET

- support, left-hand

1шт.

14

K913342

TANK

- support bracket, right-hand

1шт.

15

K602702

SCREW

SETSCREW - 1/4 UNC x 5/8 in., Serial Range: supports-brackets

4шт.

K607000

NUT

- 1/4 UNC, Serial Range: supports-brackets

4шт.

K19480

SPRING WASHER

- spring, 1/4 in., Serial Range: supports-brackets

4шт.

K19470

WASHER

- 1/4 in., Serial Range: supports-brackets

2шт.

16

K602982

SCREW,3/8" - 16 x 3/4", Gr S

- 3/8 UNC x 3/4 in. brackets to clutch housing

4шт.

K19482

SPRING WASHER

spring, 3/8 in. brackets to clutch housing

4шт.
