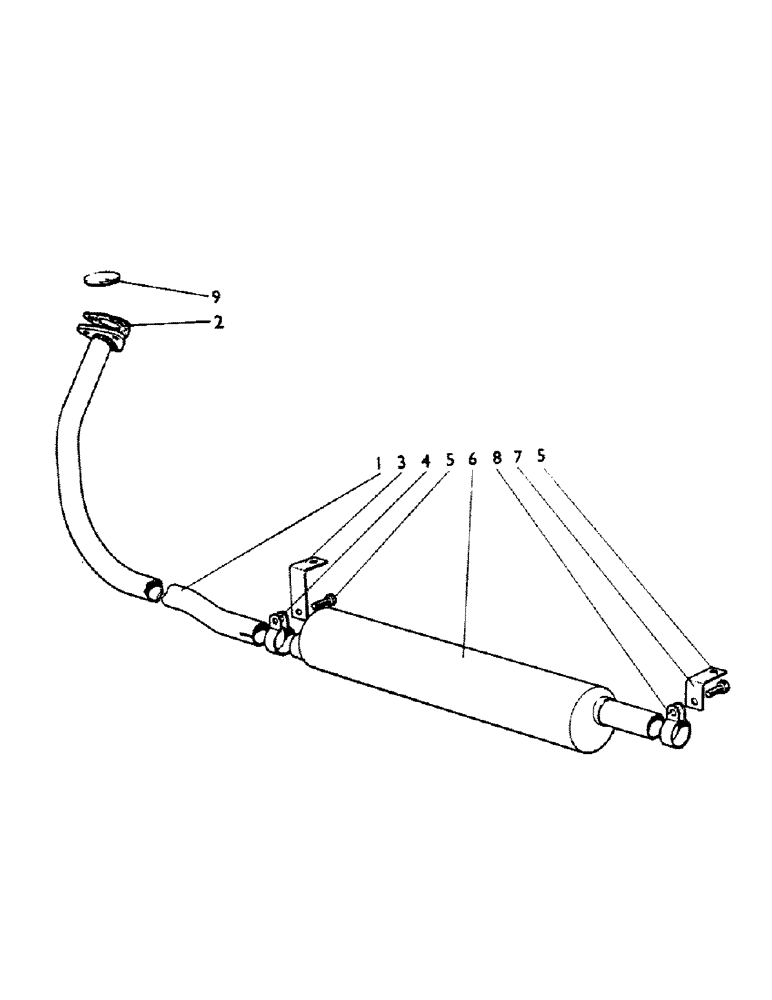

Запчасти Case IH 780 (020) - 911418, DOWNSWEPT EXHAUST, U716, OPTIONAL EQUIPMENT (01) - ENGINE

K914087

MANIFOLD ASSY

- downswept exhaust

1шт.

1

K915377

NO LONGER SERVICED

PIPE - exhaust

1шт.

2

K912441

GASKET

1шт.

280136

NUT,3/8"-16, G8

3шт.

3

K915406

SUPPORT

- strap--front

1шт.

K603306

BOLT

- setscrew, 5/8 UNC x 1 1/2, Serial Range: in.--strap-frame

1шт.

K19475

WASHER

- 5/8 in.

2шт.

K19485

WASHER

- spring, 5/8 in.

1шт.

4

K914853

CLIP

- front

1шт.

5

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW - 5/16 UNC x 3/4 in.

4шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

3шт.

K19471

WASHER

- 5/16 in.

3шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

4шт.

6

K910539

MUFFLER

- silencer

1шт.

7

K913933

SUPPORT

- strap--rear

1шт.

8

K10455

CLIP

- rear

1шт.

K914849

NO LONGER SERVICED

PIPE - tail

1шт.

K914852

CLIP

- tail pipe

1шт.

9

K914347

INSERT

- bonnet aperture

1шт.
