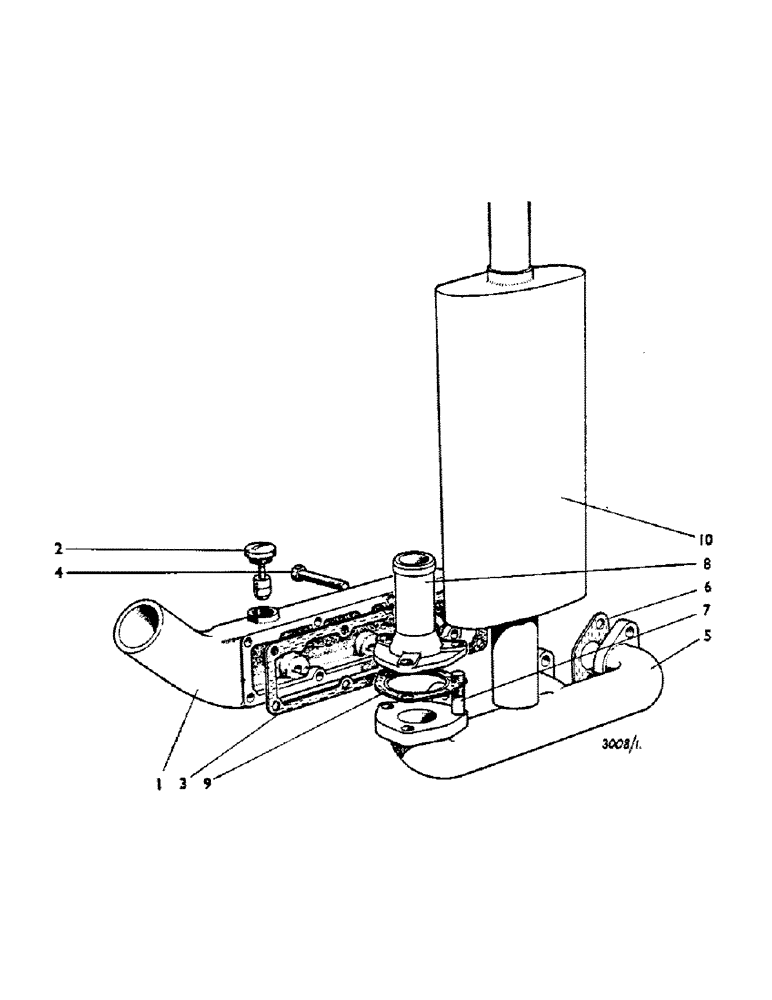

Запчасти Case IH 780 (019) - MANIFOLDS AND EXHAUST (01) - ENGINE

1

K914000

MANIFOLD

- air inlet

1шт.

K623850

PLUG

- 7/8 BSF alternatives

1шт.

K619528

PLUG

- 7/8 UNF alternatives

1шт.

K626784

WASHER,23.24mm ID x 33.34mm OD x 2.34mm Thk

- sealing, 7/8 in.

1шт.

2

K906039

PLUG

- ether

1шт.

3

K907911

GASKET

1шт.

4

K600325

BOLT

- 5/16 UNC X 2 in. (replaces 600209)

8шт.

K19471

WASHER

- 5/16 in.

8шт.

5

K907910

MANIFOLD

- upswept exhaust

1шт.

K917465

NO LONGER SERVICED

PIPE - 11 amp dynamo exhaust manifold drain

1шт.

K929066

PIPE - 22 amp dynamo exhaust manifold drain

1шт.

K617950

NIPPLE, LUBE

NIPPLE - lube, tubing nut exhaust manifold drain

1шт.

K622402

FERRULE

- olive exhaust manifold drain

1шт.

K914087

MANIFOLD ASSY

- downswept exhaust

1шт.

6

K900771

NO LONGER SERVICED

GASKET

3шт.

280136

NUT,3/8"-16, G8

9шт.

7

K608203

STUD

- 3/8 UNC x 1 7/16 in.

3шт.

8

K928274

FLANGE

- exhaust (replaces 912440)

1шт.

9

K912441

GASKET

1шт.

10

K926834

MUFFLER

- silencer (replaces 914137)

1шт.
