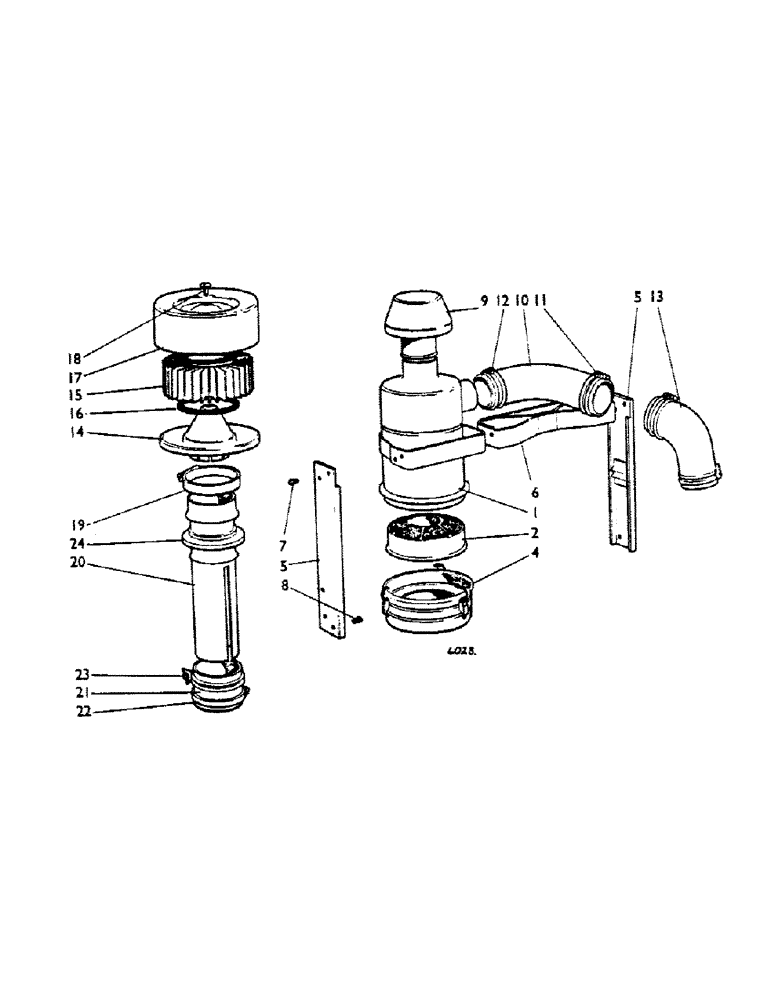

Запчасти Case IH 780 (018) - AIR CLEANER (01) - ENGINE

1

K921492

HOUSING

- air cleaner (complete)

1шт.

2

K920813

SCREEN

- lower element 921492

1шт.

4

K920810

NO LONGER SERVICED

BOWL - (with toggle clips) 921492

1шт.

5

K917117

STRAP

- support bracket--air cleaner

2шт.

6

K917969

BRACKET

- tie

1шт.

7

K602803

BOLT

- setscrew, 5/16 UNC x 3/4 in.--bracket to air cleaner

6шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

6шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

6шт.

8

K602803

BOLT

- setscrew, 5/16 UNC x 3/4 in.--bracket to front extension

4шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

4шт.

9

K920811

NO LONGER SERVICED

PRE-CLEANER

1шт.

10

K917972

INTAKE AIR HOSE,2.00" ID, 2.25" ID, SAE J14 Class SC

Air Cleaner to Radiator 2.00" ID, 2.25" ID, SAE J14 Class SC

1шт.

11

K622009

NO LONGER SERVICED

HOSE - clip, 2 5/8 in. dia.

2шт.

12

K622007

NO LONGER SERVICED

HOSE - clip, 2 3/8 in. dia.

2шт.

13

K912041

HOSE

- pipe--radiator to manifold 603212 onward

1шт.

13

K908315

HOSE

- pipe--radiator to manifold, Serial Range: 600001-603211

1шт.

K917092

CLEANER

PRE-CLEANER - (paper element type) (AC Delco), U824 (911807) (paper element pre-cleaner)

1шт.

14

K917861

BODY - U824 (911807) (paper element pre-cleaner)

1шт.

15

K913601

CLEANER

- paper element 917092, U824 (911807) (paper element pre-cleaner)

1шт.

16

K917863

RING

- sealing 917092, U824 (911807) (paper element pre-cleaner)

2шт.

17

K917862

COVER

- 917092, U824 (911807) (paper element pre-cleaner)

1шт.

18

K917864

SCREW

- 917092, U824 (911807) (paper element pre-cleaner)

1шт.

K921165

WASHER - fibre 917092, U824 (911807) (paper element pre-cleaner)

1шт.

19

K13083

NO LONGER SERVICED

HOSE - clip--pre-cleaner, U824 (911807) (paper element pre-cleaner)

1шт.

20

K917094

EXTENSION PIPE - 8 3/4 in., U824 (911807) (paper element pre-cleaner)

1шт.

21

K917048

SLEEVE

- rubber, U824 (911807) (paper element pre-cleaner)

1шт.

22

K621933

CLIP

- hose, air cleaner, U824 (911807) (paper element pre-cleaner)

1шт.

23

K621940

CLIP - hose, extension, U824 (911807) (paper element pre-cleaner)

1шт.

24

K917010

FLANGE

- dust, U824 (911807) (paper element pre-cleaner)

1шт.

K924272

PRECLEANER

PRE-CLEANER - (paper element type) (Purolator), U1159 (918597) (paper element pre-cleaner)

1шт.

K922630

AIR FILTER

FILTER - air, element, U1159 (918597) (paper element pre-cleaner)

1шт.

K920068

PIPE

- extension, 9 1/2 in., U1159 (918597) (paper element pre-cleaner)

1шт.

K917048

SLEEVE

- rubber, U1159 (918597) (paper element pre-cleaner)

1шт.

K12755

CLIP

- hose, 2 3/8 in. dia., U1159 (918597) (paper element pre-cleaner)

2шт.

K917010

FLANGE

- dust, U1159 (918597) (paper element pre-cleaner)

1шт.

K915275

INLET MANIFOLD

PIPE - extension, 32 in., U825 (911809) (air cleaner extension)

1шт.

K917048

SLEEVE

- rubber, U825 (911809) (air cleaner extension)

1шт.

K621933

CLIP

- hose, air cleaner, U825 (911809) (air cleaner extension)

1шт.

K621940

CLIP - hose, extension, U825 (911809) (air cleaner extension)

1шт.

K917010

FLANGE

- dust, U825 (911809) (air cleaner extension)

1шт.
