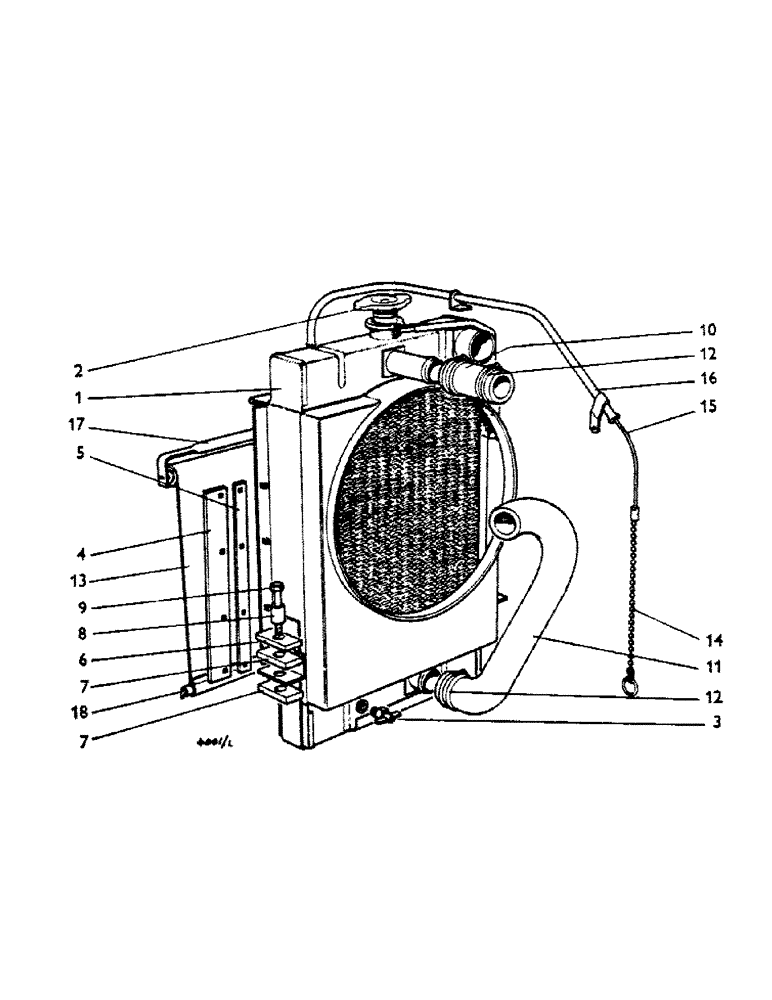

Запчасти Case IH 780 (017) - RADIATOR AND BLIND (01) - ENGINE

1

K922737

RADIATOR

- 2 1/4 in. block (7 gills/in.), 603212 onward

1шт.

1

K922736

RADIATOR

- 2 1/4 in. block (8 gills/in.), 603212 onward

1шт.

1

K921582

RADIATOR

- 50 mm. block, Serial Range: 600001-603211

1шт.

2

K922544

CAP

- filler (for 922737) 603212 onward

1шт.

2

K924456

NO LONGER SERVICED

CAP - filler (for 922736) 603212 onward

1шт.

2

K906196

CAP

- filler (for 921582), Serial Range: 600001-603211

1шт.

3

K622060

PLUG, DRAIN

PLUG - drain tap, 1/4 BSP

1шт.

K19501

WASHER

WASHER - fibre, 1/2 in.

1шт.

4

K920354

LACING, BELT

LACING - belt, beading supplied with radiator

2шт.

5

K920355

STRIP

- stiffening, supplied with radiator

2шт.

K926609

SUPPORT

- plate

2шт.

6

K921837

SHIM

- clamping plate 603212 onward

2шт.

6

K908822

NO LONGER SERVICED

PLATE - clamping, Serial Range: 600001-603211

2шт.

7

K921836

WEDGE

- foot packing 603212 onward

4шт.

7

K908824

NO LONGER SERVICED

WEDGE - foot packing, Serial Range: 600001-603211

4шт.

8

K908823

TUBE,0.562" OD x 0.875" L

- distance

2шт.

9

K600406

BOLT

- 3/8 UNC x 1 3/4 in.

2шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in.

2шт.

10

K37575

HOSE

- radiator inlet

1шт.

11

K915206

HOSE

- radiator outlet 603212 onward

1шт.

11

K912034

HOSE

- radiator outlet, Serial Range: 600001-603211

1шт.

12

K13078

BRACKET

- hose clip, 1 7/8 in. dia.

3шт.

K13079

NO LONGER SERVICED

HOSE - clip, 2 in. dia.--water pump inlet

1шт.

13

K912318

RADIATOR

- blind U1213 (922269), 603212 onward (optional equipment)

1шт.

14

K913185

BALL

- chain U1213 (922269), 603212 onward (optional equipment)

1шт.

15

K924668

SPARE PART

CONTROL - cord U1213 (922269), 603212 onward (optional equipment)

1шт.

16

K912910

TUBE

- control cord U1213 (922269), 603212 onward (optional equipment)

1шт.

17

K912319

ROD

- pull U1213 (922269), 603212 onward (optional equipment)

1шт.

18

K921739

ROD

- anchor U1213 (922269), 603212 onward (optional equipment)

1шт.

K19520

PIN

- split, 1/16 x 3/8 in. U1213, 603212 onward (922269) (optional equipment)

2шт.

13

K912318

RADIATOR

- blind U624 (911291), 600001 to 603211 (optional equipment)

1шт.

14

K913185

BALL

- chain U624 (911291), 600001 to 603211 (optional equipment)

1шт.

15

K913392

ROPE

- control cord U624 (911291), 600001 to 603211 (optional equipment)

1шт.

16

K912910

TUBE

- control cord U624 (911291), 600001 to 603211 (optional equipment)

1шт.

17

K912319

ROD

- pull U624 (911291) (optional, 600001 to 603211 equipment)

1шт.

18

K912320

ANCHOR - U624 (911291) (optional, 600001 to 603211 equipment)

1шт.

K19520

PIN

- split, 1/16 x 3/8 in. U624, 600001 to 603211 (911291) (optional equipment)

2шт.
