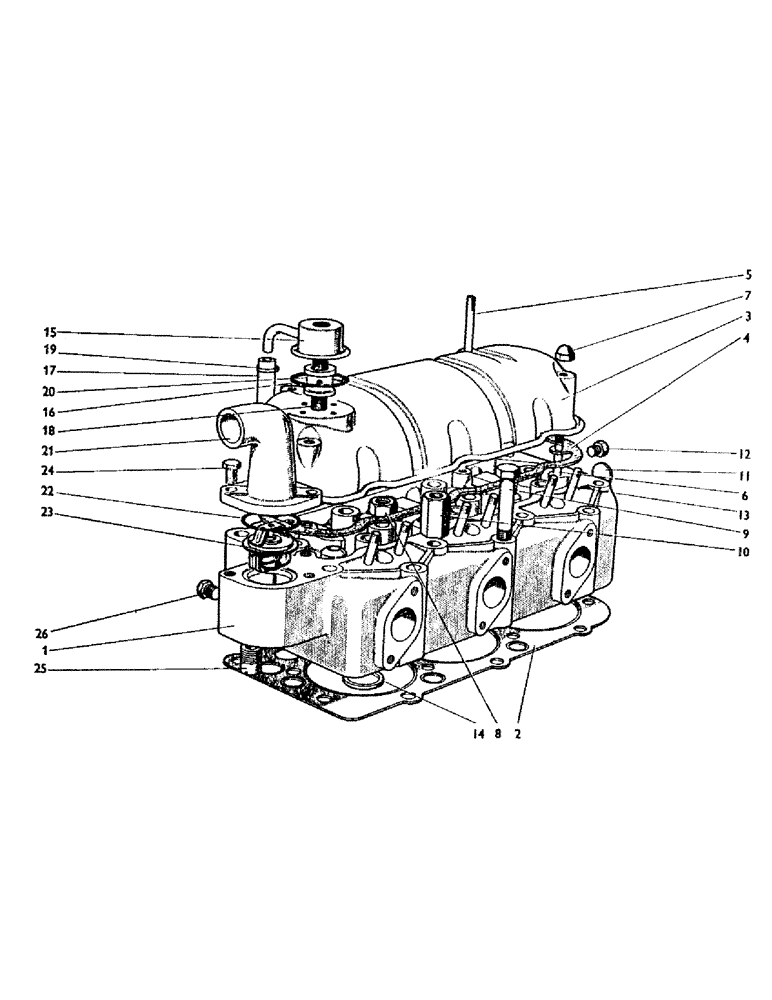

Запчасти Case IH 780 (010) - CYLINDER HEAD (01) - ENGINE

1

K962566

CYLINDER

- head (with valve inserts and plugs), Engine 5584 onward

1шт.

1

K961731

NO LONGER SERVICED

CYLINDER - head (with valve inserts and plugs), Engine, Serial Range: 1001-5583

1шт.

2

K914384

GASKET

-, Serial Range: head-block

1шт.

3

K921488

COVER

- cylinder head

1шт.

4

K907338

GASKET,3.97mm Thk

-, Serial Range: cover-head

1шт.

5

K608118

STUD

- 5/16 UNC x 3 7/16 in. cover replaces 608119

2шт.

6

K608111

STUD

- 5/16 UNC x 3 in. cover

2шт.

K14988

WASHER

- copper asbestos, 5/16 in. cover

4шт.

7

K607252

NUT

- domed, 5/16 UNC cover

4шт.

8

K617581

NUT

- special, 1/2 UNF cylinder head

4шт.

9

K600870

BOLT

- special, 1/2 UNC x 4 1/4 in. cylinder head

9шт.

10

K906898

NUT

- lifting cylinder head

2шт.

K900431

PLUG

- taper

3шт.

11

K623810

PLUG

- welch, 1 in.

2шт.

12

K19591

PLUG

- flanged, 1/8 BSP

1шт.

K16732

WASHER

- copper, 3/8 in.

1шт.

K608203

STUD

- 3/8 UNC x 1 7/16 in.--exhaust manifold

5шт.

K608214

STUD

- 3/8 UNC x 2 in.--exhaust manifold

1шт.

13

K608107

STUD

- 5/16 UNC x 2 11/16 in.--injector

6шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

6шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in

6шт.

14

K921246

INSERT

- inlet seat Engine 5584 onward

3шт.

K921247

INSERT

- exhaust seat Engine 5584 onward

3шт.

14

K905202

INSERT

- inlet seat Engine, Serial Range: 1001-5583

3шт.

K62034

INSERT

- exhaust seat Engine, Serial Range: 1001-5583

3шт.

15

K921489

COVER

- engine breather

1шт.

16

K626901

O-RING,40554" ID x 40575" OD x 0.12"

- O-ring, 1 5/8 in. int. dia. engine breather

1шт.

17

K920676

PIPE

- hose engine breather

1шт.

18

K920677

BREATHER

- connection engine

1шт.

19

K13069

HOSE

- clip, 3/4 in. engine breather replaces 621668

1шт.

20

K909672

DISTRIBUTOR

- distance piece engine breather

1шт.

K626443

WASHER

- copper, 1/2 in. engine breather

1шт.

425-158

JAM NUT,Jam, 1/2"-20, G5

LOCKNUT - 1/2 UNF, Engine breather

1шт.

21

K921853

OUTLET

- pipe--water outlet 603212 onward

1шт.

21

K908416

NO LONGER SERVICED

PIPE - water outlet, Serial Range: 600001-603211

1шт.

22

K68951

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

-138, 90 Duro, 2.112" ID x .103" Thk

1шт.

23

K900368

THERMOSTAT

1шт.

K910411

GASKET

1шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

2шт.

24

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1 in.

2шт.

K915330

SEALING RING

- rubber seal--pump to cylinder head Engine 5584 onward

1шт.

25

K904195

FITTING

- connection--by-pass Engine, Serial Range: 1001-5583

1шт.

K902765

PIPE

- oil, cylinder, Serial Range: block-head

1шт.

26

K619525

PLUG

- 5/8 UNF

1шт.

K626444

WASHER

- copper, 5/8 in.

1шт.
