Запчасти Case IH 780 (078) - HYDRAULIC RAM, PART OF U733, POWER-ASSISTED STEERING Steering & Front Axle

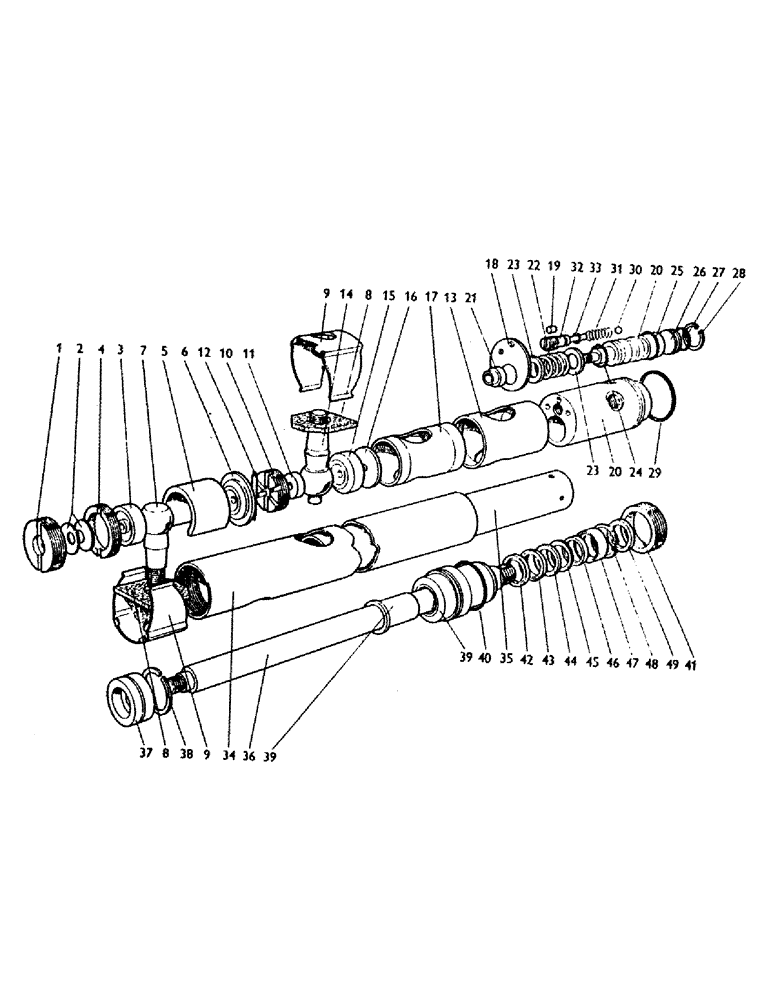

Схема запчастей Case IH 780 - (078) - HYDRAULIC RAM, PART OF U733, POWER-ASSISTED STEERING Steering & Front Axle
49
42
47
11
33
39
14
19
48
15
38
37
20
39
46
28
9
22
26
2
6
1
23
34
41
32
35
18
40
5
7
10
36
29
13
16
43
27
8
31
4
45
21
8
30
9
23
24
25
17
44
12
3
20

Артикул

Название

Примечание

Количество

K915483

CYLINDER

- hydraulic ram assembly

1шт.

1

K960796

COVER

- end

1шт.

K960797

NO LONGER SERVICED

NIPPLE - grease

2шт.

K960799

PIN

- split

1шт.

2

K960785

DISC

- Belleville washer

4шт.

3

K960794

BALL

- cup

1шт.

4

K960795

LOCK

- ring

1шт.

5

K960793

BUSHING

- spacer--ball cups

1шт.

6

K960791

BALL

- cup

1шт.

7

K960792

BALL

- pin--steering lever

1шт.

K960825

NUT

- ball pin

1шт.

8

K960801

PAD

- grease retainer

2шт.

9

K960800

RING

- spring cover

2шт.

10

K961987

HOLDER

- ball cup

1шт.

11

K960858

BALL

- cup

1шт.

12

K960860

SPRING

- clip--ball cup locking

1шт.

13

K960790

SLEEVE

- locating

1шт.

14

K960787

BALL

- pin--drag link

1шт.

K960825

NUT

- ball pin

1шт.

15

K960786

BALL

- cup

1шт.

16

K960784

WASHER

- backing

1шт.

17

K961986

SLEEVE

- operating

1шт.

18

K960779

BUSHING

- spacer

1шт.

19

K960773

PIN

- locating

2шт.

K960782

NUT - valve spool

1шт.

K960861

NO LONGER SERVICED

PIN - split, spool nut

1шт.

K960781

WASHER

- hardened, spool

1шт.

20

K961979

VALVE BODY - spool (not supplied separately)

1шт.

21

K961985

COLLAR

- spool

1шт.

22

K961984

SPRING

- reaction

1шт.

23

K962244

WASHER

- reaction (replaces 961983)

2шт.

24

K961982

O-RING

O-RING - spool

1шт.

25

K960768

O-RING

- valve body

1шт.

26

K960770

COVER

- end, valve body

1шт.

27

K960769

O-RING

- end cover

1шт.

28

K960771

NO LONGER SERVICED

CIRCLIP - valve body

1шт.

29

K960806

O-RING

- valve body

1шт.

30

K960765

BALL

- relief valve

1шт.

31

K960766

SPRING

- relief valve

1шт.

32

K961980

PLUG - valve housing

1шт.

33

K961981

RING,0.07" Thk x 0.208" ID, -9, Cl 5, 75 Duro

O-RING - plug

1шт.

34

K961988

TUBE

- outer

1шт.

35

K961989

TUBE

- inner

1шт.

36

K961991

PISTON ROD - anchor ball (not supplied separately)

1шт.

37

K960816

PISTON

1шт.

38

K960817

PISTON

- ring

1шт.

K960819

NUT - piston rod

1шт.

K960818

NO LONGER SERVICED

WASHER - piston rod

1шт.

K960820

PIN

- split, piston nut

1шт.

39

K960803

KIT

- bearing and bush (not supplied separately)

1шт.

40

K960772

NO LONGER SERVICED

O-RING - bearing

1шт.

41

K960807

HOUSING

- locking ring

1шт.

42

K961990

SEAL

- spreader

1шт.

43

K960809

SHAFT SEAL

GLAND - ring

1шт.

44

K960810

SEALING WASHER

- vellumoid washer

1шт.

45

K960811

WASHER

- metal

1шт.

46

K960862

SCRAPER

- ring

1шт.

47

K960863

HOUSING

- scraper ring

1шт.

48

K960814

RING, SNAP

SNAP RING - circlip--bearing housing

1шт.

49

K960864

SEAL

- lip scraper

1шт.

K961993

BALL CUP - anchor housing--inner

1шт.

K961992

BALL - anchor housing--outer

1шт.

K962246

SHIM,.010" Thk

Ball Housing .010" Thk

1шт.

K961996

SHIM,.005" Thk

Ball Housing .005" Thk

1шт.

K961995

SHIM,.0025" Thk

Ball Housing .0025" Thk

1шт.

K960797

NO LONGER SERVICED

NIPPLE - grease, ball housing

1шт.

K961994

COVER - rubber, ball housing

1шт.

K962186

SEAL

- pack (O-rings, washers and gland ring)

1шт.

Выбрано товаров: 68
