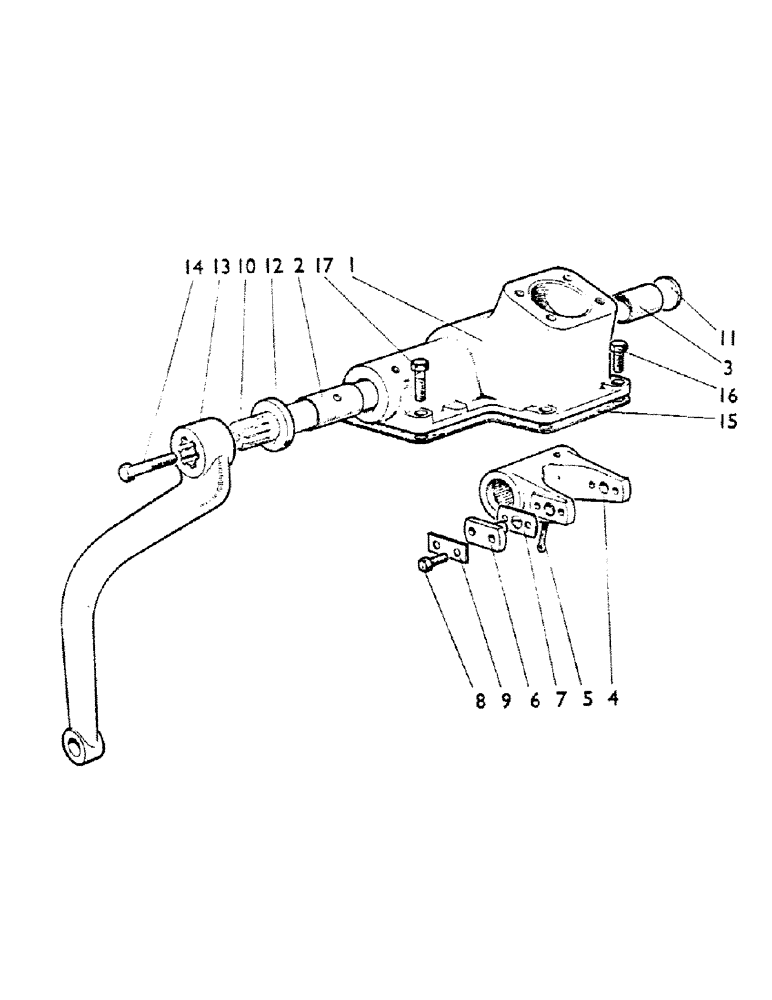

Запчасти Case IH 780 (071) - STEERING BOX AND DROP ARM Steering & Front Axle

1

K920352

NO LONGER SERVICED

STEERING BOX - (with bushes)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

2

K16561

BUSHING

- long drop arm shaft

1шт.

3

K16560

SPARE PART

BUSH - short drop arm shaft

1шт.

4

K905646

NO LONGER SERVICED

ARM - rocker

1шт.

5

K26232

PIN

- split, 3/16 x 2 1/4 in.

1шт.

6

K912108

BALL

- peg

2шт.

8

K602702

SCREW

SETSCREW - 1/4 UNC x 5/8 in.

4шт.

9

K912109

WASHER

TABWASHER

2шт.

10

K913730

SHAFT

- drop arm

1шт.

11

K10050

PLUG

- welch, 1 1/4 in.

1шт.

K15596

RING,3.63mm Thk x 31.34mm ID

O-RING - 1 1/4 in. int. dia.

1шт.

12

K915707

BUSHING

- spacer

1шт.

13

K924970

ARM

- drop (replaces 913729)

1шт.

14

K600808

BOLT

- 1/2 UNC x 2 1/4 in. drop, Serial Range: arm-shaft

1шт.

K910646

WASHER

- special drop, Serial Range: arm-shaft

1шт.

K19484

LOCK WASHER

WASHER - lock, spring, 1/2 in. drop, Serial Range: arm-shaft

1шт.

15

K914138

GASKET

- steering box to gearbox cover

1шт.

16

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Steering box to gearbox cover Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in. steering box to gearbox cover

6шт.

17

K600414

BOLT

- 3/8 UNC x 2 3/4 in. steering box to gearbox cover

2шт.

K622042

RING

- dowel, 7/32 x 1 1/8 in. steering box to gearbox cover

2шт.

K600410

BOLT

- 3/8 UNC x 2 1/4 in. steering box to gearbox cover

2шт.
