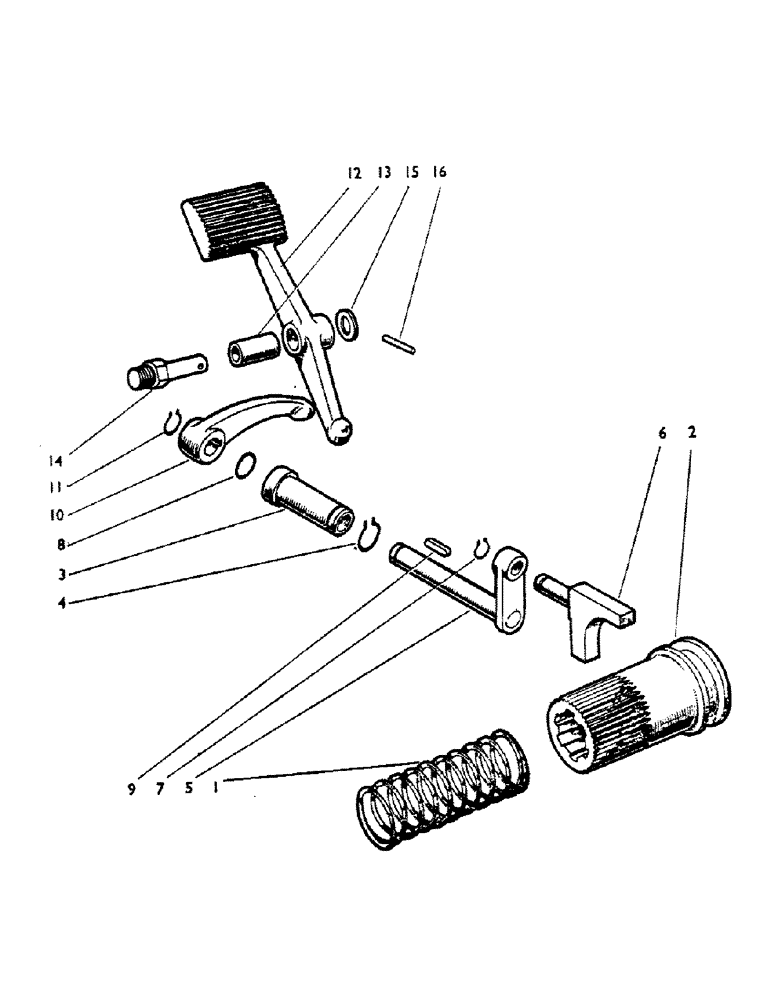

Запчасти Case IH 780 (035) - DIFFERENTIAL LOCK Gearbox

1

K625119

SPRING

- return

1шт.

2

K903191

SLEEVE

- locking

1шт.

3

K903494

BUSHING

- cross shaft

1шт.

4

K34454

RING, SNAP

SNAP RING - circlip, 7/8 in. dia. ext.

1шт.

5

K903197

SHAFT

- cross and arm

1шт.

6

K903226

SELECTOR

- fork

1шт.

7

K11302

RING, SNAP

SNAP RING - circlip, 1/2 in. ext.

1шт.

K626674

WASHER

- 1/2 in., special

1шт.

8

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- 5/8 in. int. dia.

1шт.

9

K622309

KEY

- 3/16 x 5/32 x 3/4 in.

1шт.

10

K903228

LEVER

1шт.

11

K11797

RING, SNAP

SNAP RING - circlip, 5/8 in. ext.

1шт.

12

K903229

PEDAL

1шт.

13

K621346

BUSHING

1шт.

14

K919577

PIN

- pivot, pedal

1шт.

15

K19474

HARDWARE

- washer, 1/2 in.

1шт.

16

K690976

PIN

- spring, 1/8 X 1 in.

1шт.
