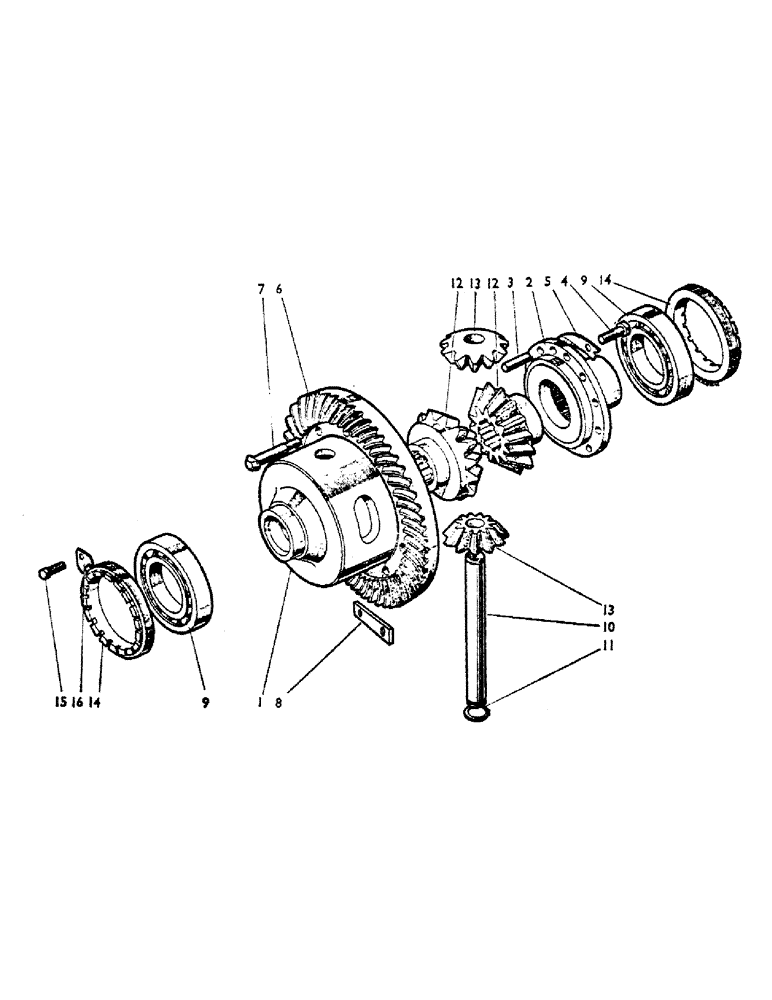

Запчасти Case IH 780 (034) - DIFFERENTIAL Gearbox

1

K908780

HOUSING

- cage

1шт.

2

K903184

FLANGE

- end plate

1шт.

3

K621801

PIN

- dowel, 3/8 x 1 1/8 in.

3шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

9шт.

5

K903185

WASHER

TABWASHER

3шт.

K626372

WASHER

TABWASHER

3шт.

6

K962047

GEAR

- bevel pinion and spiral (7/43 teeth)

1шт.

7

K905664

WHEEL BOLT

- 7/16 UNC, special

12шт.

8

K30236

WASHER

TABWASHER

6шт.

280717

NUT,7/16"-14, G5

12шт.

9

K19010

BALL BEARING

BEARING - ball

2шт.

10

K916863

NO LONGER SERVICED

PIN

1шт.

11

K11128

CIRCLIP

SNAP RING - circlip, 1 in. ext.

2шт.

12

K30234

CONE PINION

PINION - cone, wheel

2шт.

13

K15020

NO LONGER SERVICED

PINION

2шт.

14

K15007

RING, LOCKING

RING - locking, adjuster wheel

2шт.

15

K602801

BOLT (SPREADER)

BOLT - spreader, setscrew, 5/16 UNC x 1/2 in.

2шт.

16

K626420

WASHER

TABWASHER - (replaces 13015)

2шт.
