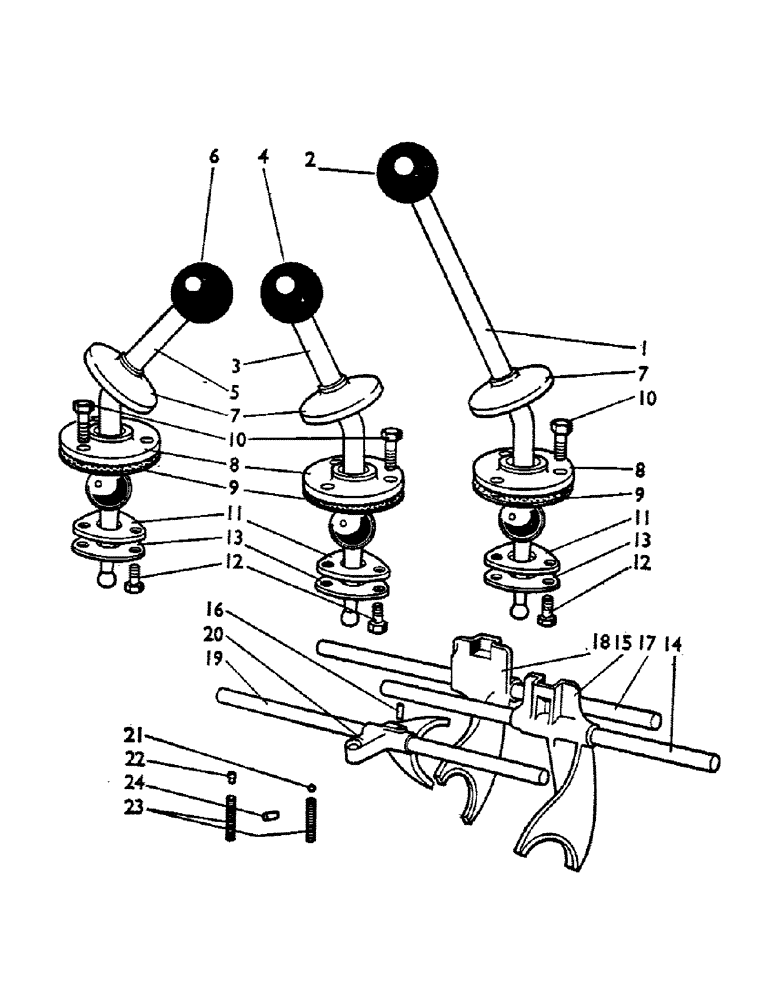

Запчасти Case IH 780 (032) - SELECTOR MECHANISM Gearbox

1

K901686

NO LONGER SERVICED

LEVER - gear (1, 2, 3 and reverse)

1шт.

2

K920787

KNOB

- gear lever

1шт.

3

K929416

CONTROL LEVER

LEVER - control, range (high/low) (replaces 901684)

1шт.

4

K902270

KNOB

- range lever

1шт.

5

K922111

LEVER - gear, 12-speed

1шт.

6

K908572

GEAR

- knob

1шт.

7

K917375

BOOT

- dirt excluder

3шт.

8

K915135

SUPPORT

- ball housing

3шт.

9

K901835

GASKET

3шт.

10

K602705

SCREW

SETSCREW - 1/4 UNC x 1 in.

9шт.

K19480

SPRING WASHER

- spring, 1/4 in.

6шт.

11

K903074

SUPPORT

- plate

3шт.

12

K690456

SCREW

SETSCREW - 3/16 Whit. x 3/8 in.

9шт.

13

K904386

WASHER

TABWASHER

3шт.

14

K30424

SELECTOR

- rod first and reverse 6-speed

1шт.

14

K908387

SELECTOR

- rod first and reverse 12-speed

1шт.

15

K30427

SELECTOR

- fork first and reverse

1шт.

16

K19562

GROOVED PIN,3/16" x 1 1/4", Type A

Pin, Grooved, , Mills, first and reverse 3/16" x 1 1/4", Type A

1шт.

17

K30425

SELECTOR

- rod second and third 6-speed

1шт.

17

K908386

SELECTOR

- rod second and third 12-speed

1шт.

18

K30428

SELECTOR

- fork second and third

1шт.

K19562

GROOVED PIN,3/16" x 1 1/4", Type A

Pin, Grooved, , Mills, second and third 3/16" x 1 1/4", Type A

1шт.

19

K30426

SELECTOR

- rod high and low 6-speed

1шт.

19

K908388

SELECTOR

- rod high and low 12-speed

1шт.

20

K30429

SELECTOR

- fork high and low

1шт.

K19562

GROOVED PIN,3/16" x 1 1/4", Type A

Pin, Grooved, , Mills, high and low 3/16" x 1 1/4", Type A

1шт.

21

K13506

BALL

- selector

2шт.

22

K88736

PLUNGER

- selector

1шт.

23

K13507

SPRING

- selector

3шт.

24

K30430

LOCKING DEVICE

LOCKING-DEVICE - gear

1шт.

K921633

PLATE - blanking gearbox cover 6-speed

1шт.

K901835

GASKET

- gearbox cover 6-speed

1шт.

K602702

SCREW

SETSCREW - 1/4 UNC x 5/8 in. gearbox, 6-speed cover

3шт.

K19480

SPRING WASHER

- spring, 1/4 in. gearbox, 6-speed cover

3шт.
