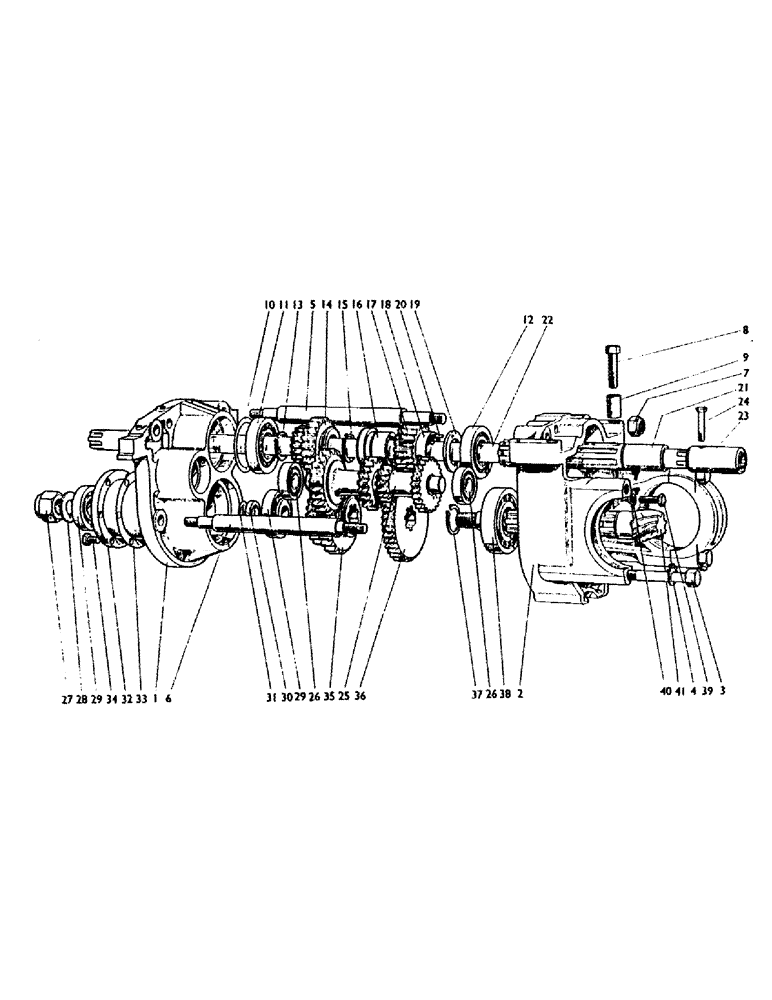

Запчасти Case IH 780 (030) - GEARBOX , SIX-SPEED AND TWELVE-SPEED Gearbox

K962284

GEAR BOX - 6-speed (complete with differential)

1шт.

K962286

GEAR BOX - 12-speed (complete with differential)

1шт.

1

K921747

PLATE

- end -front (supersedes 921579), 6-speed

1шт.

1

K915453

PLATE

- end front 12-speed

1шт.

2

K962276

PLATE - end, rear (complete with bearing caps)

1шт.

3

K601240

BOLT

- 5/8 UNC x 3 1/4 in.

4шт.

4

K626389

BEARING WASHER

SHEET - tabwasher

4шт.

5

K906240

BAR

- spacing -top 6-speed

2шт.

5

K908389

BAR

- spacing top 12-speed

2шт.

6

K906241

BAR

- spacing -bottom 6-speed

2шт.

6

K908390

BAR

- spacing bottom, left-hand 12-speed

1шт.

6

K908391

BAR

- spacing -bottom, right-hand 12-speed

1шт.

7

K607331

NUT

- Nyloc, 5/8 UNC

6шт.

8

K601306

BOLT

- 5/8 UNC x 2 1/2 in., special

2шт.

9

K920656

BUSHING

- bush--end plates

2шт.

10

K88929

SHIM,.003" Thk

6-speed, Driveshaft & gears .003" Thk

1шт.

10

K88930

SHIM,.005" Thk

6-speed, Driveshaft & gears .005" Thk

1шт.

10

K88931

SHIM,.007" Thk

6-speed, Driveshaft & gears .007" Thk

1шт.

10

K921075

SHIM

- .015 in., 6-Speed, driveshaft & gears

1шт.

11

K19081

BALL BEARING

BEARING - ball 6-speed, driveshaft & gears

1шт.

12

K19047

BALL BEARING

BALL - driveshaft & gears

1шт.

13

K12922

RING, SNAP

SNAP RING - circlip, 1 3/4 in., ext. 6-speed, driveshaft & gears

1шт.

14

K902897

NO LONGER SERVICED

PINION - range (19/30 teeth) 6-speed, driveshaft & gears

1шт.

14

K906606

GEAR

- range pinion (19/30 teeth) 12-speed, driveshaft

1шт.

15

K13809

RING, SNAP

SNAP RING - circlip, 45 mm., ext., driveshaft & gears

1шт.

16

K85241

CARRIER

- bush--reverse gear, driveshaft

1шт.

17

K902202

GEAR

- reverse (25 teeth) and bush, driveshaft

1шт.

18

K24773

BUSHING

- large, reverse gear, driveshaft

1шт.

19

K908940

WASHER

- thrust, driveshaft & gears

1шт.

20

K34594

PIN

- driveshaft & gears

1шт.

21

K903455

DRIVE SHAFT

DRIVESHAFT - 6-speed, gears

1шт.

21

K908370

DRIVE SHAFT

DRIVESHAFT - 12-speed, gears

1шт.

22

K921635

SHAFT

- live PTO cardan, driveshaft & gears

1шт.

23

K89181

COUPLING, BREAK AWAY

COUPLING - break away, sleeve, driveshaft & gears

1шт.

24

K600009

BOLT

- 1/4 UNC x 1 7/8 in. (replaces 600141), driveshaft & gears

1шт.

K607440

NUT

- Cleveloc, 1/4 UNC (replaces 607100), driveshaft & gears

1шт.

25

K914700

SHAFT

- lay with integral gears

1шт.

K914702

SHIM,50.8mm ID x 67.06mm OD x 0.05mm Thk

Layshaft .002" Thk

1шт.

K914703

SHIM,.003" Thk

Layshaft .003" Thk

1шт.

K914704

SHIM,50.8mm ID x 67.06mm OD x 0.18mm Thk

Layshaft .007" Thk

1шт.

K914705

SHIM,50.8mm ID x 67.06mm OD x 0.25mm Thk

Layshaft .010" Thk

1шт.

26

K620076

BEARING, ROLLER

BEARING - taper roller, layshaft

2шт.

27

K84912

NUT

- Nyloc, 1 1/8 BSF, left-hand, bevel pinion shaft

1шт.

28

K14687

WASHER

- 1 1/8 in., bevel pinion shaft

1шт.

29

K24546

BEARING, ROLLER

BEARING - roller, taper, bevel pinion shaft

2шт.

30

K81984

BUSHING

- distance piece, bevel pinion shaft

1шт.

31

K81985

SHIM,.002" Thk

Bevel pinion shaft .002" Thk

1шт.

31

K81986

SHIM,.003" Thk

Bevel pinion shaft .003" Thk

1шт.

31

K81987

SHIM,.005" Thk

Bevel pinion shaft .005" Thk

1шт.

31

K915701

SHIM

- .010 in., bevel pinion shaft

1шт.

32

K905677

BEARING

- housing 6-speed, bevel pinion shaft

1шт.

32

K908380

BEARING

- housing 12-speed, bevel pinion shaft

1шт.

33

K30449

SHIM

- Sets: .003 in. (3), .005 in. (1), .015 in. (1), .030 in., bevel pinion shaft

1шт.

34

K602906

SCREW

- set, 3/8 UNC x 1 1/4 in. 6-speed, bevel pinion shaft

6шт.

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12-speed, Bevel pinion shaft Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in., bevel pinion shaft

6шт.

35

K902899

NO LONGER SERVICED

GEAR - driven, high and medium (31/40 teeth), bevel pinion shaft

1шт.

36

K901635

NO LONGER SERVICED

GEAR - driven, low (47 teeth), bevel pinion shaft

1шт.

37

K621438

RING, SNAP

SNAP RING - circlip, 1 7/8 in., ext., bevel pinion shaft

1шт.

38

K19138

BEARING, ROLLER

BEARING - roller, bevel pinion shaft

1шт.

39

K600007

BOLT

- 1/4 UNC x 1 5/8 in., bevel pinion shaft

1шт.

K607325

NUT

- Nyloc, 1/4 UNC, bevel pinion shaft

1шт.

40

K929086

WASHER

- special, 1/4 in. (replaces 64852), bevel pinion shaft

2шт.

41

K962047

GEAR

- bevel pinion and spiral (7/43 teeth), shaft

1шт.

K908499

BUSHING

- distance piece--bevel pinion 12-speed, shaft

1шт.
