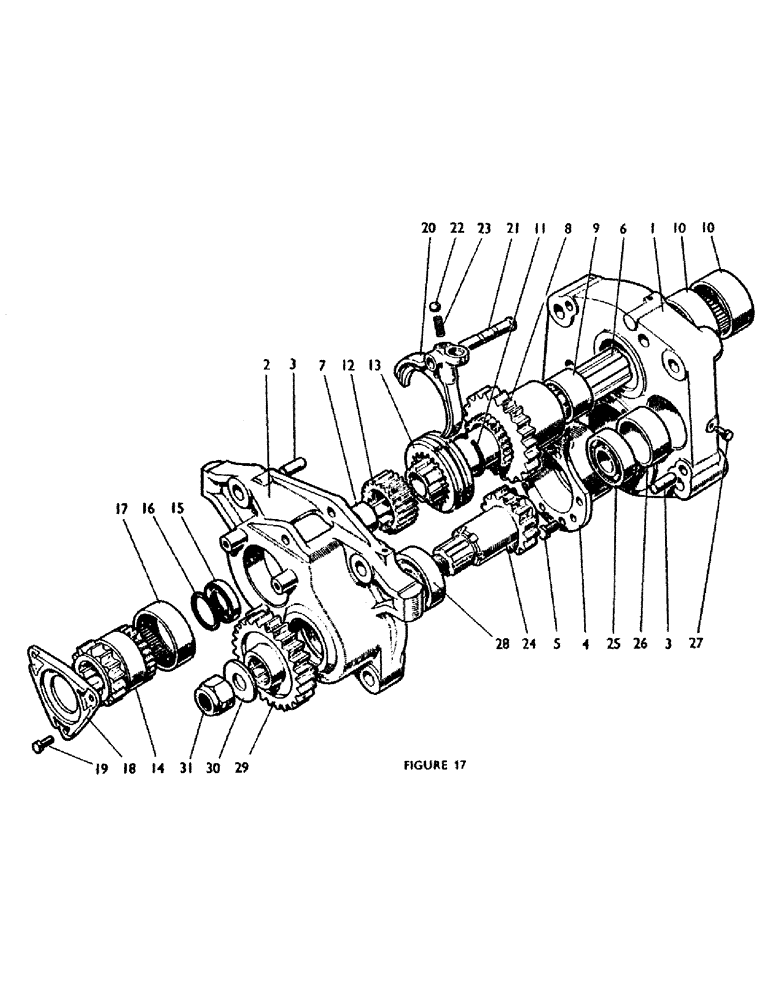

Запчасти Case IH 780 (028) - TWELVE-SPEED GEARBOX, OPTIONAL EQUIPMENT Gearbox

1

K915453

PLATE

- end, gearbox

1шт.

2

K921748

LARGE PLATE

PLATE - large, housing--end (supersedes 921580)

1шт.

3

K11985

PIN

- dowel, 1/2 x 1 7/16 in.

2шт.

4

K908380

BEARING

- housing

1шт.

5

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in.

6шт.

6

K908370

DRIVE SHAFT

DRIVESHAFT - gearbox

1шт.

7

K24774

BUSHING

1шт.

8

K908531

GEAR

- driven, gearbox driveshaft

1шт.

K908946

WASHER

- bronze thrust, rear

1шт.

9

K620053

BEARING

- needle roller

1шт.

10

K620052

BEARING

- needle roller

2шт.

11

K13809

RING, SNAP

SNAP RING - circlip, 45 mm., ext.

1шт.

12

K908944

CLUTCH

- fixed dog

1шт.

13

K908367

CLUTCH

- sliding dog

1шт.

14

K908532

GEAR

- driving, clutch shaft

1шт.

K929217

WASHER

- bronze thrust, .125 in.--front alternatives, replaces 908947

1шт.

K929559

NO LONGER SERVICED

WASHER - bronze thrust, .150 in.--front alternatives

1шт.

K929419

SPARE PART

WASHER - bronze thrust, .170 in.--front alternatives

1шт.

15

K15176

OIL SEAL

- oil

1шт.

16

K623546

O-RING

- 1 1/2 in. int. dia., special

1шт.

17

K620052

BEARING

- needle roller

1шт.

18

K908343

PLATE

- end

1шт.

19

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW - 5/16 UNC x 7/8 in.

3шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in.

3шт.

20

K908338

SELECTOR

- fork

1шт.

21

K908385

SELECTOR

- rod

1шт.

22

K929016

SELECTOR

- plunger (replaces 13506)

1шт.

23

K13507

SPRING

1шт.

24

K915463

SHAFT

LAYSHAFT

1шт.

25

K620076

BEARING, ROLLER

BEARING - roller, taper

1шт.

26

K915465

BUSHING

- distance piece

1шт.

27

K915466

SCREW

- locating, 1/2 UNC

1шт.

K19484

LOCK WASHER

WASHER - lock, spring, 1/2 in.

1шт.

28

K620046

BEARING

- taper roller

1шт.

29

K915464

GEAR

- layshaft

1шт.

30

K15599

WASHER

- 7/8 in., special

1шт.

31

K24875

NUT

- Nyloc, 7/8 BSF

1шт.
