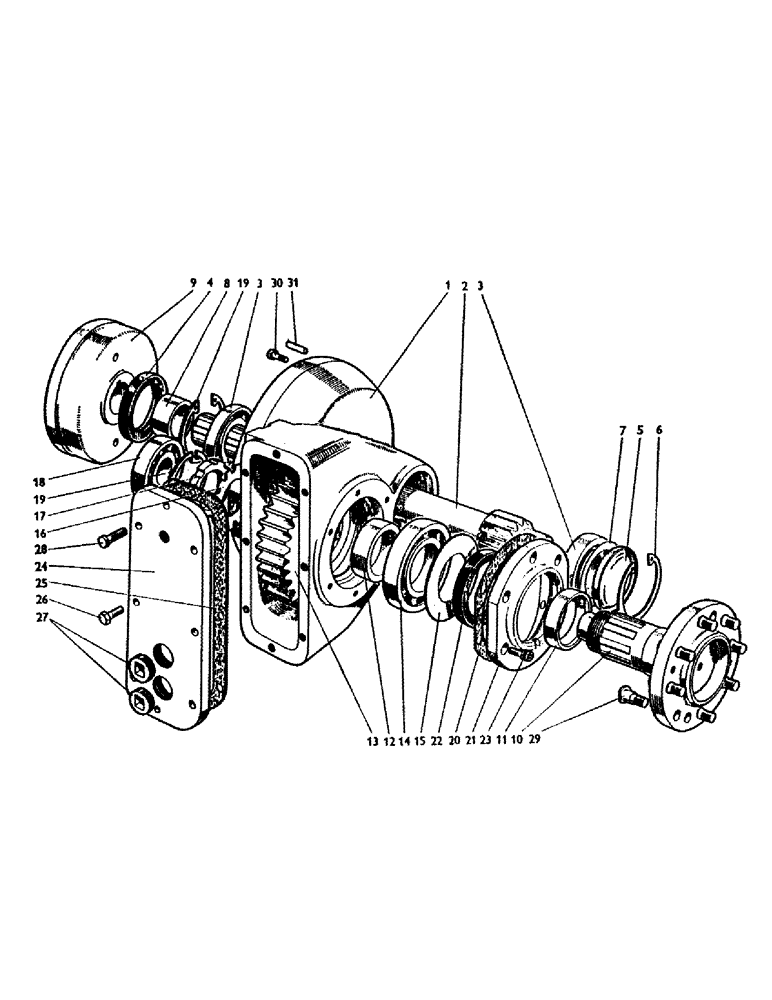

Запчасти Case IH 780 (036) - FINAL DRIVE REDUCTIONS Final Drive Reductions

K916245

SPARE PART

DRIVE - final reduction (complete) (supersedes 921760)

2шт.

1

K921587

GEAR CASE

2шт.

2

K907404

PINION

- shaft

2шт.

3

K19145

BEARING

- ball

4шт.

4

K13349

OIL SEAL

- oil, 2 1/2 x 3 3/4 x 1/2 in.

2шт.

5

K62534

COVER

- end

2шт.

6

K16296

RING

- circlip, 3 3/4 in.--internal

2шт.

8

K907480

BUSHING

- collar (supersedes 907470)

2шт.

K15533

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- 1 3/4 in. int. dia.--collar

2шт.

9

K905641

BRAKE

- drum

2шт.

K19615

KEY

- 11/32 x 1/2 x 2 in.

2шт.

10

K905285

NO LONGER SERVICED

DRIVESHAFT - final

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF--Final driveshaft 1/4"-28 NPT x .54" lg

2шт.

11

K905287

SPLIT COLLAR

BUSHING - collar

2шт.

12

K13366

SLEEVE

2шт.

13

K61771

WHEEL

- spur

2шт.

14

K19004

BEARING

- ball

2шт.

15

K905299

BAFFLE

- oil

2шт.

16

K13367

WASHER

TABWASHER

2шт.

17

K13368

NUT

- ring, 2 1/4 in., special

2шт.

18

K19096

ROLLER BEARING

- roller

2шт.

19

K16296

RING

- circlip, 3 3/4 in. int.--bearing retaining (supersedes 13348)

4шт.

20

K67383

GASKET

2шт.

21

K905286

HOUSING

- oil seal

2шт.

22

K15550

OIL SEAL,80.95mm ID x 108.08mm OD x 15.88mm Thk

- oil, 3 1/4 x 4 1/4 x 5/8 in.

2шт.

23

K606894

SCREW

CAPSCREW - Wedglock, 7/16 UNC

12шт.

24

K921755

COVER

2шт.

25

K923220

GASKET

- (replaces 30806)

2шт.

26

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1 in. cover to reduction case

16шт.

K19481

SPRING WASHER

WASHER - lock, spring, 5/16 in. cover to reduction case

16шт.

27

K12362

PLUG

- taper, 1 in. BSP

4шт.

28

K907203

PLUG

- vent, 1/2 UNC

2шт.

K19501

WASHER

WASHER - sealing, 1/2 in.

2шт.

29

K611266

BOLT

- 5/8 UNF x 2 1/8 in., special wheel fixing

16шт.

K617171

WHEEL NUT

- 5/8 UNF, special wheel fixing

16шт.

30

K603107

BOLT,1/2" x 1 3/8"

- bolt, 1/2 UNC x 1 5/8 in. reductions to rear axle case

20шт.

K19484

LOCK WASHER

WASHER - lock, spring, 1/2 in. reductions to rear axle case

20шт.

31

K11482

PIN

- dowel, 7/16 x 1 1/4 in.

4шт.

K627935

PLUG

- plastic, 1/2 in. dia.--stabiliser holes

12шт.

K628075

PLUG

- plastic, 1/2 in. dia.

2шт.
