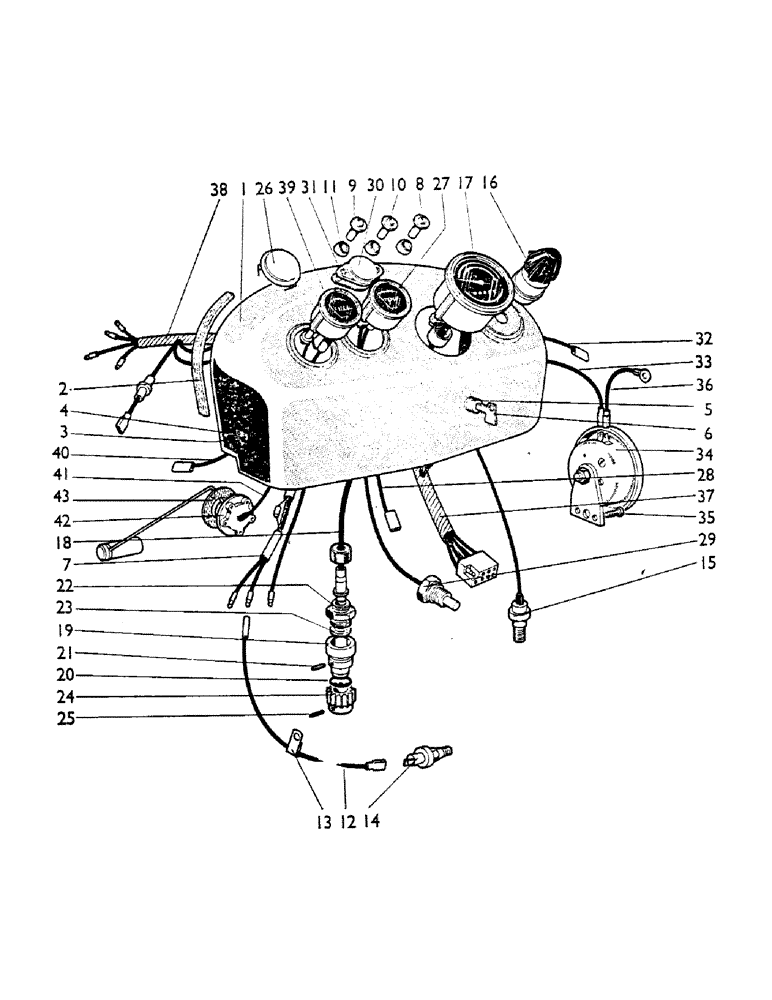

Запчасти Case IH 780 (064) - INSTRUMENTS AND PANEL Engine Controls & Instruments

1

K962594

PANEL

- instrument 603808 onward

1шт.

1

K920917

NO LONGER SERVICED

PANEL - instrument, Serial Range: 600001-603807

1шт.

2

K913391

STRIP

- seating

3шт.

3

K624583

NUT

- captive, No. 10 UNF (replaces 624581)

4шт.

4

K614943

SCREW

- No. 10 UNF x 3/8 in. (replaces 624714)

4шт.

K626572

WASHER

- Seloc, 3/16 in.

4шт.

5

K920923

IGNITION SWITCH

SWITCH - ignition, isolating and starter

1шт.

6

K962338

KEY

KEY - (Yale type) (replaces 920929)

1шт.

K920930

NUT

- switch retaining

1шт.

K920931

WASHER

- spring, 3/4 in.

1шт.

7

K921439

HARNESS

- wiring, oil filter warning light

1шт.

8

K917370

PROTECTIVE COVER

COVER - protective, warning light--dynamo charge

1шт.

9

K917371

SIGHTGLASS

COVER - protective, warning light--oil pressure

1шт.

10

K921367

SIGHTGLASS

- warning light--oil filter

1шт.

BULB - 12 volt, 2 watt, MBC

3шт.

11

K919304

GUARD

- hood--warning lights

3шт.

12

K923723

NO LONGER SERVICED

LEAD -, Serial Range: switch-connector

1шт.

K923724

ELECTRICAL WIRE

WIRE -, Serial Range: lead--connector-lamp

1шт.

K67916

ELEC CONNECTOR

CONNECTOR

1шт.

13

K621665

CLIP

- lead to PTO flange

3шт.

14

K921317

SENDER UNIT

SWITCH - oil filter warning light

1шт.

K923874

COVER

- (supersedes 915148)

1шт.

15

K903851

PRESSURE SWITCH

CONNECTION - electric, switch--oil warning light

1шт.

K915148

NO LONGER SERVICED

COVER - oil warning switch

1шт.

16

K912388

IGNITION SWITCH

SWITCH - ignition, lighting (Lucas 54033351) 5-position

1шт.

K901982

PLATE

- escutcheon 912388

1шт.

16

K902464

SWITCH

- lighting (Lucas 54033370) 4-position

1шт.

K901981

KNOB

- 912388 and 902464

1шт.

K14658

O-RING,0.07" Thk x 0.239" ID

- 1/4 in. int. dia.

1шт.

17

K924339

SPEEDOMETER

- engine speed indicator

1шт.

18

K924771

CABLE

- inner and outer (36 1/2 in.)

1шт.

K962385

NO LONGER SERVICED

CABLE - inner (37 5/8 in.)

1шт.

K907090

NO LONGER SERVICED

TRACTORMETER - (MPH)

1шт.

K907089

SPARE PART

TRACTORMETER - (KPH)

1шт.

K925101

ELECTRICAL GAUGE

GAUGE - electrical, speedometer--highway tractors U1225 (922487)

1шт.

K921385

FLEXIBLE DRIVE SHAFT

SHAFT - flexible drive, cable, inner and outer (33 1/2 in.)

1шт.

K962058

CABLE

- inner (34 19/32 in.)--AC-Delco

1шт.

19

K908181

HOUSING

1шт.

20

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

- 3/4 in. int. dia.

1шт.

21

K908184

SCREW

- locating, 5/16 UNC

1шт.

K607081

LOCK NUT

LOCKNUT - 5/16 UNC (replaces 607051)

1шт.

22

K620008

ADAPTER

1шт.

K19502

WASHER

- fibre, 7/8 in.

1шт.

23

K908182

DRIVE

SHAFT

1шт.

24

K908183

DRIVE

SHAFT - gear

1шт.

25

K623933

SPRING

- pin, 1/8 x 5/8 in.

1шт.

26

K903487

PLATE - blanking, instrument panel

1шт.

27

K921148

ELECTRICAL GAUGE

GAUGE - electrical, temperature U1005 (918290) (thermometer)

1шт.

28

K921128

ELECTRICAL WIRE

WIRE - lead--gauge to connector U1005 (918290) (thermometer)

1шт.

29

K921149

TEMPERATURE SENDER

GAUGE - electrical, sender U1005 (918290) (thermometer)

1шт.

K626444

WASHER

- copper, 5/8 in. U1005 (918290) (thermometer)

1шт.

30

K928180

SWITCH

- horn push (replaces 19911) U1006 (918291) (electric horn)

1шт.

31

K928150

BOOT

- seating pad horn push to instrument panel, U1006 (918291) (electric horn) (replaces 908047)

1шт.

K928149

WASHER

- 3/4 in. horn push to instrument panel, U1006 (918291) (electric horn) (replaces 624718)

1шт.

K928148

SPRING

- washer, 3/4 in. horn push to instrument panel, U1006 (918291) (electric horn) (replaces 19487)

1шт.

K928147

NUT - 3/4 UNF horn push to instrument panel, U1006 (918291) (electric horn) (replaces 19419)

1шт.

32

K921128

ELECTRICAL WIRE

WIRE - lead--horn push to connector, U1006 (918291) (electric horn) (replaces 919292)

1шт.

33

K920916

SPARE PART

LEAD - horn push to horn U1006 (918291) (electric horn)

1шт.

34

K907861

NO LONGER SERVICED

HORN - bracket U1006 (918291) (electric horn)

1шт.

35

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SETSCREW - 1/4 UNC x 1/2 in. bracket to fuel tank support--front, U1006 (918291) (electric horn) (replaces 603924)

2шт.

K607043

NUT

- 1/4 UNC bracket to fuel tank support--front, U1006 (918291) (electric horn)

2шт.

K626341

SPRING WASHER

WASHER - lock, spring, 1/4 in. bracket to fuel tank support--front, U1006 (918291) (electric horn)

2шт.

36

K908902

WIRE

LEAD - horn to earth U1006 (918291) (electric horn)

1шт.

37

K920912

HARNESS

- wiring, 8-way connector to instrument panel

1шт.

K621609

CLIP

- harness to regulator bracket (replaces 621629)

1шт.

38

K920913

HARNESS

- wiring, instrument panel

1шт.

K904459

FUSE

- 26 amp.

1шт.

39

K921147

ELECTRICAL GAUGE

GAUGE - electrical, fuel

1шт.

40

K921128

ELECTRICAL WIRE

WIRE -, Serial Range: lead--gauge-connector

1шт.

41

K920914

ELECTRICAL WIRE

WIRE - lead--gauge to tank unit

1шт.

42

K916635

SENDER UNIT

- tank

1шт.

43

K916485

GASKET

1шт.

K617080

NUT

- No. 10 UNF

5шт.

K626340

RING

- spring washer, 3/16 in

5шт.
