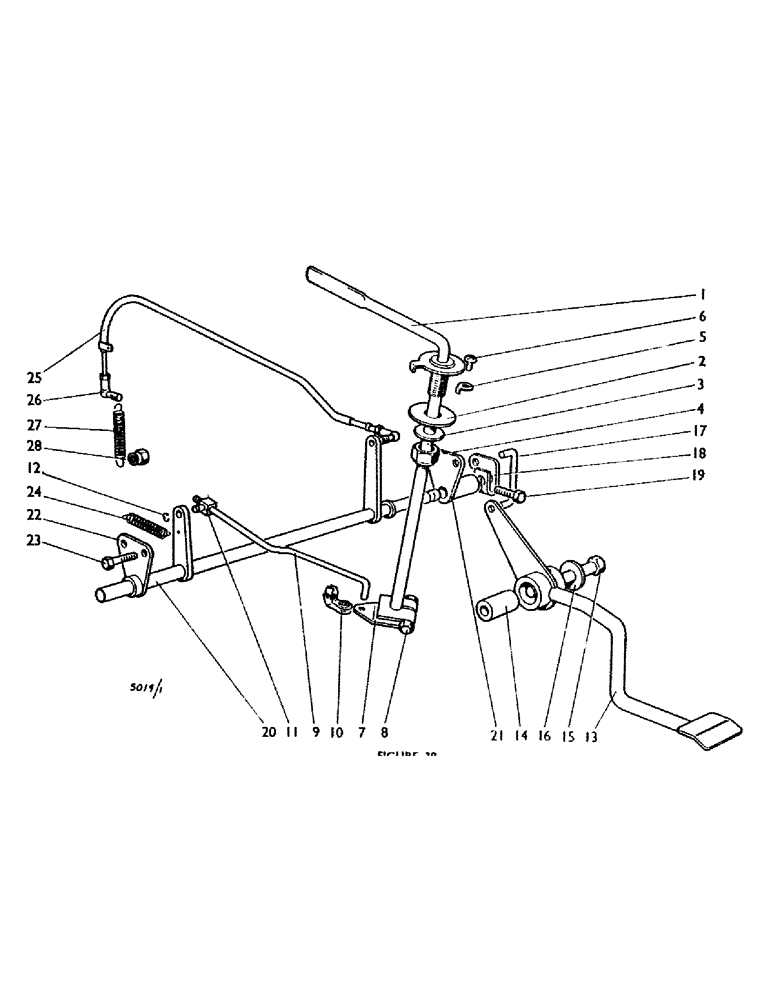

Запчасти Case IH 780 (062) - FOOT THROTTLE CONTROL, U627, OPTIONAL EQUIPMENT Engine Controls & Instruments

1

K913384

LEVER

- hand

1шт.

2

K85546

DISC

- friction

1шт.

3

K626740

WASHER

- Belleville

1шт.

K19475

WASHER

- 5/8 in.

1шт.

4

K623003

NUT

- Nyloc, 5/8 BSF

1шт.

5

K910157

WASHER

- stop pad

2шт.

6

K605633

SCREW

- 1/4 UNC x 1/2 in. (replaces 603924)

2шт.

K607043

NUT

- 1/4 UNC

2шт.

K626341

SPRING WASHER

WASHER - lock, spring, 1/4 in.

2шт.

7

K900025

LEVER

1шт.

8

K600144

BOLT

- 1/4 UNC x 1 3/8 in. (replaces 600005)

1шт.

K607000

NUT

- 1/4 UNC

1шт.

K19480

SPRING WASHER

- spring, 1/4 in.

1шт.

9

K914666

ROD

- lever to cross shaft

1шт.

10

K908778

CLIP

- special

1шт.

11

K900024

PIN

- pivot

1шт.

12

K621583

RING, SNAP

SNAP RING - 'E' clip, 1/4 in.

1шт.

K607000

NUT

- 1/4 UNC

1шт.

425-144

JAM NUT,Jam, 1/4"-20, G5

LOCKNUT - 1/4 UNC

1шт.

13

K926587

NO LONGER SERVICED

PEDAL - accelerator (replaces 915412)

1шт.

K620500

BOLT

- 1/4 BSF x 1 1/8 in.--pedal stop

1шт.

K19440

NUT

LOCKNUT - 1/4 BSF

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

K626440

WASHER

- copper, 1/4 in.

1шт.

14

K900016

CLUTCH

- extension, cross shaft

1шт.

15

K600417

BOLT

- 3/8 UNC x 3 1/4 in.

1шт.

16

K88751

WASHER

- special

1шт.

K19482

SPRING WASHER

WASHER - lock, spring, 3/8 in.

1шт.

17

K915416

ROD

- pedal to cross shaft

1шт.

10

K908778

CLIP

- special

2шт.

18

K915417

LEVER

- cross shaft

1шт.

19

K602739

SCREW

SETSCREW - 1/4 UNC x 1 1/8 in. (replaces 602737)

1шт.

K19470

WASHER

- 1/4 in.

1шт.

K626341

SPRING WASHER

WASHER - lock, spring, 1/4 in.

1шт.

K607043

NUT

- 1/4 UNC (replaces 607000)

1шт.

20

K925193

SHAFT

- cross (supersedes 914661)

1шт.

21

K917149

BRACKET

- support, right-hand

1шт.

22

K914667

BRACKET

- support, left-hand

1шт.

23

K602702

SCREW

SETSCREW - 1/4 UNC x 5/8 in. (replaces 602733)

4шт.

K607000

NUT

- 1/4 UNC (replaces 607043)

4шт.

K19480

SPRING WASHER

- spring, 1/4 in. (replaces 626341)

4шт.

24

K624926

SPRING

- return

1шт.

25

K923230

CABLE

- inner and outer (throttle control), replaces 914665

1шт.

120614

NUT,Hex, #10 - 32

NUT - No. 10 UNF

2шт.

26

K621900

UNIVERSAL JOINT

- ball

2шт.

K19401

NUT

- 1/4 BSF

2шт.

K19480

SPRING WASHER

- spring, 1/4 in.

2шт.

27

K624938

SPRING

- return (replaces 624938)

1шт.

28

K617500

NUT

- spring anchor

1шт.
