Запчасти Case IH 780 (061) - HAND THROTTLE AND STOP CONTROL Engine Controls & Instruments

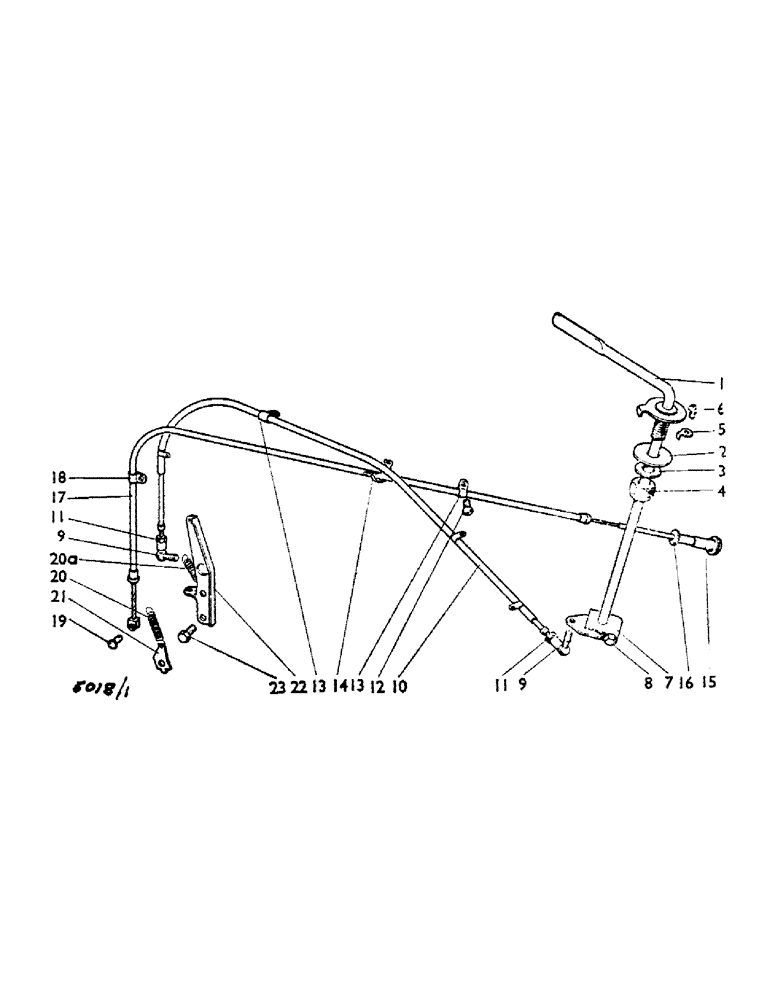

Схема запчастей Case IH 780 - (061) - HAND THROTTLE AND STOP CONTROL Engine Controls & Instruments
8
17
15
9
12
14
5
20
10
20a
7
4
19
11
16
13
3
11
9
21
13
2
1
23
22
18
6

Артикул

Название

Примечание

Количество

1

K913384

LEVER

- hand

1шт.

2

K85546

DISC

- friction

1шт.

3

K626740

WASHER

- Belleville

1шт.

K19475

WASHER

- 5/8 in.

1шт.

4

K623003

NUT

- Nyloc, 5/8 BSF

1шт.

5

K910157

WASHER

- stop pad

2шт.

6

K605633

SCREW

SETSCREW - 1/4 UNC x 1/2 in. (replaces 603924)

2шт.

K607043

NUT

- 1/4 UNC

2шт.

K626341

SPRING WASHER

WASHER - lock, spring, 1/4 in.

2шт.

7

K89372

LEVER

- (replaces 89255)

1шт.

8

K600144

BOLT

- 1/4 UNC x 1 3/8 in. (replaces 600005)

1шт.

K607000

NUT

- 1/4 UNC

1шт.

K19480

SPRING WASHER

- spring, 1/4 in.

1шт.

K19470

WASHER

- 1/4 in.

1шт.

9

K621900

UNIVERSAL JOINT

- ball

2шт.

K19401

NUT

- 1/4 BSF

2шт.

K19480

SPRING WASHER

- spring, 1/4 in.

2шт.

10

K923229

BOWDEN CONTROL

- cable--inner and outer (throttle control), replaces 913386

1шт.

11

K617080

NUT

- No. 10 UNF (replaces 617049)

2шт.

12

K12189

SCREW

- 2 BA x 1/2 in.

1шт.

K11109

NUT

- 2 BA

1шт.

K19488

SPRING WASHER

- spring, 3/16 in.

1шт.

13

K621638

CLIP

1шт.

425-154

JAM NUT,Jam, 1/4"-28, G5

LOCKNUT - 1/4 UNF

1шт.

14

K621672

HOSE CLAMP

CLAMP - hose, buckle clip (replaces 621637)

4шт.

15

K916844

KNOB

- engine stop

1шт.

16

K12939

WASHER

- 3/16 in., special

1шт.

K617080

NUT

- No. 10 UNF (replaces 617049)

1шт.

17

K918845

CABLE

- inner and outer (stop control)

1шт.

18

K621690

CLIP

- cable to tank support (replaces 621638)

1шт.

K19480

SPRING WASHER

- spring, 1/4 in. cable to tank support

1шт.

K607043

NUT

- 1/4 UNC cable to tank support

1шт.

K602735

SCREW

SETSCREW - 1/4 UNC x 3/4 in. cable to tank support

1шт.

86632558

JAM NUT,Jam, 1/2"-13, G5

NUT - 1/4 UNC cable to tank support

1шт.

19

K913180

PIN

- large, pump lever

1шт.

20

K624938

SPRING

- return, engine stop

1шт.

20a

K624938

SPRING

- return, throttle control (replaces 624920)

1шт.

21

K913184

ANCHOR

1шт.

K19471

WASHER

- 5/16 in.

1шт.

22

K918844

BRACKET

1шт.

23

K612700

SET SCREW,1/4" - 28 x 3/8"

SETSCREW - 1/4 UNF x 3/8 in.

2шт.

K19480

SPRING WASHER

- spring, 1/4 in.

2шт.

K617500

NUT

- spring anchor

1шт.

Выбрано товаров: 43
